ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module

Description

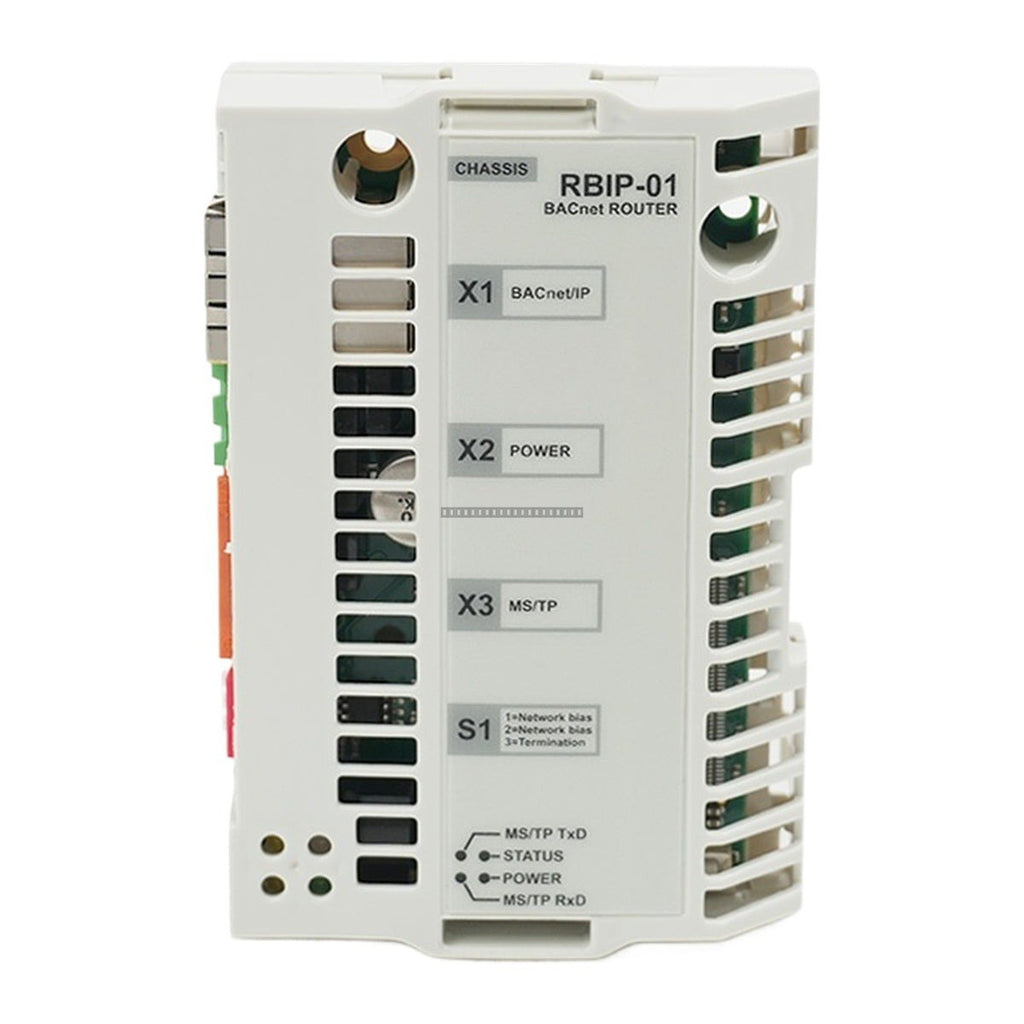

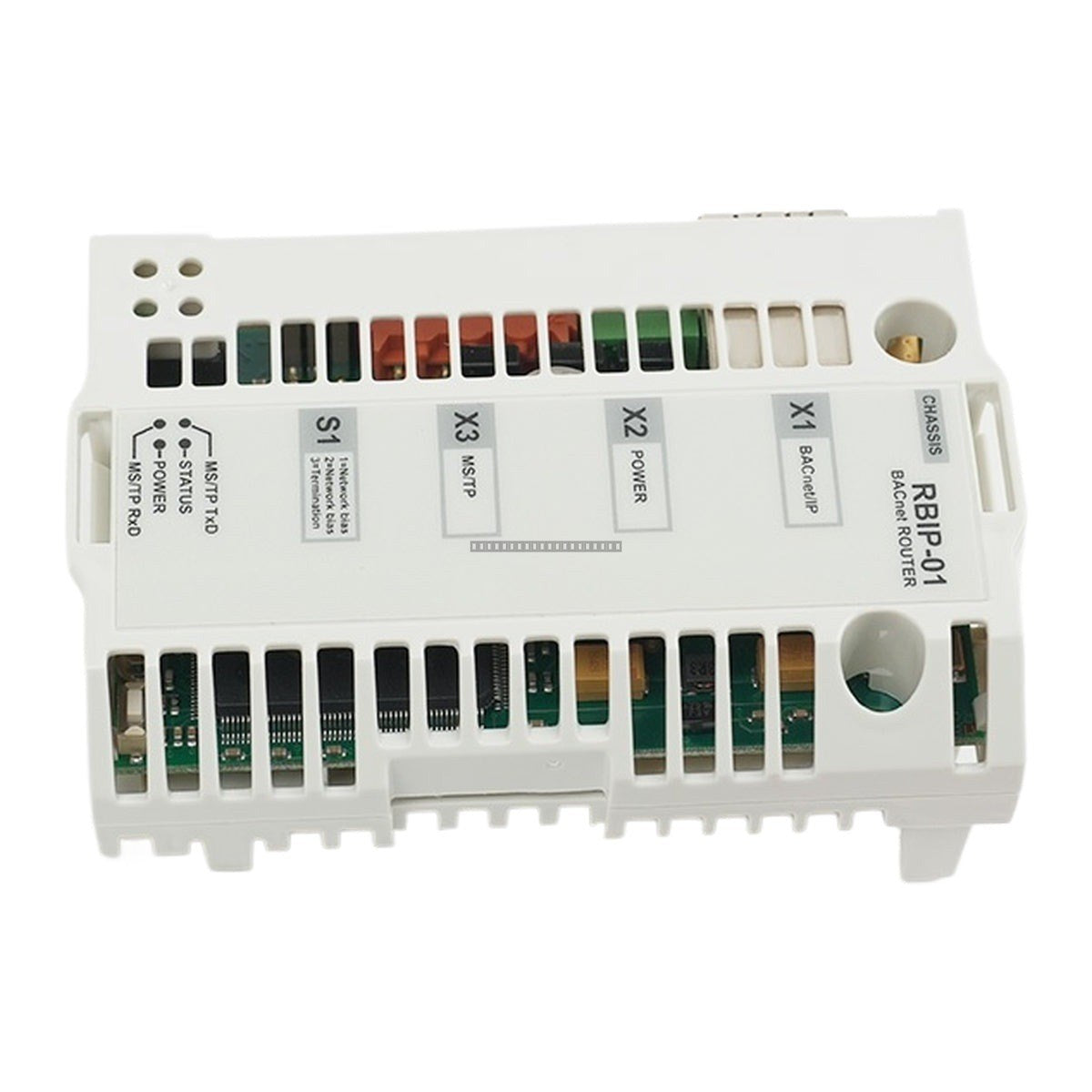

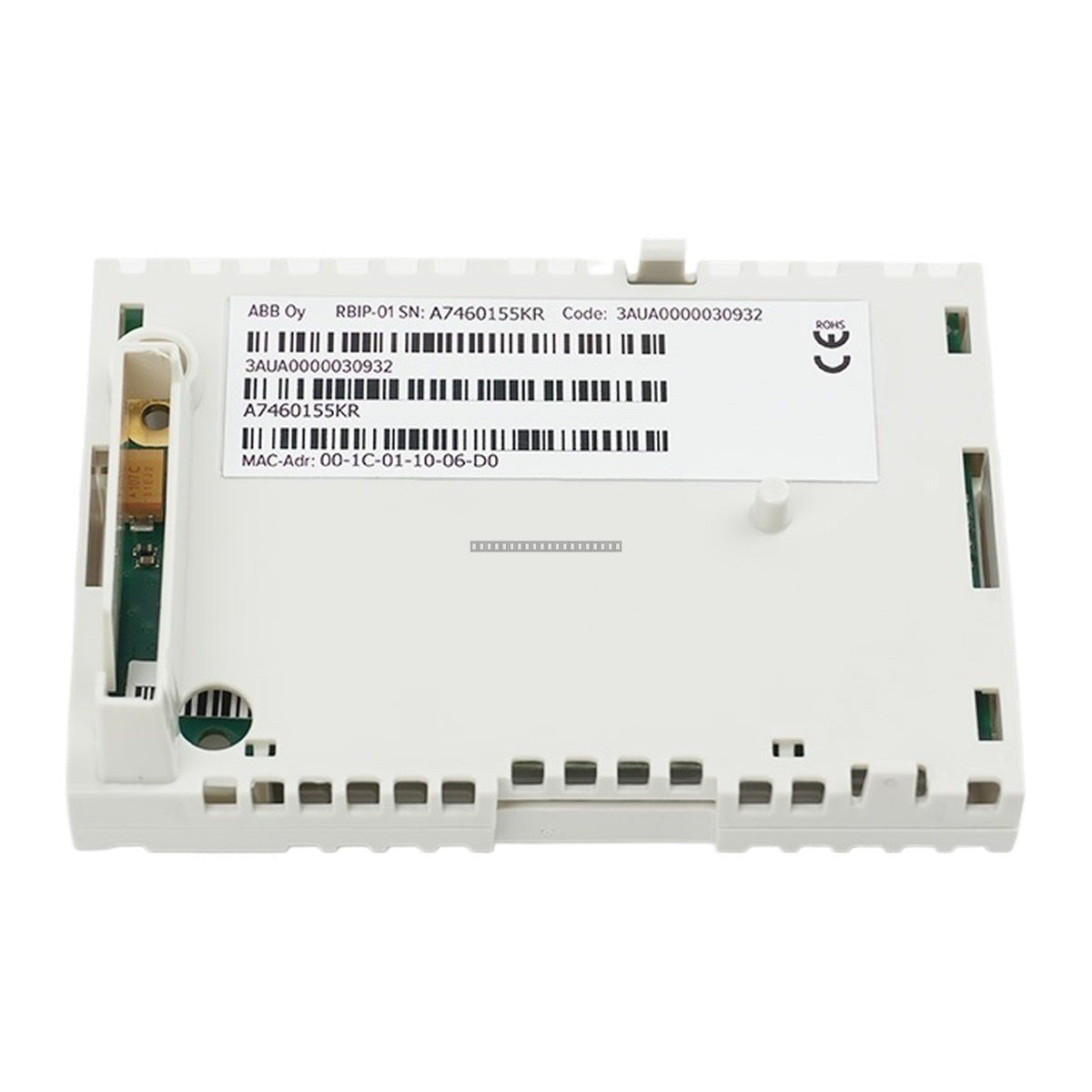

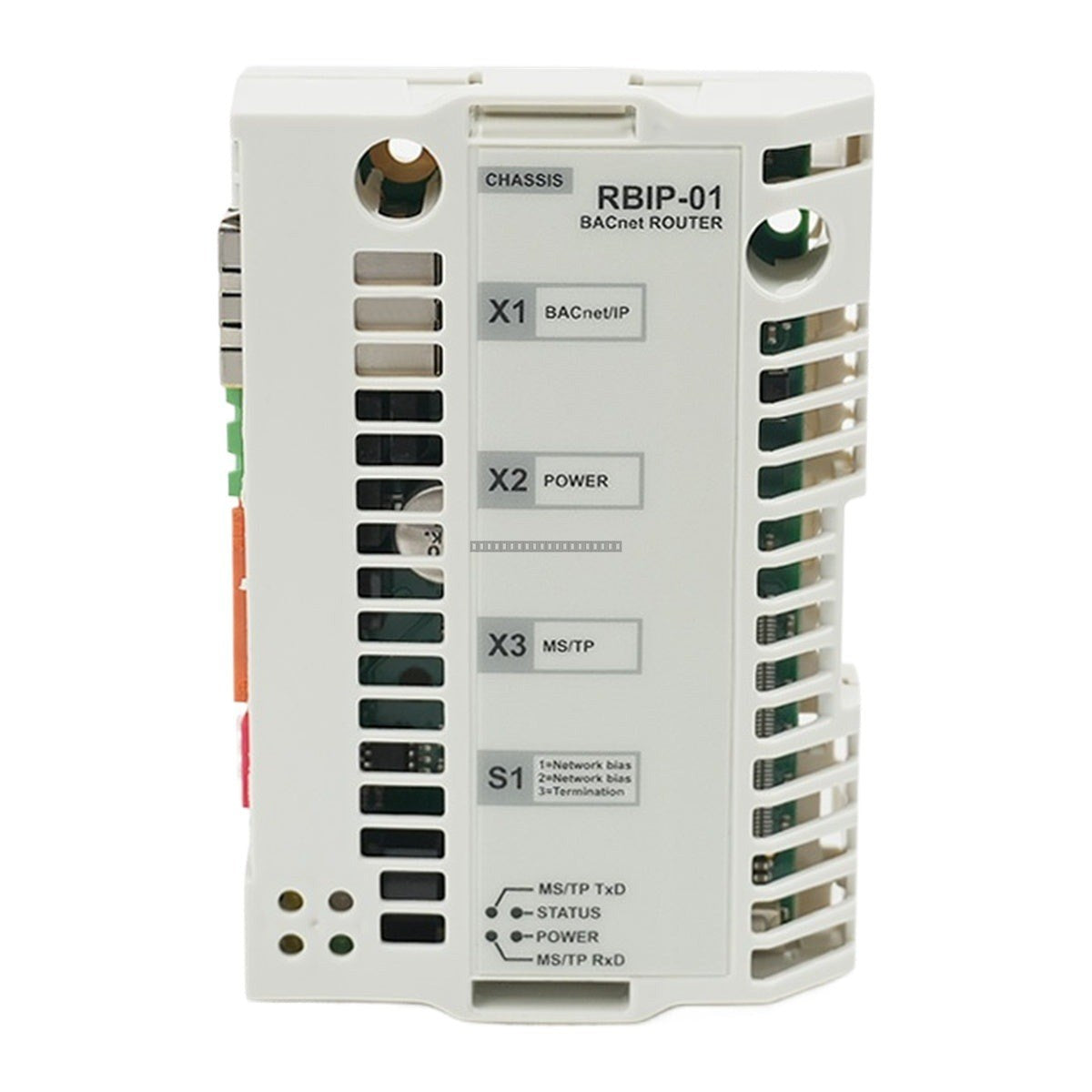

The ABB RBIP-01 (3AUA0000030932) is a high-performance BACnet/IP Router Module designed to provide seamless connectivity for ABB ACH550 HVAC drives. This module functions as a bridge between BACnet/IP (Ethernet) and BACnet MS/TP (RS-485) networks, allowing building management systems to monitor and control drive parameters without the need for external gateways. It is a snap-on module that installs directly into the drive housing, offering a compact and integrated communication solution.

Features

• Designed for ABB ACH550 HVAC drive series
• Supports BACnet/IP to BACnet MS/TP routing
• Integrated web server for configuration and diagnostics
• 10/100 Mbps Ethernet transfer rate
• EIA-485 serial port for MS/TP communication
• Snap-on mounting for internal drive installation

Applications

• Air Handling Units (AHUs): Fan speed control and ventilation management
• Pumping Stations: Fluid movement control and energy monitoring
• Compressors and Chillers: HVAC refrigeration cycle management
• Industrial Automation: Integration of frequency converters into larger building management systems

Technical Specifications

Installation Guidelines

• Safety Warning: Always switch off mains power and wait at least 5 minutes for the drive's intermediate circuit capacitors to discharge before installing or removing the module.
• Mounting: The module is designed for snap-on installation inside the compatible ABB drive. Ensure the module is firmly seated in the designated slot.
• Wiring: Use the provided 2-pin connector for power supply and the 4-pin connector for EIA-485 (B+, A-, AGND, Shield) connections.
• Configuration: Use the internal web server via a standard web browser to configure IP addresses and routing parameters (BBMD or Foreign Device).
• Status Indicators: Solid green indicates correct power; Ethernet link/activity is indicated by flashing or solid green on the RJ-45 port.

FAQs

What is the primary function of the RBIP-01?

The RBIP-01 acts as a BACnet router, enabling communication between Ethernet-based BACnet/IP networks and serial-based BACnet MS/TP networks for ABB ACH550 drives.

Is this module compatible with older ACH550 drives?

Yes, the RBIP-01 is compatible with all ABB ACH550 standard drives for HVAC, including older product generations.

How do I access the module settings?

The module features an internal web server that can be accessed via a standard web browser once connected to the Ethernet network to set IP addresses and view diagnostic logs.
