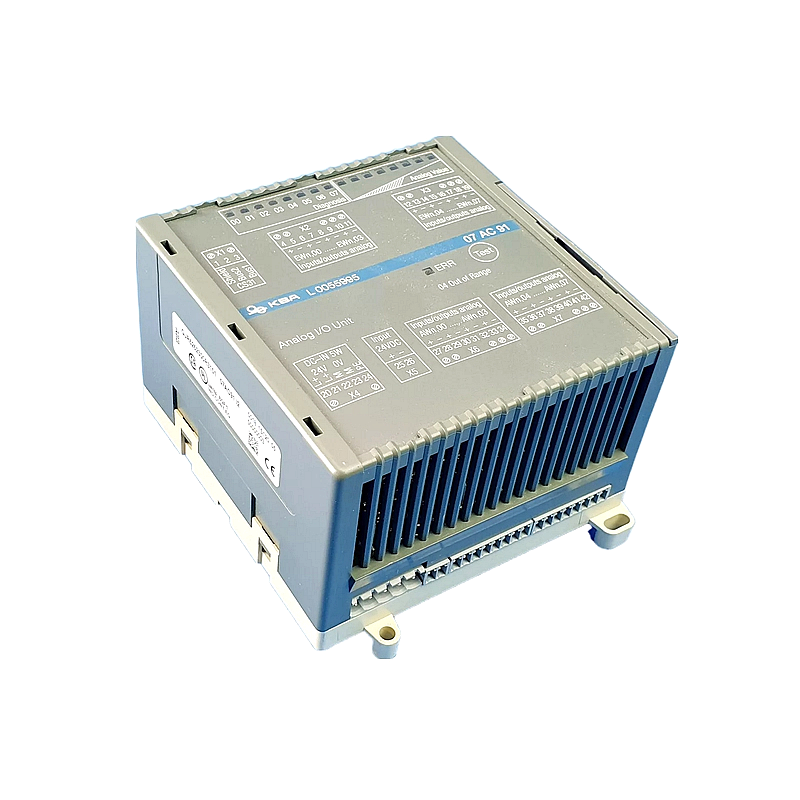

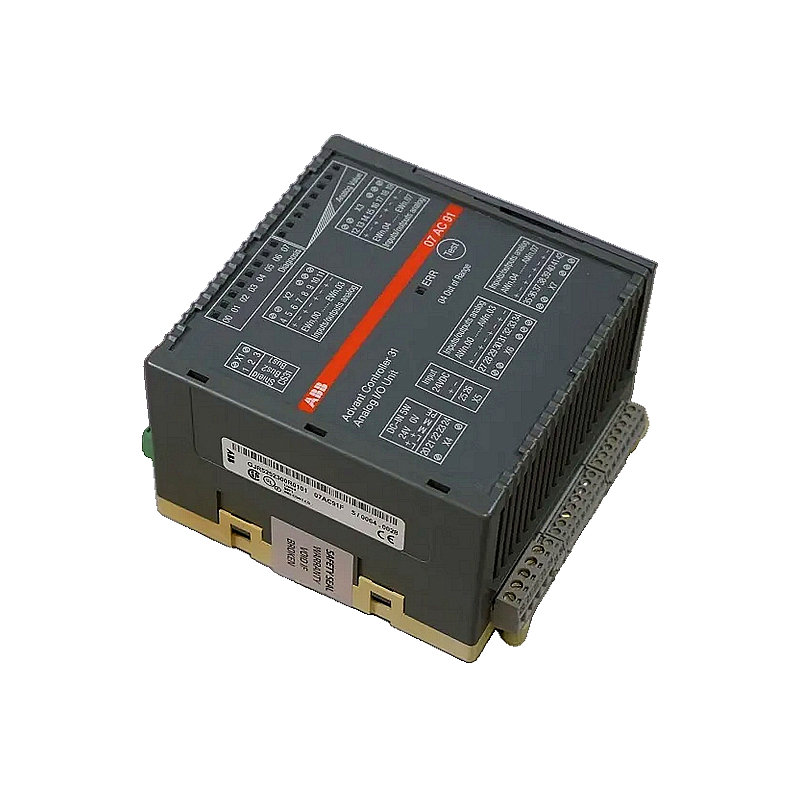

ABB Advant OCS 07AC91 AC31 Analog I/O module

Product Overview

The ABB 07AC91 (Product ID: GJR5252300R0101) is an analog input/output module designed for the Advant Controller 31 (AC31) system. This versatile module provides 8 analog input channels and 8 analog output channels, making it the go-to solution for process control applications requiring precise measurement and control of continuous variables such as temperature, pressure, flow, and level. With 12-bit + sign resolution and configurable signal ranges, the 07AC91 delivers the accuracy and flexibility demanded by modern industrial automation.

Key Specifications

• Manufacturer: ABB
• Product ID: GJR5252300R0101
• Product Family: Advant Controller 31 (AC31)
• Type: Analog Input/Output Module
• Analog Inputs: 8 channels
• Analog Outputs: 8 channels
• Input Signal Types: ±10 V, 0–10 V, 0–20 mA, 4–20 mA (configurable per channel)
• Output Signal Types: ±10 V, 0–10 V, 0–20 mA, 4–20 mA (configurable per channel)
• Resolution: 12-bit + sign
• Power Supply: 24 V DC
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +75°C
• Dimensions: ~120 mm × 140 mm × 85 mm (W × H × D)
• Weight: ~0.4 – 0.81 kg
• Mounting: DIN rail EN 50022-35
• Protection Rating: IP20

Features & Benefits

• High-Resolution Conversion: 12-bit + sign resolution ensures precise signal acquisition and output control for demanding process applications.
• Flexible Signal Ranges: Each channel independently configurable for voltage (±10 V, 0–10 V) or current (0–20 mA, 4–20 mA) signals — adapt to any sensor or actuator.
• Balanced I/O Count: Equal number of inputs and outputs (8 AI / 8 AO) simplifies system design for closed-loop control applications.
• Electrical Isolation: Channels are electrically isolated from the system bus and power supply, protecting against ground loops and transient interference.
• CS31 Bus Integration: Communicates seamlessly with AC31 basic units via the CS31 system bus, enabling distributed analog I/O architectures.
• Compact Modular Design: Standard AC31 form factor allows easy installation and hot-swappable replacement in running systems.

Typical Applications

• Process control loops (temperature, pressure, flow, level)
• PID control with analog feedback
• Variable speed drive analog reference signals
• Data acquisition and trending systems
• Water treatment and chemical dosing control

Installation Guide

1. Mounting: Install the 07AC91 on a 35 mm DIN rail (EN 50022) in the control cabinet. Ensure vertical orientation with terminals at top and bottom.
2. Power Supply: Connect 24 V DC to the power terminals. Verify polarity before energizing.
3. Analog Input Wiring: Connect field sensors (transmitters, transducers) to the AI terminals. Use shielded twisted-pair cables for noise immunity. Ground the shield at one end only.
4. Analog Output Wiring: Connect actuators, VFDs, or indicators to the AO terminals. For current outputs (4–20 mA), ensure the load resistance is within the module's specified range.
5. Signal Configuration: Configure each channel's signal type (voltage/current) and range via the AC31 programming software. Incorrect configuration may damage the module or provide inaccurate readings.
6. CS31 Bus Connection: Connect the module to the CS31 bus and set the station address using the coding switch.
7. Calibration: Perform zero and span calibration for critical applications using certified reference sources.
8. Verification: After power-on, verify signal readings against known values and check for stable output behavior.

FAQ

Q: What is the difference between 07AC91 and 07AI91?
A: The 07AC91 provides 8 AI + 8 AO (balanced analog I/O). The 07AI91 provides 8 AI only but supports RTD (Pt100/Pt1000) and thermocouple (J, K, S) inputs in addition to voltage/current. Choose 07AI91 for temperature measurement; choose 07AC91 for general-purpose analog control.

Q: Can I use 4–20 mA and 0–10 V signals on the same module?
A: Yes. Each channel is independently configurable. You can mix voltage and current signals across the 8 input and 8 output channels as needed.

Q: What is the accuracy of the 07AC91?
A: The module provides 12-bit + sign resolution with typical accuracy of ±0.1% to ±0.5% of full scale depending on signal type and environmental conditions.

Q: Is the 07AC91 hot-swappable?
A: While the AC31 system supports online configuration changes, always consult your system documentation before removing or inserting modules under power. Some configurations may require a controlled shutdown.

Selection Tips

• Choose 07AC91 when you need equal numbers of analog inputs and outputs for balanced control loops.
• For temperature-specific applications (RTD/thermocouple), select 07AI91 instead.
• Verify the signal types of your field devices (voltage vs. current) before configuring the module.
• Use shielded cables for all analog connections and maintain separation from high-voltage power cables to minimize noise pickup.
• Consider adding signal isolators or surge protectors in high-interference environments.
