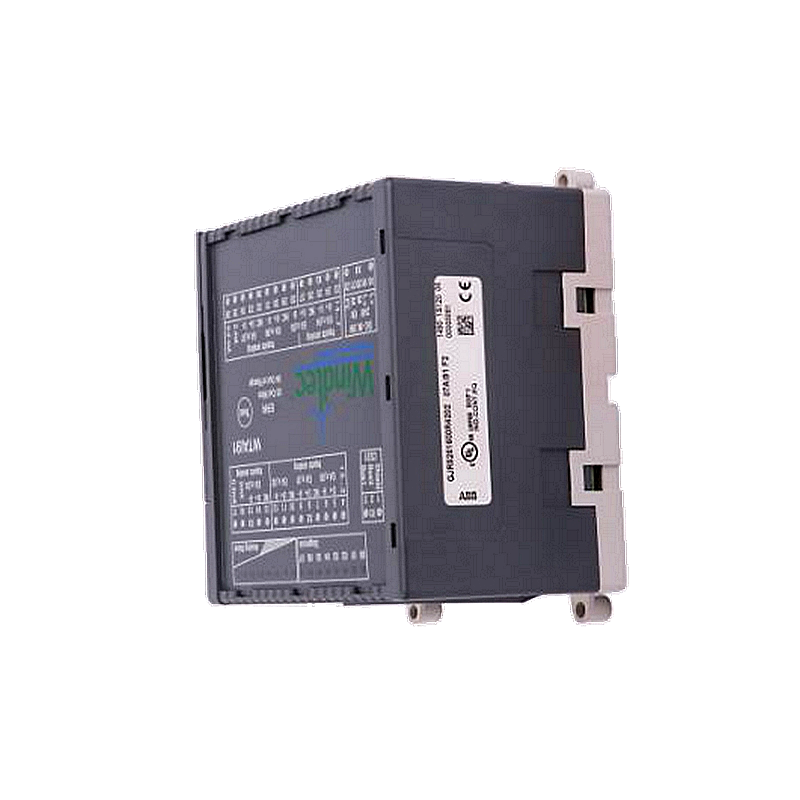

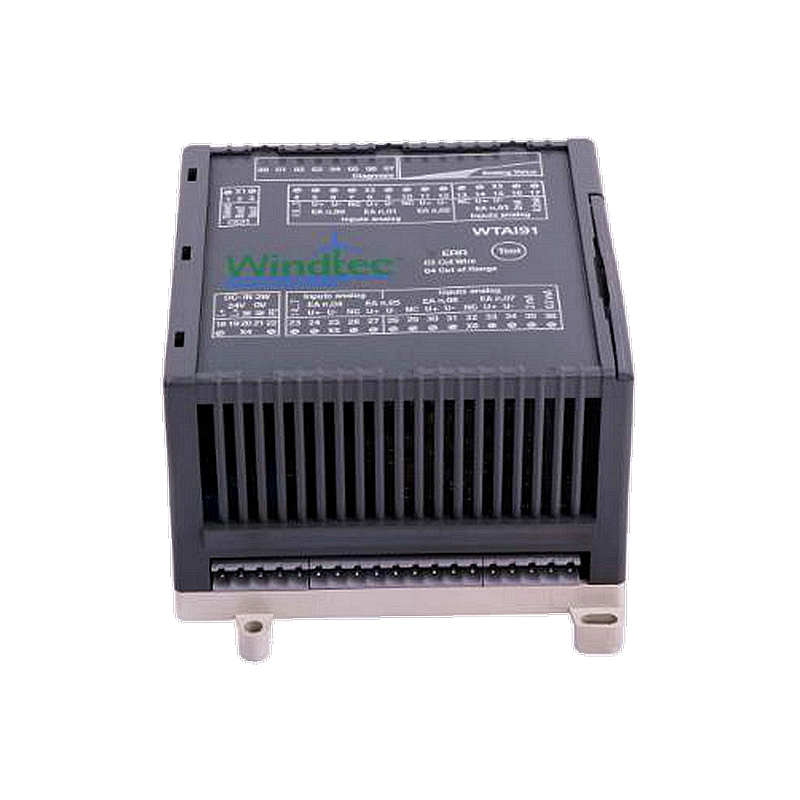

ABB Advant OCS 07AI91 WT91 Analog Input Module

Product Overview

The ABB 07AI91 (Product ID: GJR5251600R0202 or GJR5251600R4202) is a high-precision analog input module for the Advant Controller 31 (AC31) system. Featuring 8 configurable analog input channels, this module supports a wide range of signal types including voltage, current, RTD (Pt100/Pt1000), and thermocouples (J, K, S). With 12-bit + sign resolution and comprehensive diagnostic LEDs, the 07AI91 is the premier choice for temperature measurement and precision signal acquisition in industrial automation.

Key Specifications

• Manufacturer: ABB
• Product IDs: GJR5251600R0202, GJR5251600R4202
• EAN: 4013614267635
• Product Family: Advant Controller 31 (AC31)
• Type: Analog Input Module
• Analog Inputs: 8 channels, configurable in pairs
• Voltage Input Ranges: ±10 V, ±5 V, ±500 mV, ±50 mV
• Current Input Ranges: 0–20 mA, 4–20 mA (via 250 Ω external shunt)
• RTD Support: Pt100 (-50°C to +400°C), Pt1000
• Thermocouple Support: Type J (0–1200°C), Type K (0–1372°C), Type S (0–1600°C)
• Resolution: 12-bit + sign (1 LSB = 0.1°C for Pt100; 0.4°C for thermocouples)
• Total Error: < ±0.5% of full scale
• Line Frequency Suppression: Configurable 50 Hz, 60 Hz, or none
• Update Period per Channel: ~30 ms (no suppression); ~100 ms (with suppression); ~150 ms (thermocouples with suppression)
• Supply Voltage: 24 V DC
• Power Consumption: Max. 3 W
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +75°C
• Dimensions: 120 × 140 × 85 mm (W × H × D)
• Weight: 0.45 – 0.48 kg
• Mounting: DIN rail EN 50022-35 (TH35-15 or TH35-7.5) or 4 × M4 screws
• Terminal Cross-Section: Max. 2.5 mm²
• LED Indicators: 17 LEDs (operation and error status)
• Protection Rating: IP20
• Certifications: CE, UL, RoHS

Features & Benefits

• Multi-Signal Flexibility: Single module handles voltage, current, RTD, and thermocouple inputs — eliminates the need for multiple specialized modules.
• Ambient-Compensated Thermocouples: Internal reference junction compensation ensures accurate temperature readings despite cabinet temperature variations.
• High Precision: 12-bit + sign resolution with < ±0.5% FS accuracy delivers trustworthy measurements for critical process control.
• Line Frequency Rejection: Configurable 50/60 Hz suppression filters out electrical noise from motors, drives, and power lines.
• Comprehensive Diagnostics: 17 LED indicators provide at-a-glance status for all channels and system health, speeding up troubleshooting.
• Electrical Isolation: 1500 V AC galvanic isolation between inputs, outputs, and power supply protects against ground loops and transients.

Typical Applications

• Temperature monitoring in chemical reactors and furnaces
• Process variable acquisition (pressure, flow, level transmitters)
• Environmental monitoring and HVAC control
• Food and beverage pasteurization and cooking processes
• Power plant boiler and turbine monitoring

Installation Guide

1. Mounting: Install on a 35 mm DIN rail (TH35-15 or TH35-7.5 per IEC 60715) or secure with 4 × M4 screws. Maintain vertical orientation.
2. Power Supply: Connect 24 V DC to the power terminals. Verify polarity.
3. Signal Wiring:
   • Voltage/Current: Use shielded twisted-pair cables. Connect signal wires to the appropriate terminals.
   • RTD (3-wire): Connect the three RTD leads to the designated terminals. The module automatically compensates for lead resistance.
   • Thermocouple: Connect thermocouple leads directly to the input terminals. Ensure correct polarity. The module provides internal cold-junction compensation.
4. Channel Configuration: Use the AC31 programming software to configure each channel pair for the desired signal type and range. Mismatched configuration will result in incorrect readings.
5. Line Frequency Suppression: Set the suppression filter to match your local power frequency (50 Hz or 60 Hz) for maximum noise rejection.
6. CS31 Bus: Connect to the CS31 bus and set the module address via the coding switch.
7. Verification: Apply known reference signals and compare module readings. Calibrate if deviation exceeds acceptable limits.

FAQ

Q: Can I mix RTD and thermocouple inputs on the same 07AI91 module?
A: Yes. The 8 channels are configurable in pairs, allowing mixed signal types across the module. However, channels within a pair must use the same configuration.

Q: What is the difference between GJR5251600R0202 and GJR5251600R4202?
A: These are different revisions or variants of the 07AI91 module. The core functionality is identical, but firmware features, terminal types, or certifications may differ. Verify compatibility with your AC31 basic unit before ordering.

Q: Do I need external signal conditioners for thermocouples?
A: No. The 07AI91 provides built-in cold-junction compensation and direct thermocouple connection. No external signal conditioners are required.

Q: What is the maximum cable length for RTD sensors?
A: Cable length depends on wire gauge and acceptable measurement error. As a general guideline, keep RTD cable runs under 100 meters for 3-wire configurations to minimize lead resistance effects.

Selection Tips

• Choose 07AI91 when your application involves temperature measurement (RTD or thermocouple) or requires high-precision analog input with multiple signal types.
• For balanced analog I/O (equal AI and AO), select 07AC91 instead.
• Always use 3-wire RTD connections for best accuracy; 2-wire configurations introduce lead resistance errors.
• For thermocouple applications, verify the temperature range of your process matches the supported thermocouple types (J: 0–1200°C, K: 0–1372°C, S: 0–1600°C).
• When replacing a failed module, record the channel configuration settings to ensure identical replacement behavior.
