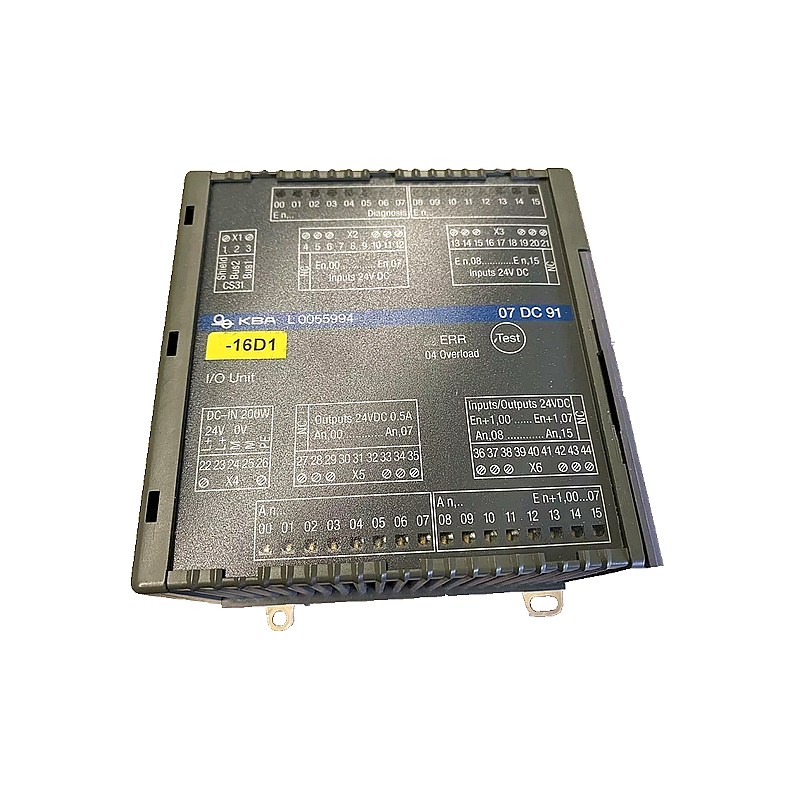

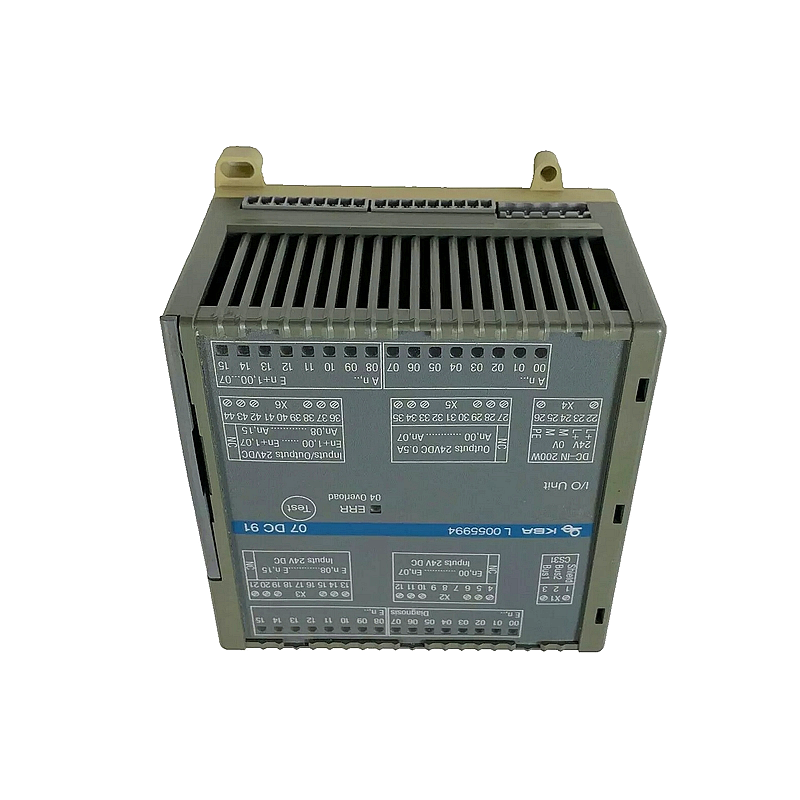

ABB Advant OCS 07DC91 Digital Input/Output Module

Product Overview

The ABB 07DC91 is a digital input/output module designed for the Advant Controller 31 (AC31) system. This module provides 16 digital I/O channels (typically 8 inputs and 8 outputs, or configurable variants) operating at 24 V DC. The 07DC91 is the workhorse of the AC31 I/O family, offering reliable digital signal acquisition and control for a wide range of industrial automation applications. Its compact design and proven CS31 bus integration make it a cost-effective solution for expanding AC31 system I/O capacity.

Key Specifications

• Manufacturer: ABB
• Product Family: Advant Controller 31 (AC31)
• Type: Digital Input/Output Module
• Digital I/O Channels: 16 (8 DI / 8 DO typical configuration)
• Input Voltage: 24 V DC
• Output Voltage: 24 V DC
• Output Current: 0.5 A per channel (typical)
• Power Supply: 24 V DC
• System Bus: CS31 Slave
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +75°C
• Dimensions: Standard AC31 module form factor
• Weight: ~0.3 – 0.4 kg
• Mounting: DIN rail EN 50022-35 or screw mounting
• Protection Rating: IP20

Features & Benefits

• Reliable Digital I/O: Proven 24 V DC I/O design handles standard industrial sensors, switches, solenoids, and contactors with ease.
• Fixed I/O Assignment: Predefined input and output channels simplify programming and reduce configuration complexity.
• Transistor Outputs: Fast-switching transistor outputs provide reliable control of DC loads with built-in overload protection.
• LED Status Indicators: Individual LEDs for each I/O channel and supply voltage enable quick visual diagnostics.
• CS31 Bus Slave: Seamlessly integrates into AC31 distributed architectures as a remote I/O station.
• Compact and Economical: Standard AC31 form factor at a competitive price point for cost-sensitive expansion projects.

Typical Applications

• Digital signal acquisition from limit switches and proximity sensors
• Solenoid valve and relay coil control
• Conveyor system digital I/O expansion
• Machine safety interlock systems
• Building automation digital control points

Installation Guide

1. Mounting: Install the module on a 35 mm DIN rail (EN 50022) or secure with screws. Maintain vertical orientation for proper heat dissipation.
2. Power Supply: Connect 24 V DC to the power terminals. Verify polarity before energizing.
3. Input Wiring: Connect 24 V DC sensors, switches, and pushbuttons to the digital input terminals. Input current is typically 5–10 mA per channel.
4. Output Wiring: Connect DC loads (solenoids, indicators, relays) to the digital output terminals. Ensure load current does not exceed the per-channel rating.
5. CS31 Bus Connection: Connect the module to the CS31 system bus using the designated terminals. Set the station address via the coding switch (range: 1–61).
6. Address Configuration: Each module on the CS31 bus must have a unique address. Avoid address conflicts with other remote stations.
7. LED Verification: After power-on, check that the supply LED is illuminated and input/output LEDs respond correctly to field device states.

FAQ

Q: What is the difference between 07DC91 and 07DI92?
A: The 07DC91 provides mixed digital I/O (inputs and outputs). The 07DI92 is a dedicated digital input module with 16 input channels only. Choose 07DI92 when you need only inputs; choose 07DC91 when you need a balanced mix of inputs and outputs.

Q: Can I use the 07DC91 outputs to drive AC loads?
A: No. The 07DC91 outputs are transistor-type, 24 V DC only. For AC loads, use relay output modules or add external interposing relays.

Q: What is the maximum number of 07DC91 modules per CS31 bus?
A: The CS31 bus supports up to 31 remote stations. Each station can be a single module or a group of modules. The total I/O capacity depends on memory and communication bandwidth of the AC31 basic unit.

Q: Are the outputs short-circuit protected?
A: Yes. The transistor outputs feature built-in short-circuit and overload protection. Affected channels automatically shut down and can be reset.

Selection Tips

• Choose 07DC91 for standard digital I/O expansion where a balanced mix of inputs and outputs is needed.
• For applications requiring configurable I/O (any channel as input or output), upgrade to 07DC92.
• For dedicated high-density input requirements, select 07DI92 (16 DI).
• Always verify load current requirements. If driving high-inrush loads (contactors, large solenoids), add external relays or contactors.
• Group input and output cables separately in the cabinet to minimize inductive noise coupling.
• When replacing a failed module, verify the exact model suffix to ensure identical I/O count and terminal layout.
