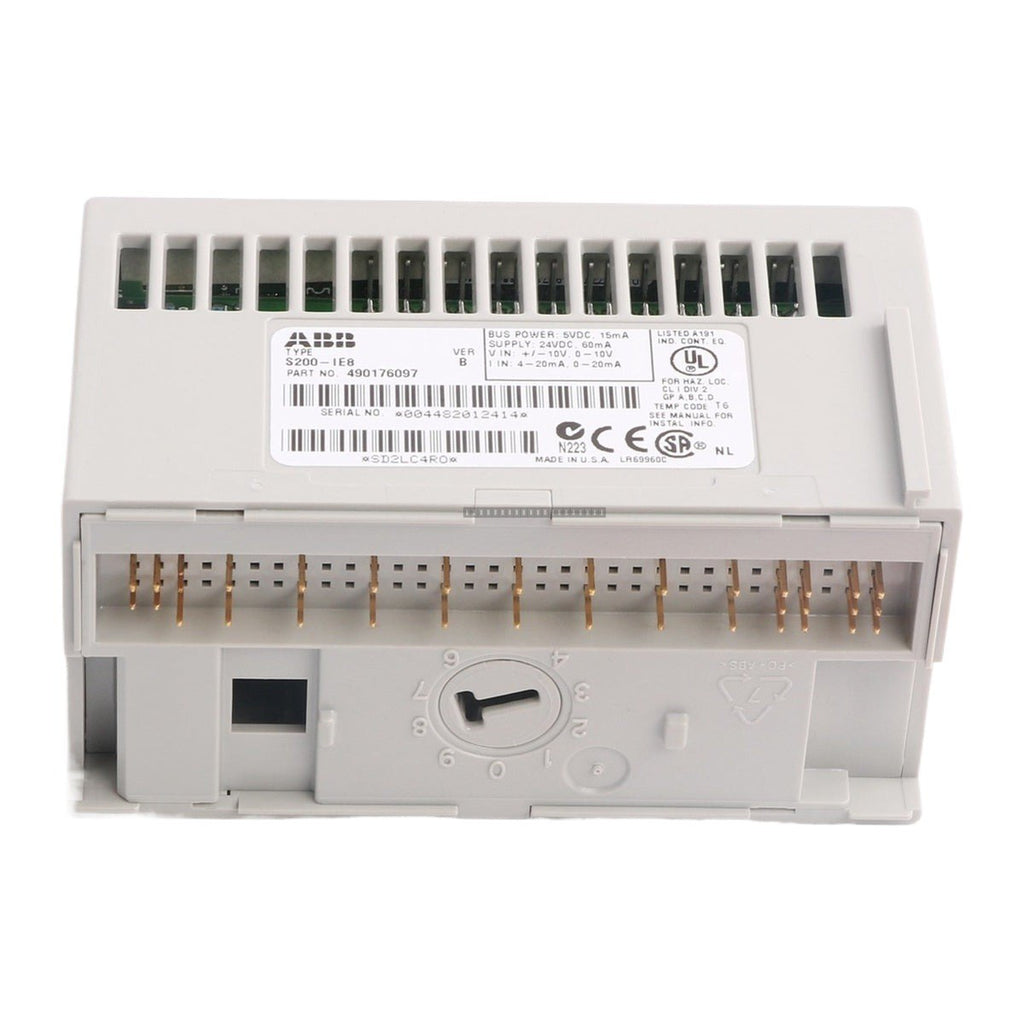

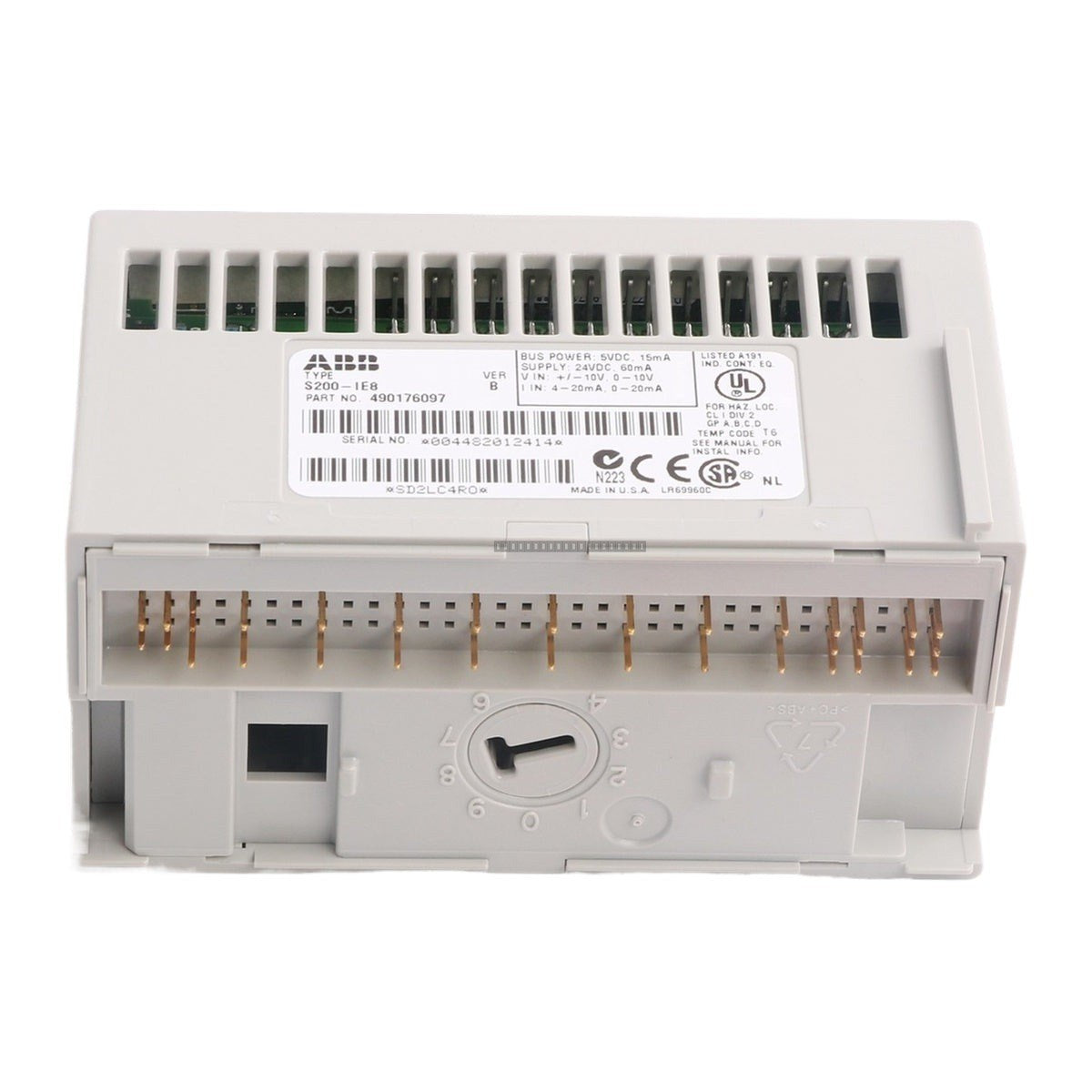

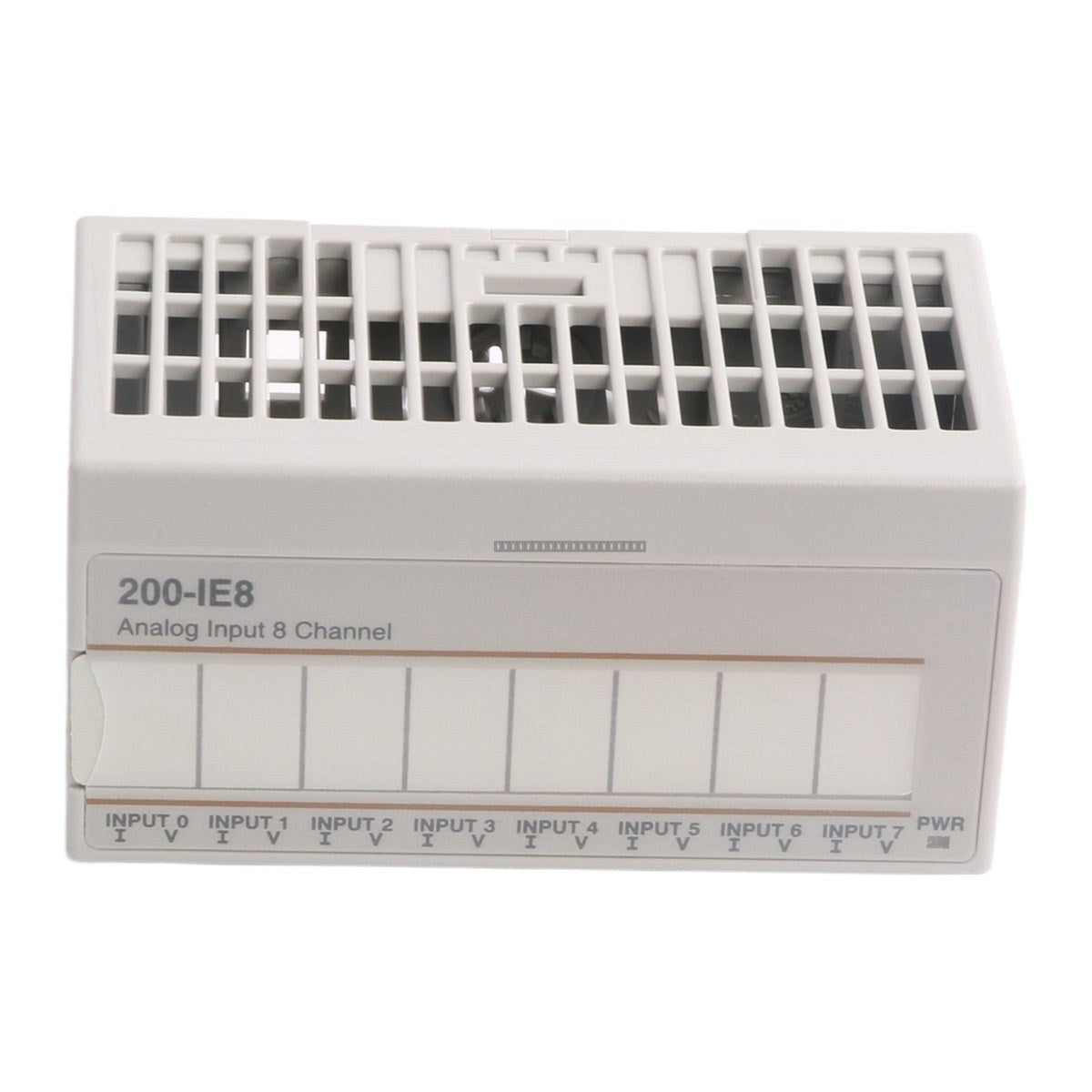

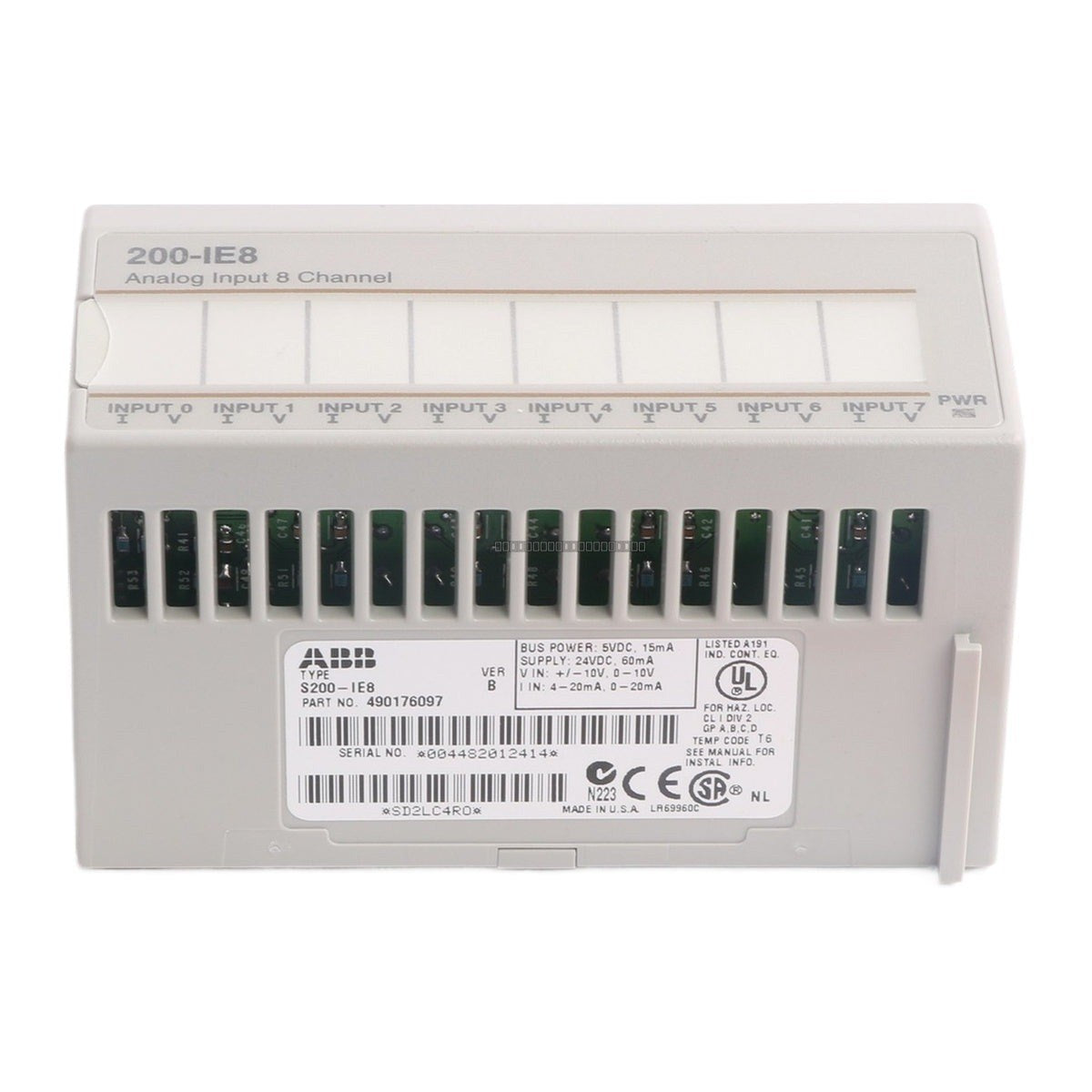

ABB S200-IE8 Advant S200 Analog Input Module 8-Channel

Description

The ABB S200-IE8 is an 8-channel analog input module designed for the Advant S200 I/O system. This module provides high-density analog signal processing, allowing for the integration of various field sensors and transmitters into the Advant control environment. As a critical component of the S200 series, it facilitates precise data acquisition for industrial automation processes. Please note that this model has been discontinued by the manufacturer.

Features

• 8-channel analog input configuration
• Designed for 24VDC operation
• Compatible with the Advant S200 I/O platform
• Compact modular design for space-efficient cabinet mounting

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the I/O rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to internal circuitry.
• Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
• Ensure all field wiring is properly shielded and routed away from high-voltage power lines to minimize EMI interference.
• Confirm that the 24VDC power supply is stable and within the specified operating range before energizing the system.

FAQ

Is the S200-IE8 still in production?

No, the ABB S200-IE8 has been discontinued by the manufacturer. We provide these units as refurbished or surplus spare parts to support legacy systems.

What is the primary function of the S200-IE8?

The S200-IE8 acts as an analog input interface for the Advant S200 I/O system, converting analog field signals into digital data for processing by the controller.
