ABB AI830A 3BSE040662R1 S800 I/O Analog Input Module

Product Overview

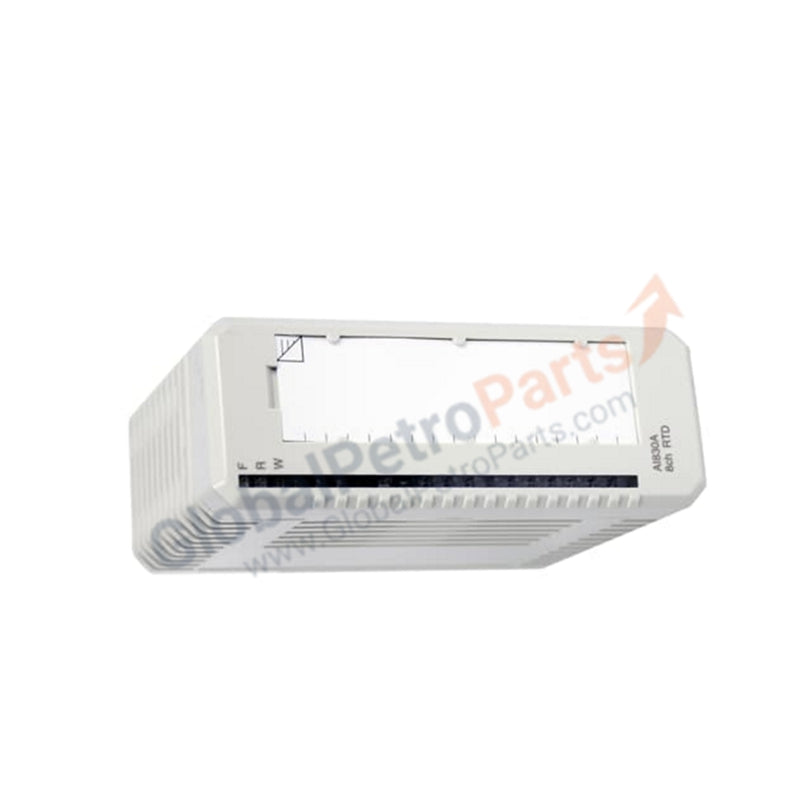

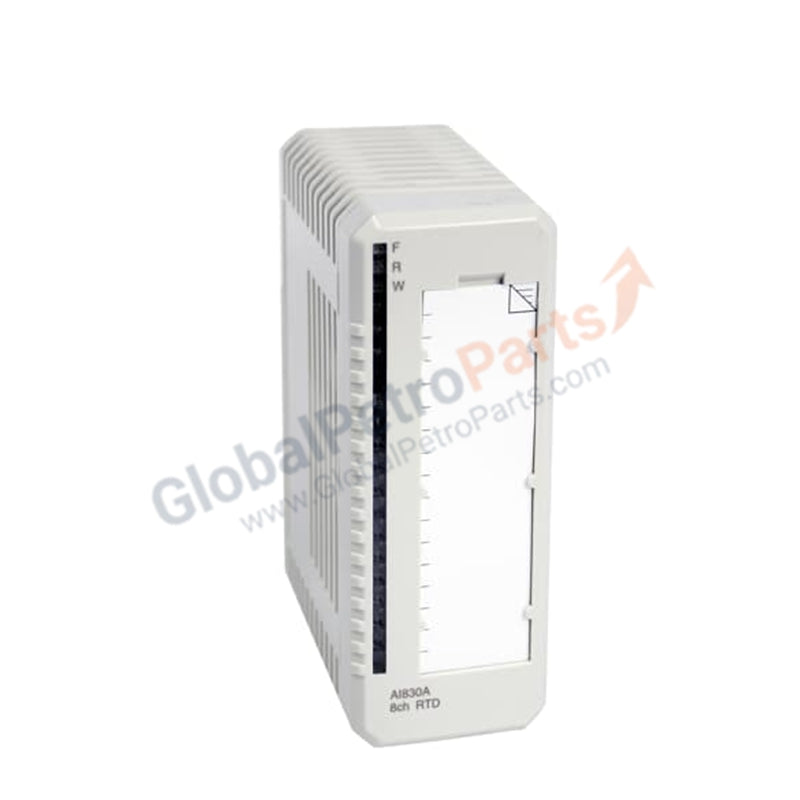

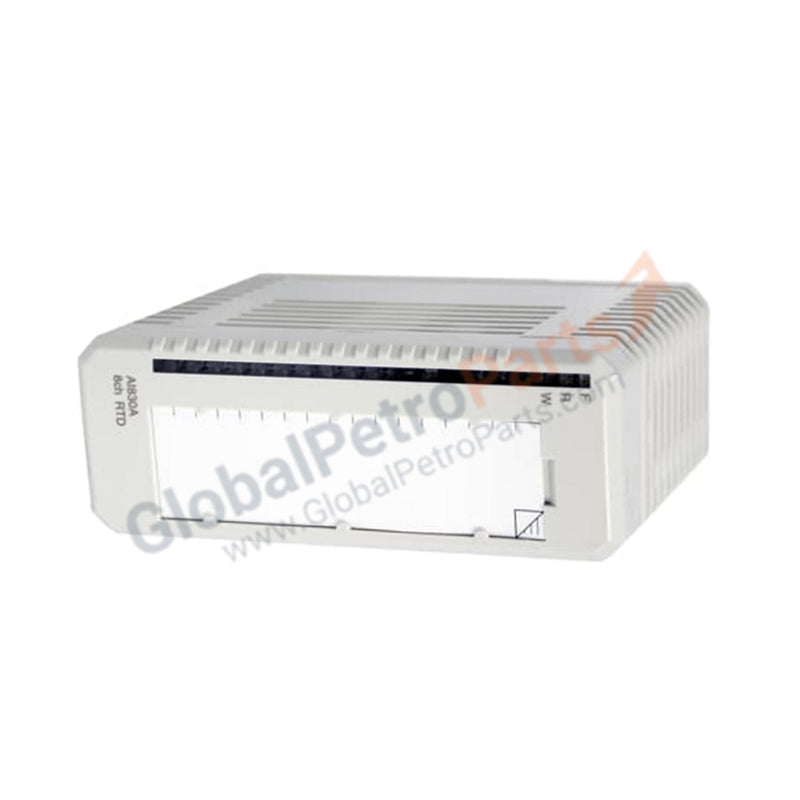

The ABB AI830A (3BSE040662R1) functions as a high-density analog input interface within the S800 I/O system. This module specifically handles resistance temperature detectors (RTD) and resistive potentiometers. It provides eight independent channels for precise temperature monitoring in complex industrial environments. By integrating this module, operators gain reliable data acquisition capabilities for critical thermal processes, ensuring system stability and safety. We guarantee this unit is 100% Brand New and Original in factory packaging.

Technical Specifications

The AI830A delivers robust performance through the following technical parameters:

Engineering Advantages

• Superior Noise Rejection: The module features a Common Mode Rejection Ratio (CMRR) of over 120 dB. This ensures signal integrity even in high-interference environments where electromagnetic noise typically degrades sensor accuracy.

• Harsh Environment Resilience: With G3-level corrosion protection according to ISA-S71.04, the AI830A withstands atmospheric contaminants found in chemical plants and refineries. It maintains long-term operational life where standard modules often fail due to oxidation.

• Advanced Diagnostics: Front-mounted LEDs provide instant visual feedback (Fault, Run, Warning). The module internal logic constantly supervises for open-circuits, short-circuits, and power supply irregularities, significantly reducing troubleshooting downtime.

• Flexible Marine Application: Extensive marine certifications (ABS, BV, DNV, LR) allow for seamless integration into maritime and offshore automation systems, meeting strict vibration and environmental standards.

FAQs

• Does the AI830A support 2-wire or 4-wire RTD configurations?

  This module specifically supports 3-wire RTD configurations. The 3-wire setup provides an excellent balance by compensating for lead wire resistance, ensuring higher accuracy than 2-wire systems without the complexity of 4-wire wiring.

• What happens if a channel experiences a short circuit?

  The module's built-in supervision detects short-circuit and open-circuit conditions immediately. It triggers a "Channel Error" status and activates the "F" (Fault) or "W" (Warning) LED on the front panel to alert maintenance personnel.

• Can I use this module in hazardous locations?

  Yes. The AI830A carries ATEX Zone 2 and Class 1 Division 2 certifications, making it suitable for installation in areas where explosive gases may occasionally be present.

• How does the update cycle time vary?

  The module calculates the update cycle based on active channels ($150 + 95 \times n$ ms). To optimize system responsiveness, you can disable unused channels within the control software to decrease the overall cycle time.
