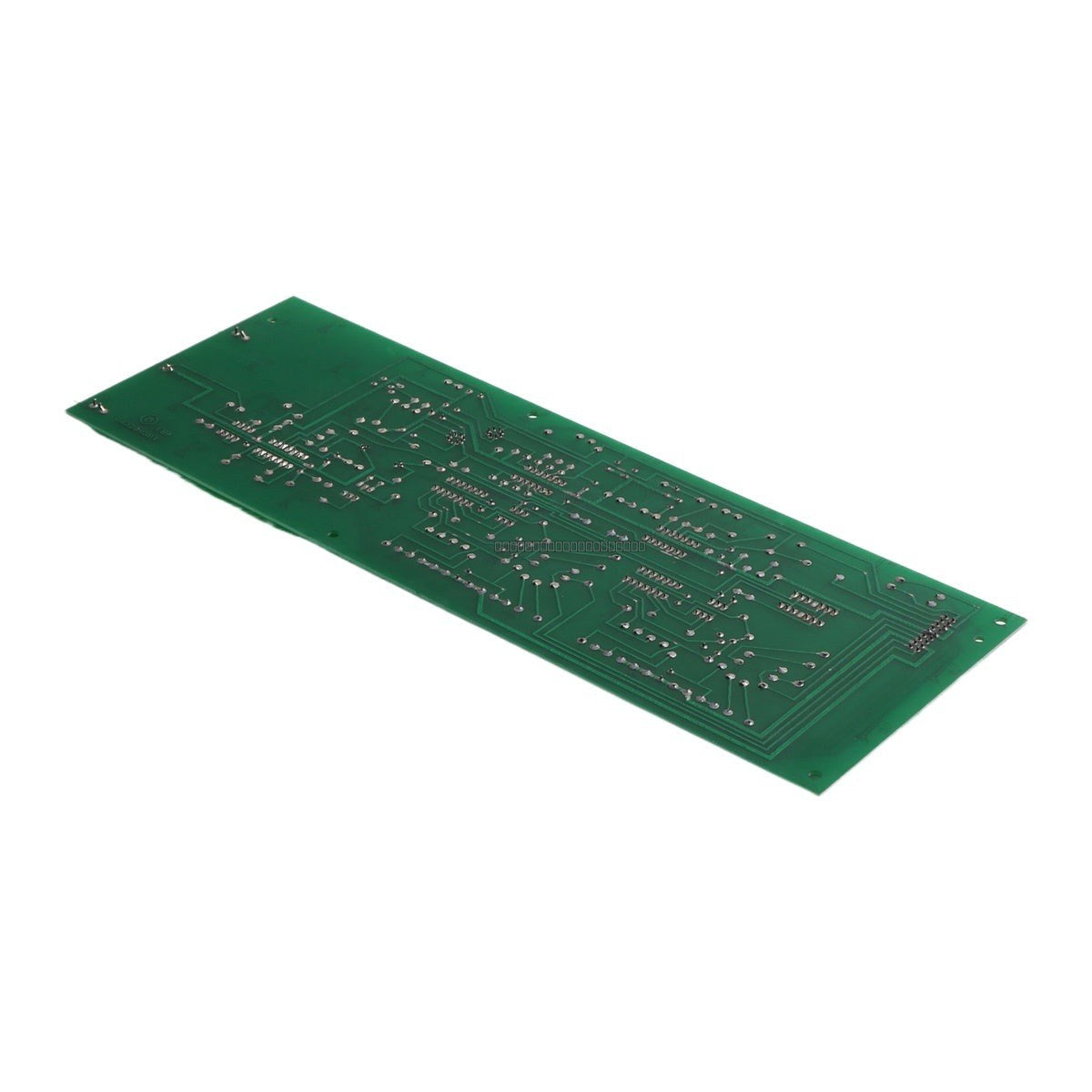

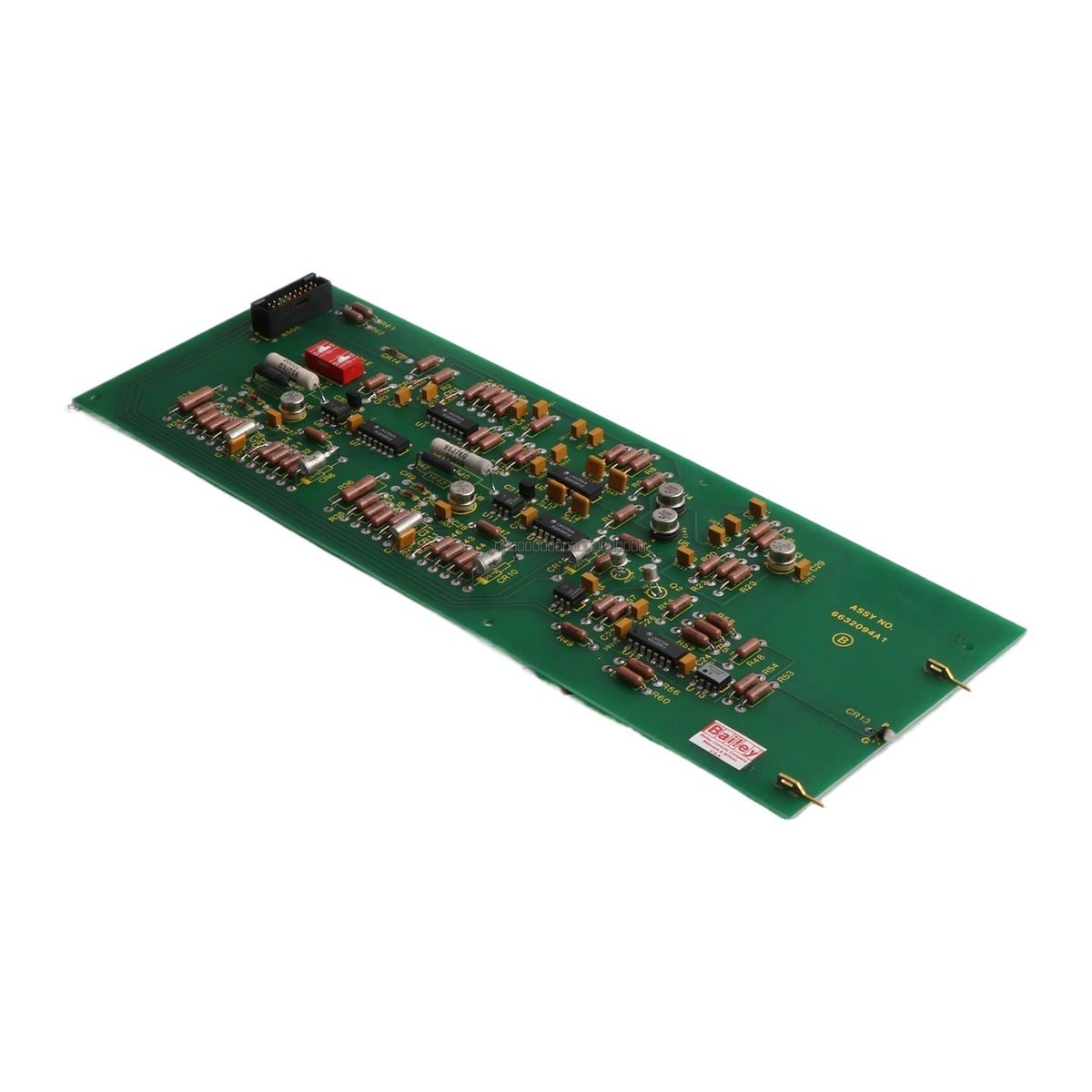

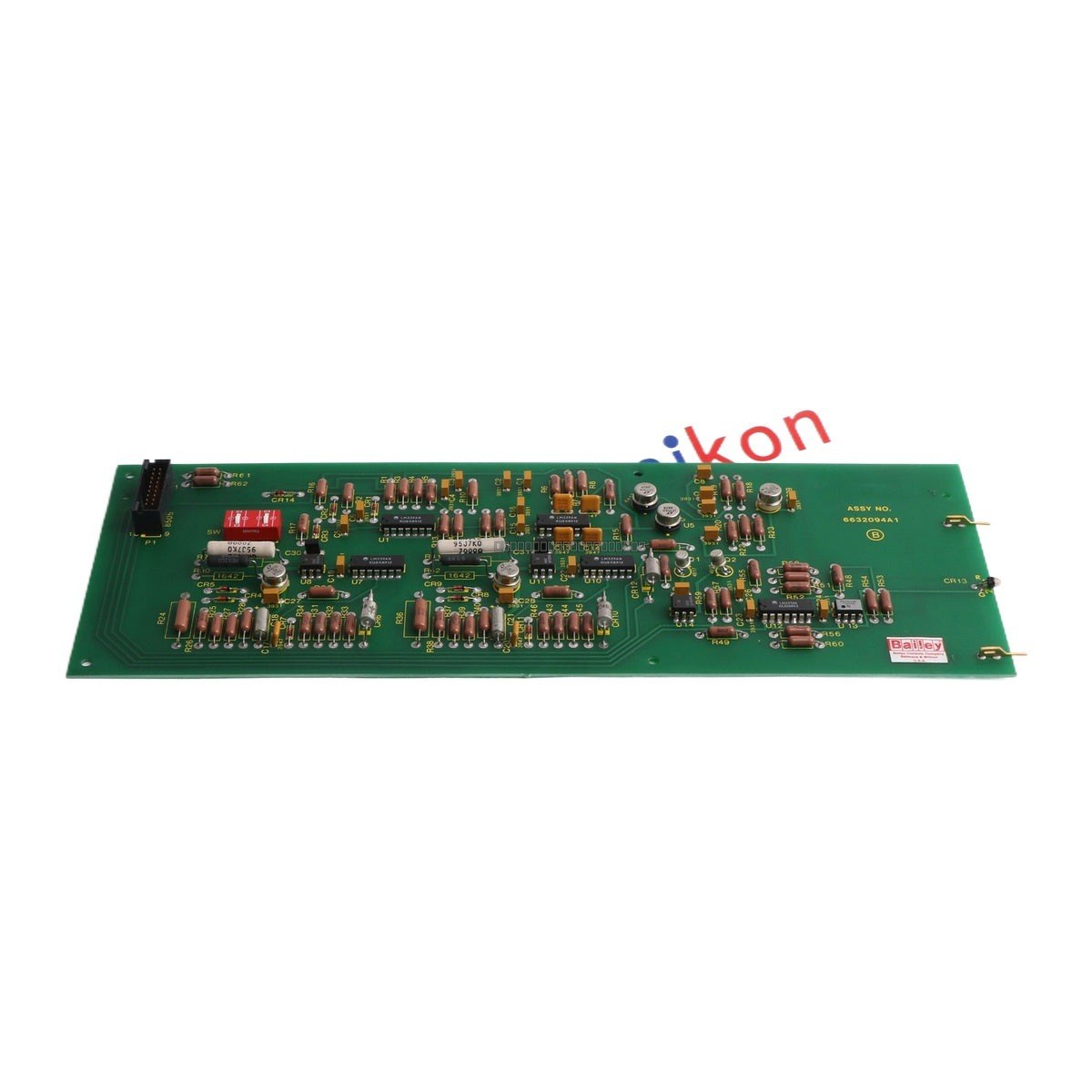

ABB Bailey 6632094A1 Circuit Board

Description

The ABB Bailey 6632094A1 is a high-performance circuit board designed for integration within industrial control systems. This PC board serves as a core processing or I/O interface component, utilizing a 20 MHz NEC V30H 16-bit processor to manage control logic and data processing tasks. It is equipped with 2 MB of memory dedicated to firmware storage, ensuring reliable execution of system-specific operations.

Features

• Integrated 20 MHz NEC V30H 16-bit microprocessor.
• 2 MB onboard memory for firmware storage.
• Designed for high-reliability industrial control environments.
• Supports a wide range of digital and analog I/O configurations.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the circuit board to prevent electrical damage.
• Handle the PCB using proper ESD (Electrostatic Discharge) mitigation techniques, such as wearing a grounded wrist strap.
• Verify that the rack supply voltage is stable at +5 V dc +/- 5% before powering up the module.
• Ensure all field wiring for the 24 V dc inputs and relay outputs is properly routed and secured to prevent mechanical stress on the board connectors.
• Maintain adequate ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to +70 degC range.

FAQ

What is the primary function of the 6632094A1 circuit board?

The 6632094A1 is a specialized circuit board used in ABB Bailey control systems, functioning as a processor and I/O interface module to handle digital and analog signals within the automation architecture.

What are the power requirements for this module?

The module requires a +5 V dc supply for internal logic and a +24 V dc supply for field-side I/O operations.
