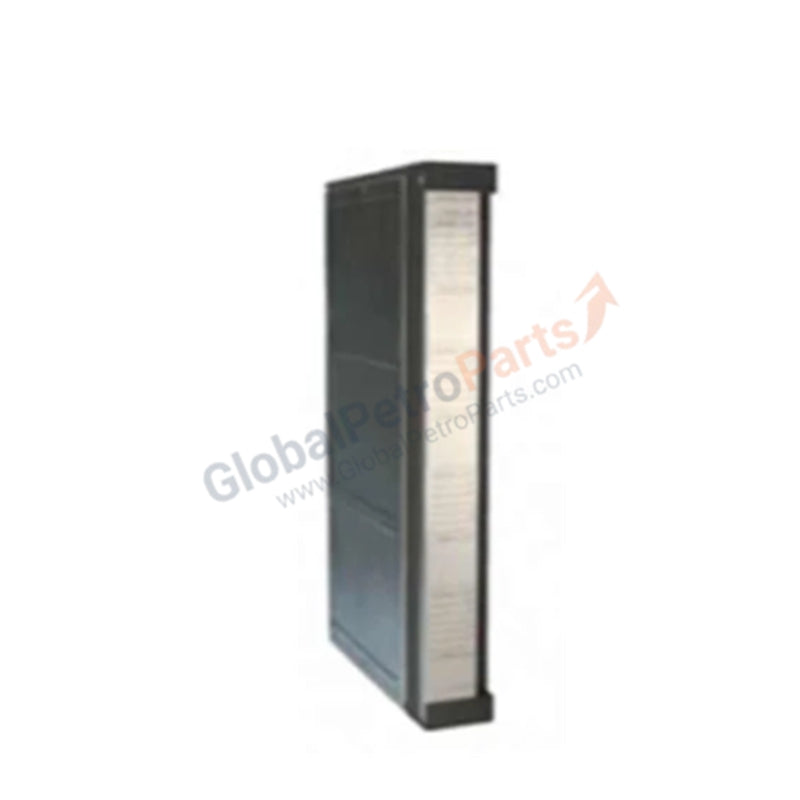

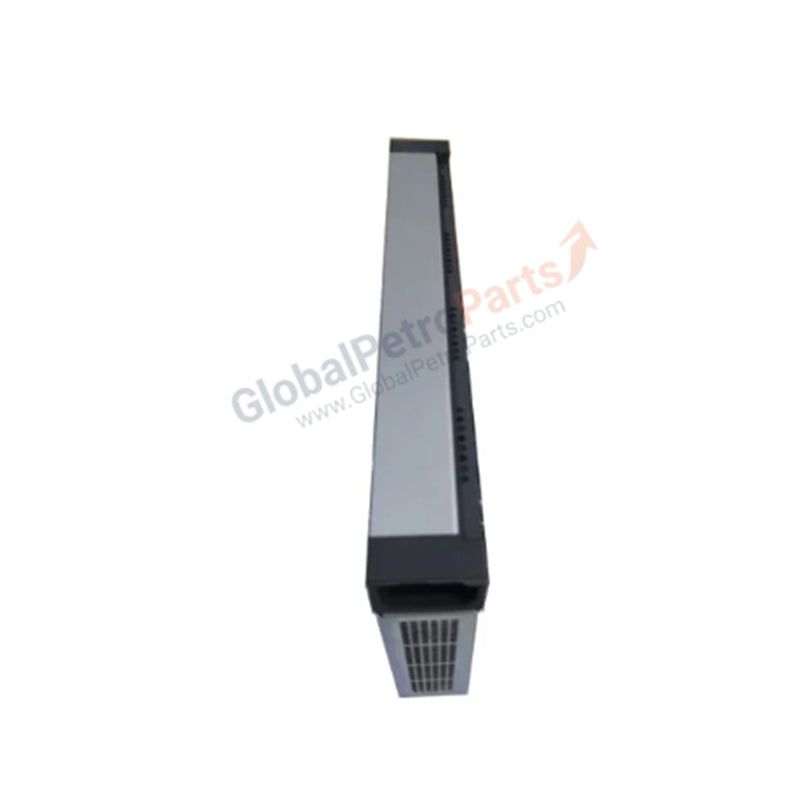

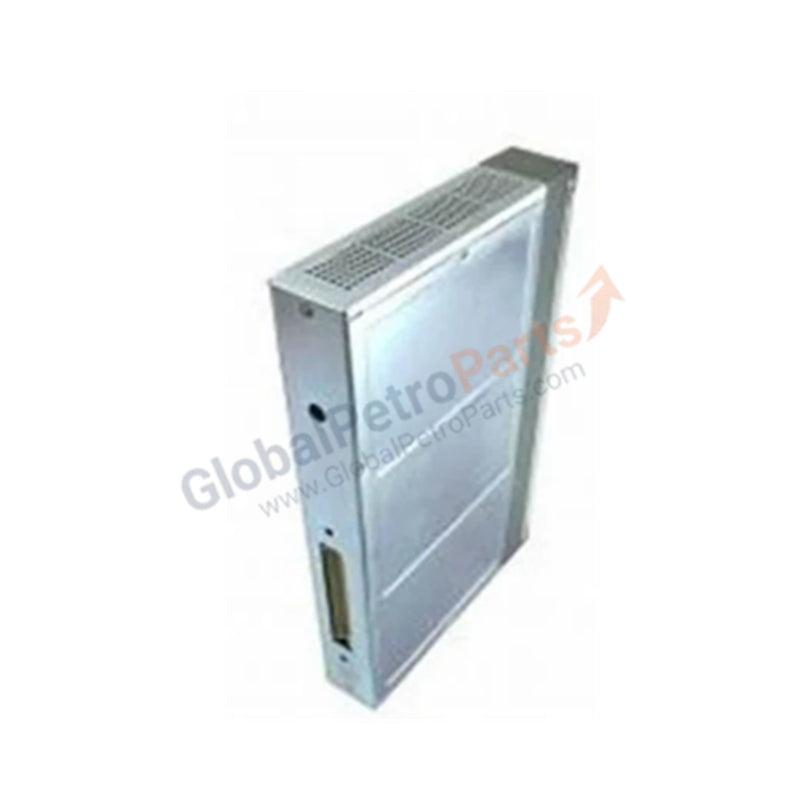

ABB Bailey DAI 03 16-Channel 24VDC Digital Input Module

Product Description

The ABB Bailey DAI 03 is a 16-channel digital input module engineered for 24VDC operation. Each channel is individually isolated, ensuring reliable signal integrity in demanding industrial environments. This module is compatible with ABB base units xBS01-FPH, xBS01-FPN, and xBS01-EPD, making it a versatile choice for system integration.

Technical Specifications

• Manufacturer: ABB

• Product Line: Bailey I/O Modules

• Catalog Number / Model: DAI 03

• Product Type: Digital Input Module

• Input Channels: 16 isolated channels

• Channel Type: DI (Digital Input)

• Nominal Voltage: 24 VDC

• Dimensions:

• Depth/Length: 350.52 mm

• Height: 129.54 mm

• Width: 482.6 mm

• Weight: 0.22 kg

• Compliance: RoHS (EU Directive 2011/65/EU)

• WEEE Category: 5 (Small Equipment <50 cm)

• Battery Content: None

Application Scenarios

• Industrial automation systems requiring isolated digital inputs

• Event monitoring and signal acquisition in ABB Bailey control systems

• Integration with xBS01 base units for modular expansion
