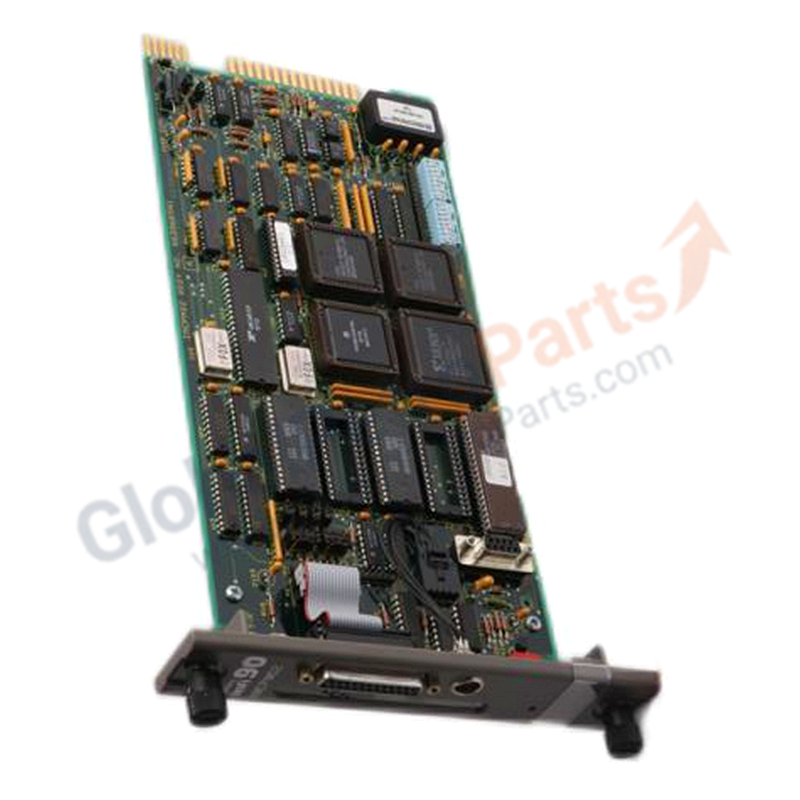

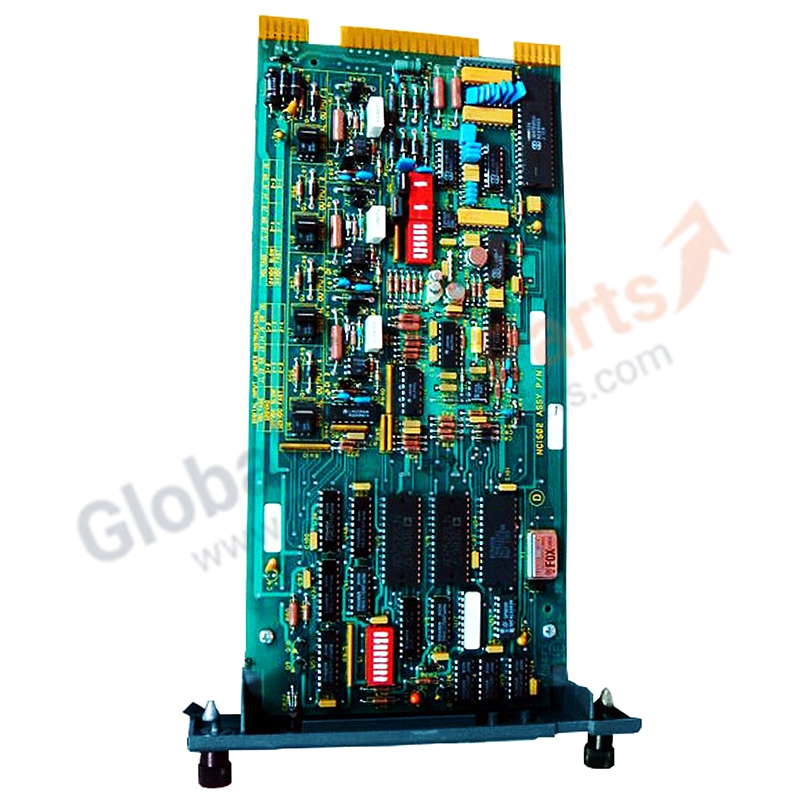

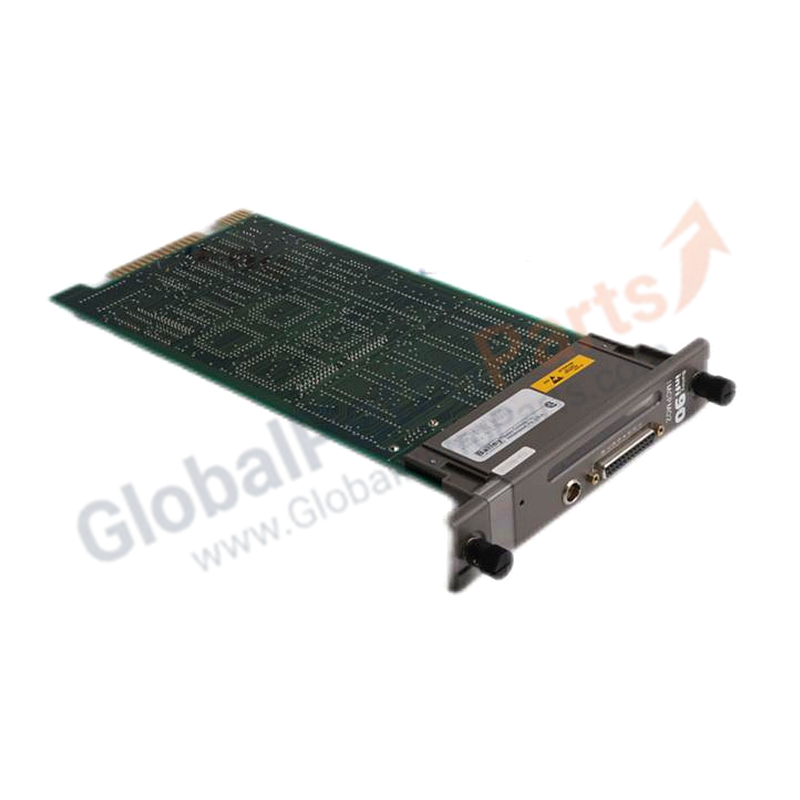

ABB Bailey IMCIS02 Control I/O Slave Module for INFI 90

Overview

The ABB Bailey IMCIS02 is a Control I/O Slave Module designed for INFI 90 process control systems. It provides both analog and digital signal acquisition and output functions, enabling interface between field devices and the Multi-Function Processor (MFP) for process control and monitoring.

Technical Specifications

• Product Type: Control I/O Slave Module
• Part Number: IMCIS02
• System Compatibility: ABB Bailey INFI 90 / Network 90
• Input/Output Capability:
  • Analog Inputs: 4 channels
  • Digital Inputs: 3 channels
  • Analog Outputs: 2 channels
  • Digital Outputs: 4 channels
• Digital Input Types:
  • 24 VDC
  • 125 VDC
  • 120 VAC
• Analog Input Range:
  • 1–5 VDC (single-ended or differential)
• Digital Output:
  • 24 VDC open collector outputs
  • Up to 250 mA sink capability
• Analog Output:
  • Selectable current or voltage mode (via configuration switch)
• Power Supply:
  • +5 VDC
  • +15 VDC
  • -15 VDC
  • +24 VDC (from TU/TM)
• Mounting: Standard INFI 90 Module Mounting Unit (MMU)
• Communication: Slave Expander Bus to MFP module
• Hot Swap: Supported

Key Features

• Integrates analog and digital I/O within a single module
• Supports multiple industrial digital input voltage standards
• Provides configurable analog output modes
• Communicates directly with Multi-Function Processor via expander bus
• Hot-swappable design for maintenance without system shutdown
• Suitable for distributed process control applications
• Combines signal acquisition and output control functions

Installation Notes

• Install in a standard INFI 90 Module Mounting Unit (MMU)
• Connect field wiring through appropriate TU/TM termination units
• Ensure correct slave address configuration before operation
• Verify power rails before system energization
• Ensure proper grounding and shielding of field wiring
• Confirm communication status with MFP during startup
