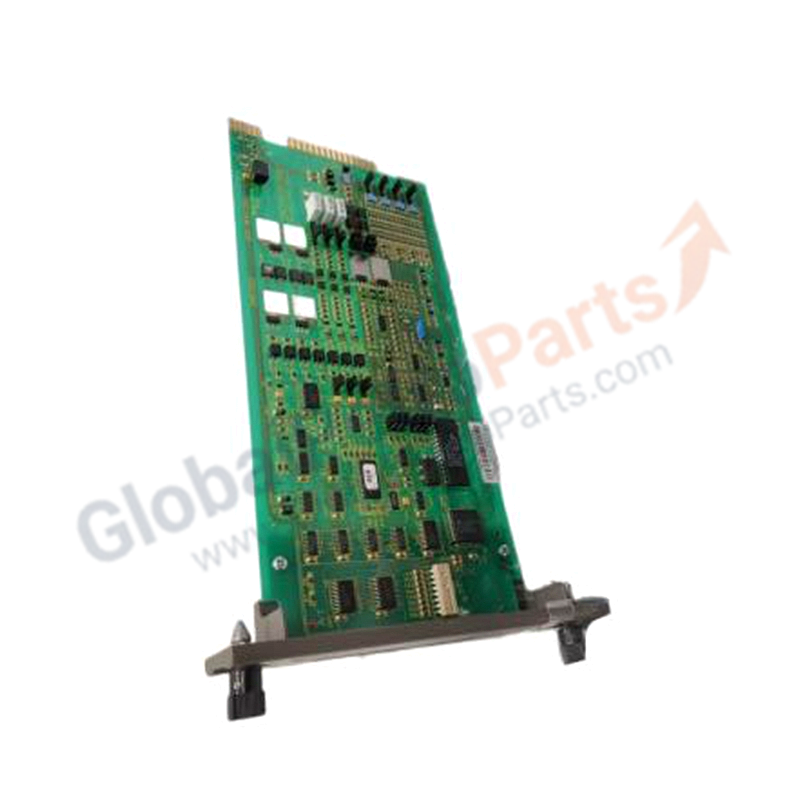

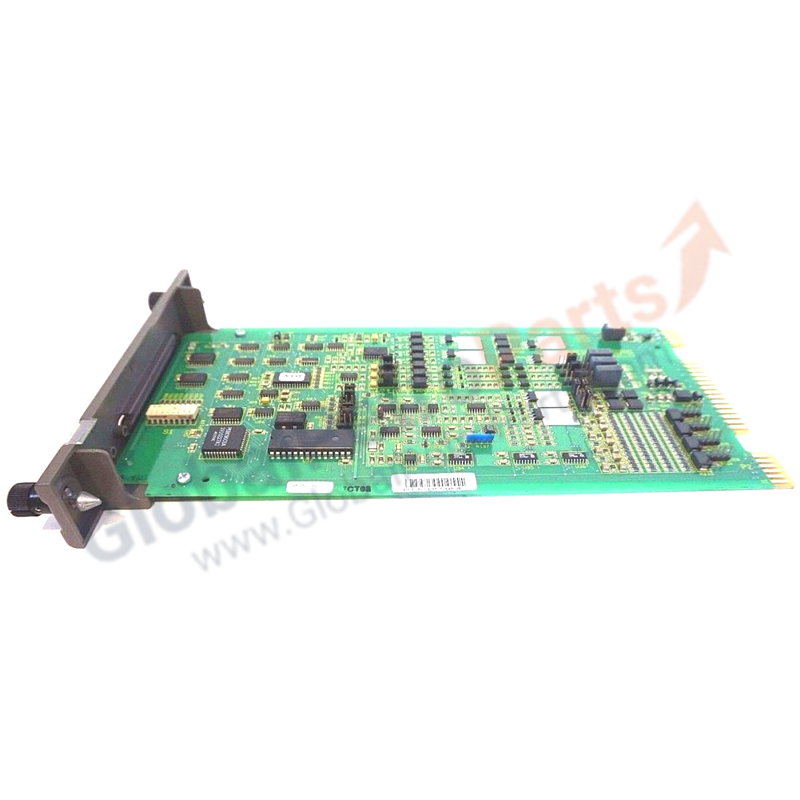

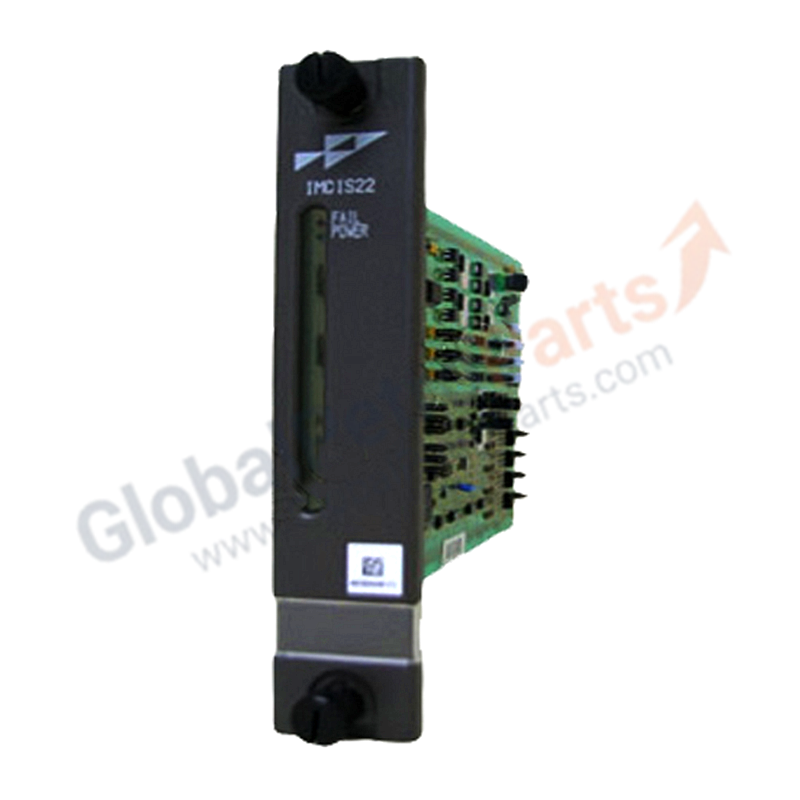

ABB Bailey IMCIS22 Control I/O Slave Module

Overview

The ABB Bailey IMCIS22 is a Control Input/Output Slave Module designed for INFI 90 process control systems. It provides an interface between field digital/analog signals and the control system, enabling both signal acquisition and control output functions within distributed automation applications.

Technical Specifications

• Product Type: Control I/O Slave Module
• Part Number: IMCIS22
• System Compatibility: ABB Bailey INFI 90 / Symphony
• Net Weight: 0.2 kg
• Shipping Weight: 1.5 kg
• Power Supply: 24 VDC (system backplane)
• Signal Types Supported:
  • Digital Inputs (24 VDC, 48 VDC, 125 VDC, 120 VAC)
  • Analog Inputs (1–5 VDC)
  • Analog Outputs (configuration dependent)
  • Digital Outputs (24 VDC open collector / relay depending on configuration)
• Mounting: Standard INFI 90 Module Mounting Unit (MMU)
• Communication: I/O Expander Bus
• Function: Mixed Control I/O (Analog + Digital)

Key Features

• Combines analog and digital I/O functions in a single module
• Supports flexible field signal interfacing for control applications
• Provides direct communication with INFI 90 controller modules
• Designed for distributed process control architectures
• Supports industrial signal isolation and filtering functions
• Enables compact I/O integration in rack systems

Installation Notes

• Install in a standard INFI 90 Module Mounting Unit
• Connect field wiring through appropriate termination units
• Verify backplane and I/O expander bus connection before commissioning
• Ensure correct grounding and shielding of field wiring
• Confirm module configuration and addressing before operation
• Follow ABB INFI 90 installation procedures for commissioning
