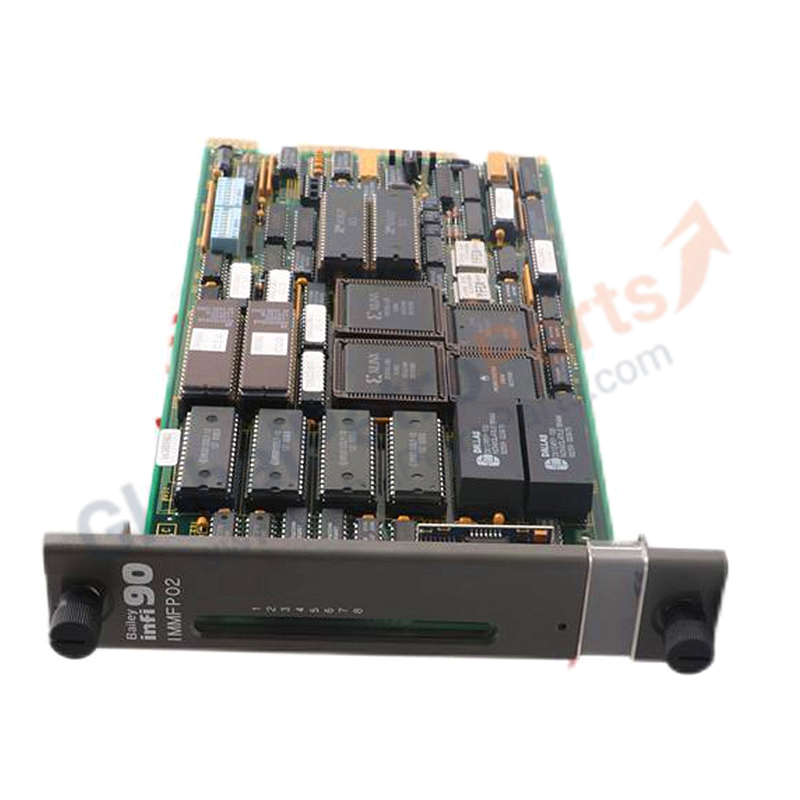

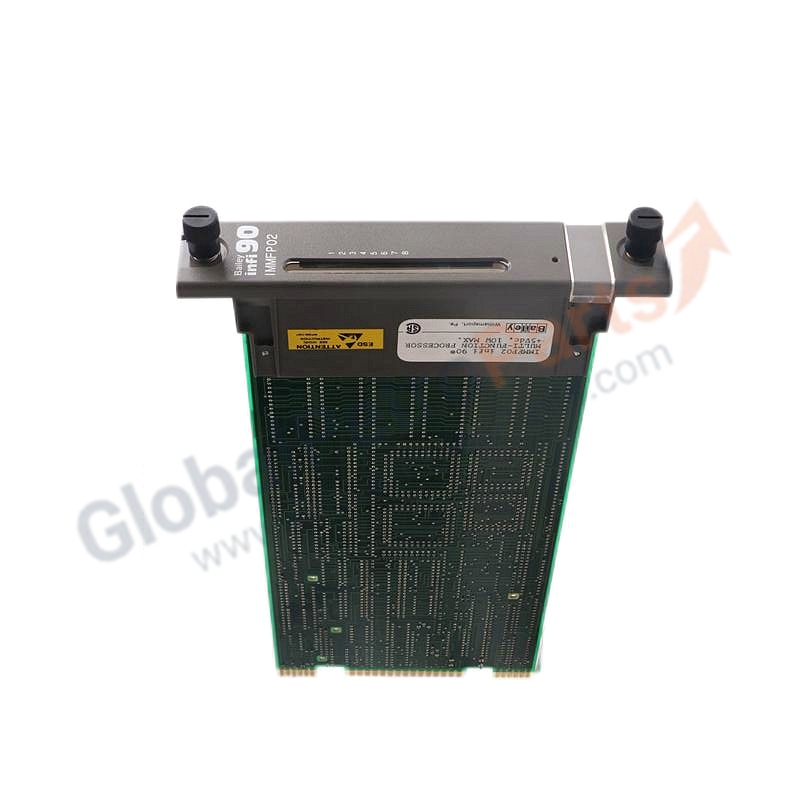

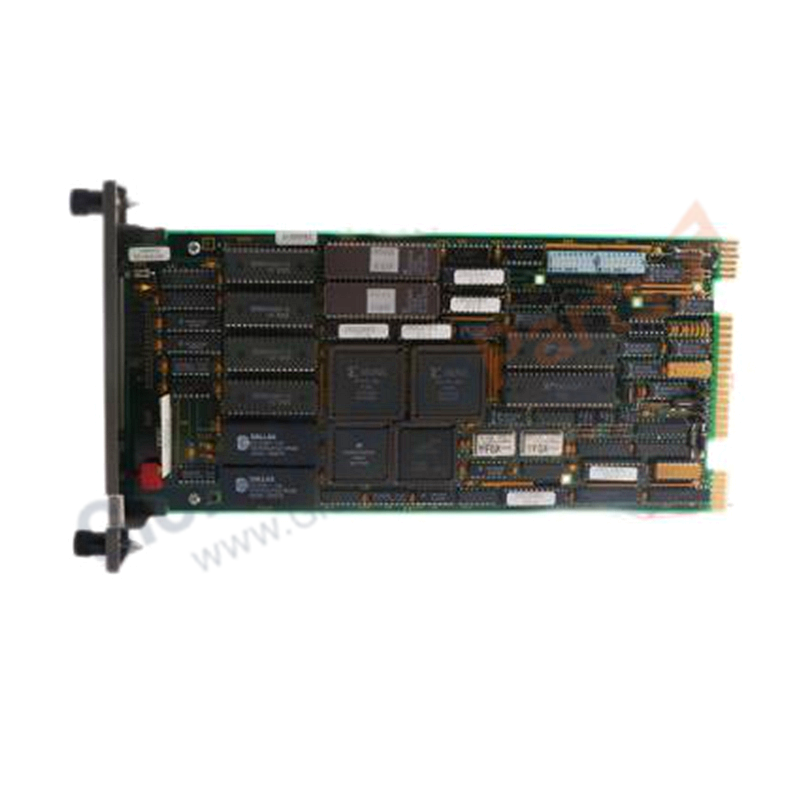

ABB Bailey IMMFP02 Multi-Function Processor Module

Overview

The ABB Bailey IMMFP02 is a Multi-Function Processor Module designed for INFI 90 OPEN process control systems. It executes control strategies, performs data acquisition and processing functions, and provides communication with other modules and system nodes within the distributed control architecture.

Technical Specifications

• Product Type: Multi-Function Processor Module
• Part Number: IMMFP02
• System Compatibility: ABB Bailey INFI 90 OPEN
• Processor Type: 32-bit Microprocessor
• Memory Type: RAM, ROM, and Non-Volatile Memory
• Control Functions: Regulatory, Sequential, Batch, and Logic Control
• Communication Interface: Controlway Communication Link
• Redundancy Support: Yes
• Power Supply: +5 VDC
• Operating Temperature: 0°C to 70°C
• Relative Humidity: 5% to 95% Non-Condensing
• Atmospheric Pressure: Sea Level to 3000 m
• Mounting Requirement: One Slot in a Standard Module Mounting Unit

Key Features

• Executes multiple process control strategies within a single module
• Supports distributed control system architectures
• Provides communication with other INFI 90 OPEN modules
• Supports redundant processor configurations
• Performs continuous self-diagnostic monitoring
• Supports custom and application-specific control programs
• Integrates with ABB Bailey process management systems

Installation Notes

• Install the module in a designated slot within the module mounting unit
• Configure module parameters according to system requirements before commissioning
• Connect communication interfaces according to ABB installation documentation
• Ensure proper grounding and shielding practices
• Verify processor operation using system diagnostic functions
• Maintain environmental conditions within the specified operating limits
