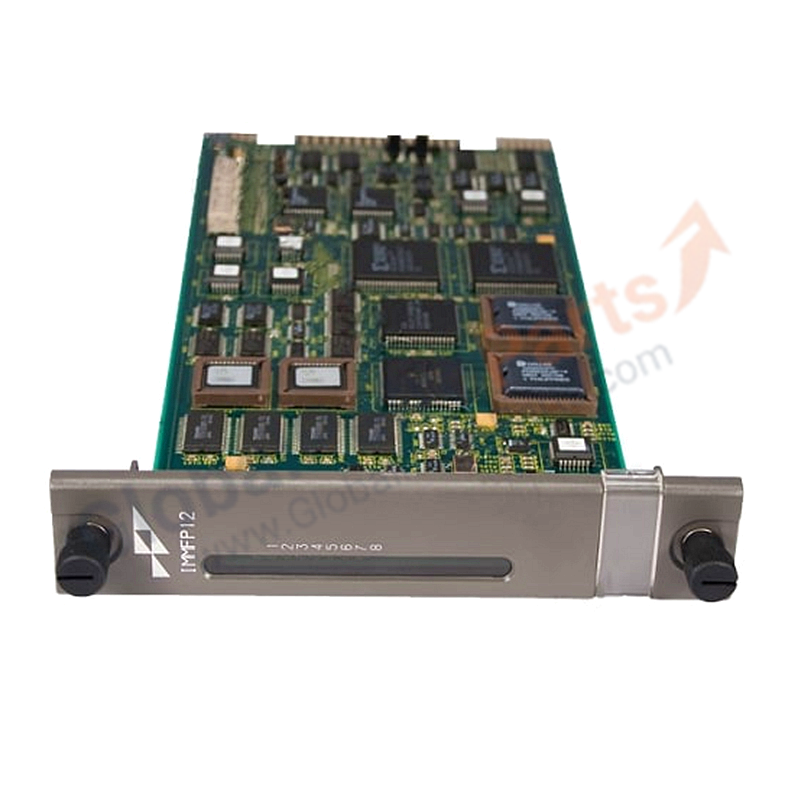

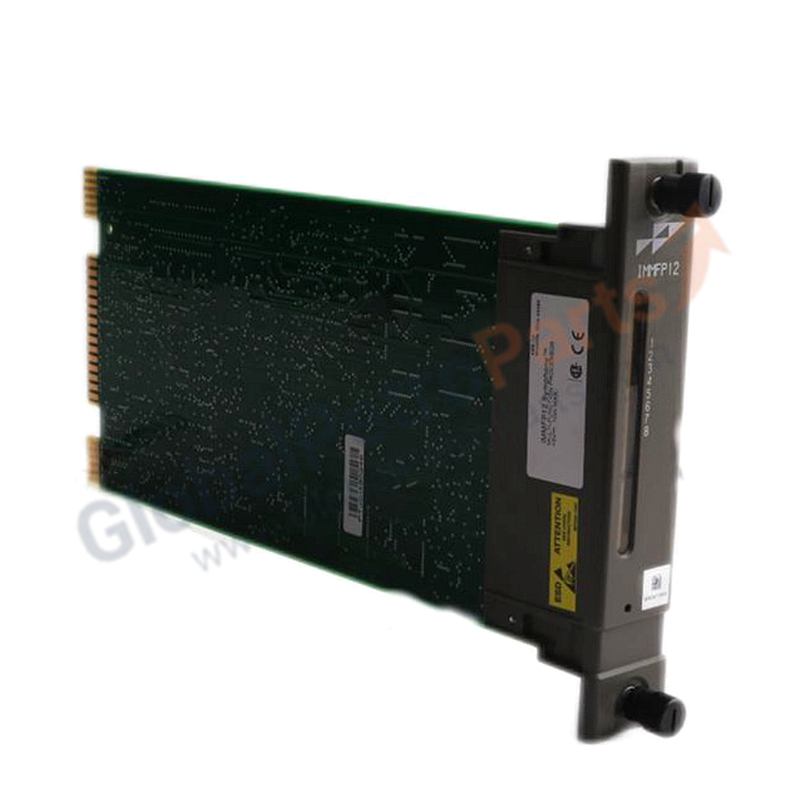

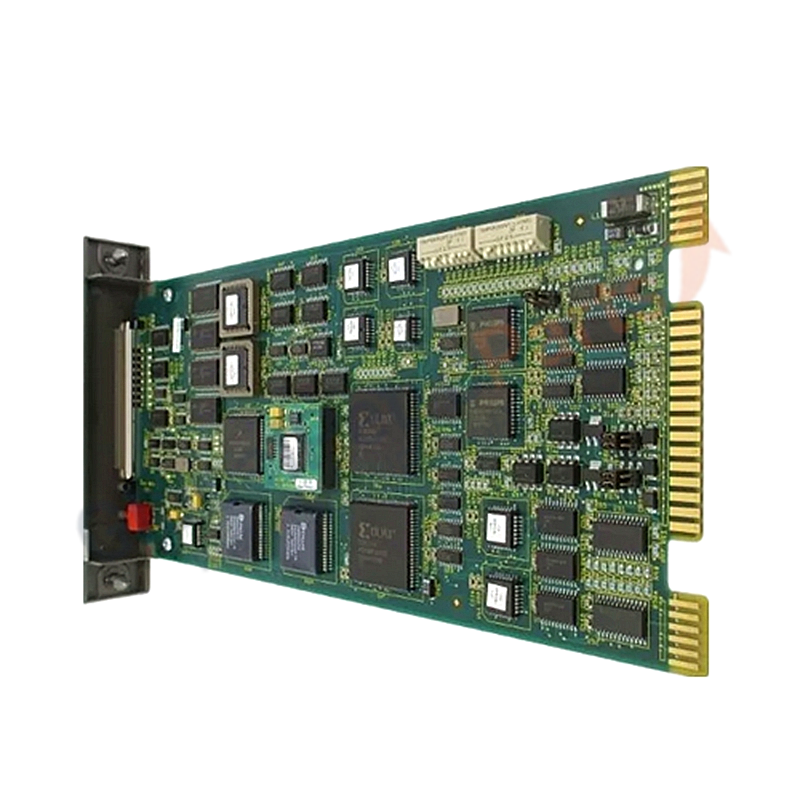

ABB Bailey IMMFP12 Multifunction Processor Module

Overview

The ABB Bailey IMMFP12 is a Multi-Function Processor Module designed for INFI 90 OPEN process control systems. It executes analog, sequential, batch, and advanced control strategies while providing data acquisition, information processing, and peer-to-peer communication capabilities.

Technical Specifications

• Product Type: Multi-Function Processor Module
• Part Number: IMMFP12
• System Compatibility: ABB Bailey INFI 90 OPEN
• Microprocessor: 32-bit Processor
• Processor Frequency: 16 MHz
• ROM Memory: 512 KB
• RAM Memory: 512 KB
• NVRAM Memory: 256 KB
• Power Supply: +5 VDC
• Current Consumption: 2 A
• Power Consumption: 10 W Typical
• Serial Ports: Two RS-232-C Ports or One RS-232-C and One RS-485 Port
• Serial Communication Rate: Up to 19.2 kbaud
• Redundant Communication Link: 1 Mbaud Serial Link
• Maximum Station Support: 64 IISAC01 Stations or 8 NDCS03/NDIS01 Stations
• Operating Temperature: 0°C to 70°C
• Relative Humidity: 5% to 95% Non-Condensing
• Atmospheric Pressure: Sea Level to 3000 m
• Mounting Requirement: One Slot in Standard INFI 90 Module Mounting Unit

Physical Specifications

• Height: 177.8 mm
• Width: 35.5 mm
• Depth: 298.4 mm
• Shipping Weight: 1.5 kg

Key Features

• Executes analog, sequential, batch, and advanced control applications
• Provides peer-to-peer communication within INFI 90 OPEN systems
• Supports redundant processor configurations through a 1 Mbaud communication link
• Supports programming using Function Codes, C, BASIC, Batch 90, and Ladder Logic
• Performs continuous self-diagnostics during operation
• Supports communication with multiple remote control and operator stations
• Processes control algorithms and data acquisition functions within a single module

Installation Notes

• Install the module in a designated slot within a standard INFI 90 module mounting unit
• Connect serial communication interfaces according to ABB wiring documentation
• Verify processor configuration before placing the module into service
• Ensure proper cabinet grounding and shielding practices
• Maintain the specified environmental operating conditions during operation
• Verify communication status and diagnostic indicators during commissioning
