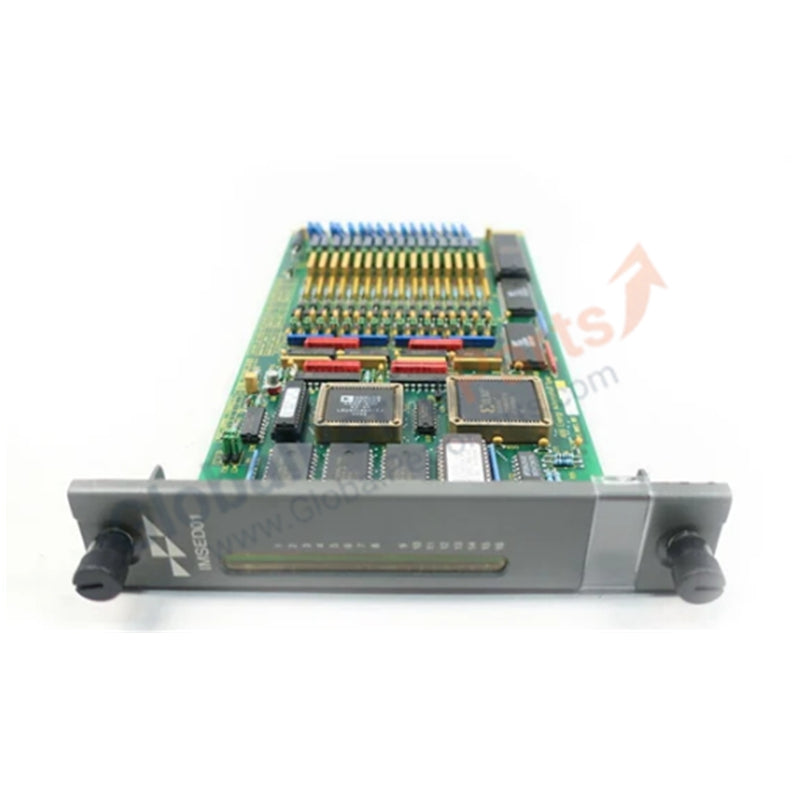

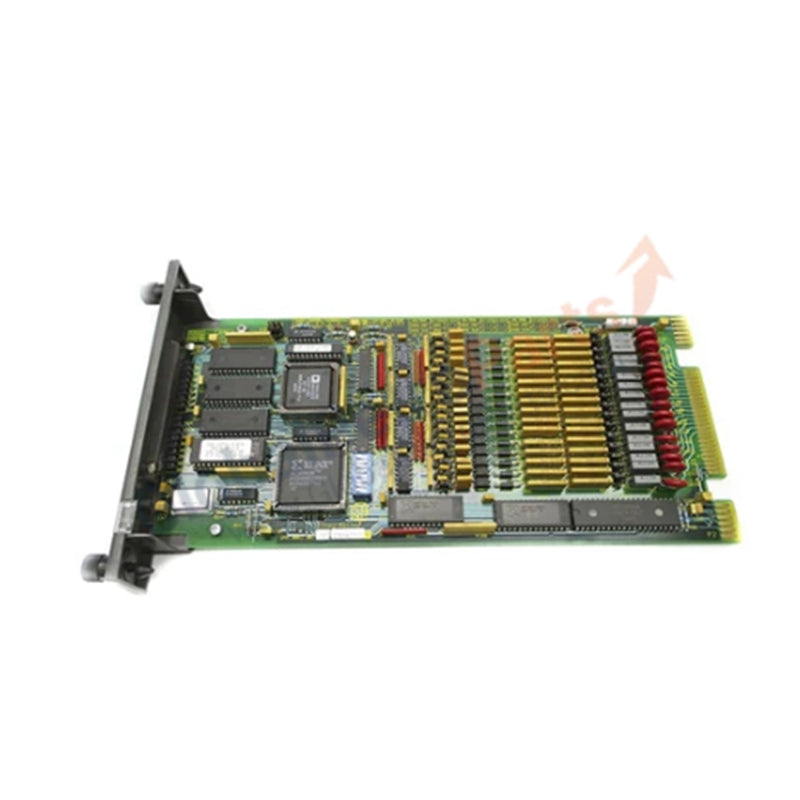

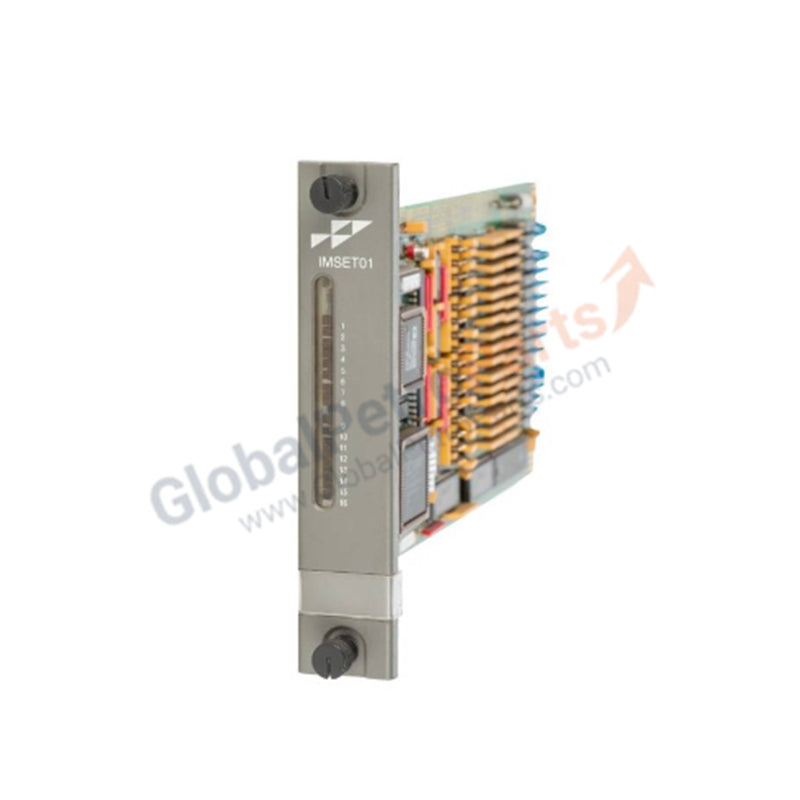

ABB Bailey IMSET01 | Sequence of Event Timing Module | I/O Synchronization Unit

Product Description

The ABB Bailey IMSET01 Sequence of Event Timing Module is an I/O synchronization unit designed to provide precise time-stamping and event sequencing within Bailey control systems. By ensuring accurate time synchronization, this module supports reliable event logging and system diagnostics in distributed automation environments.

Technical Specifications

• Manufacturer: ABB Bailey

• Model / Product ID: IMSET01

• Product Type: Sequence of Event Timing Module (I/O Module)

• Catalog Description: Sequence of Events Time Synchronization

• Dimensions:

• Depth: 76.2 mm

• Height: 358.14 mm

• Width: 279.4 mm

• Construction: Rack-mounted module for Bailey control systems

• Functionality: Provides time synchronization and event sequencing for system monitoring and diagnostics

Application Scenarios

• Event logging in Bailey INFI 90 and NET 90 distributed control systems

• Industrial automation environments requiring precise time synchronization

• Process monitoring systems where accurate event sequencing is critical

FAQ

Q: What is the primary function of the IMSET01 module?  A: It synchronizes event timing and provides accurate time-stamping for system diagnostics and monitoring.

Q: What type of module is the IMSET01?  A: It is an I/O module designed for sequence of event timing.

Q: What are the physical dimensions of the IMSET01?  A: The unit measures 76.2 mm × 358.14 mm × 279.4 mm.

Q: Is the IMSET01 compatible with Bailey control systems?  A: Yes, it is designed for integration into Bailey distributed control platforms.
