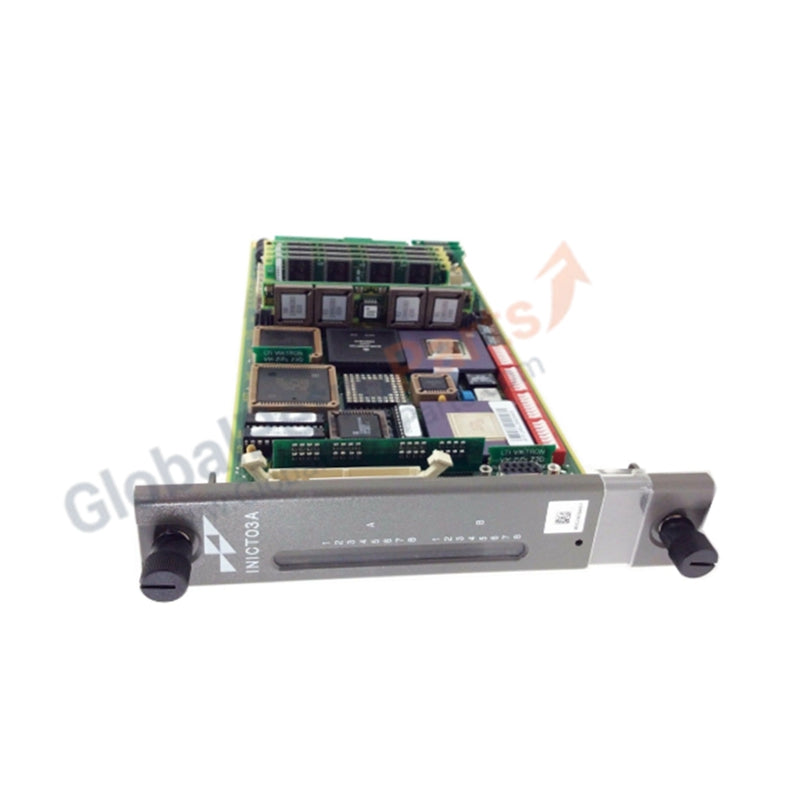

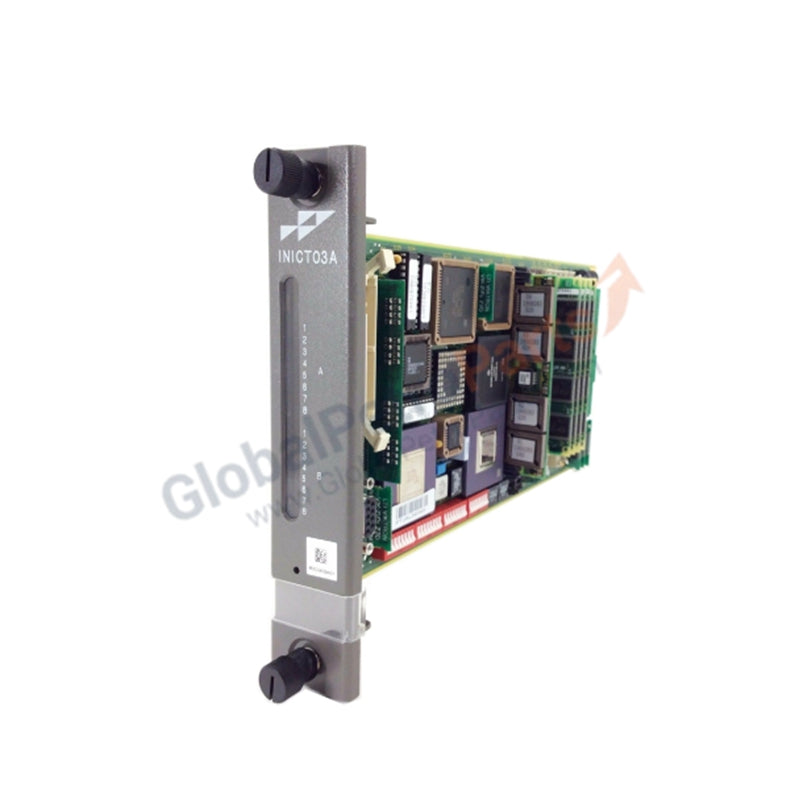

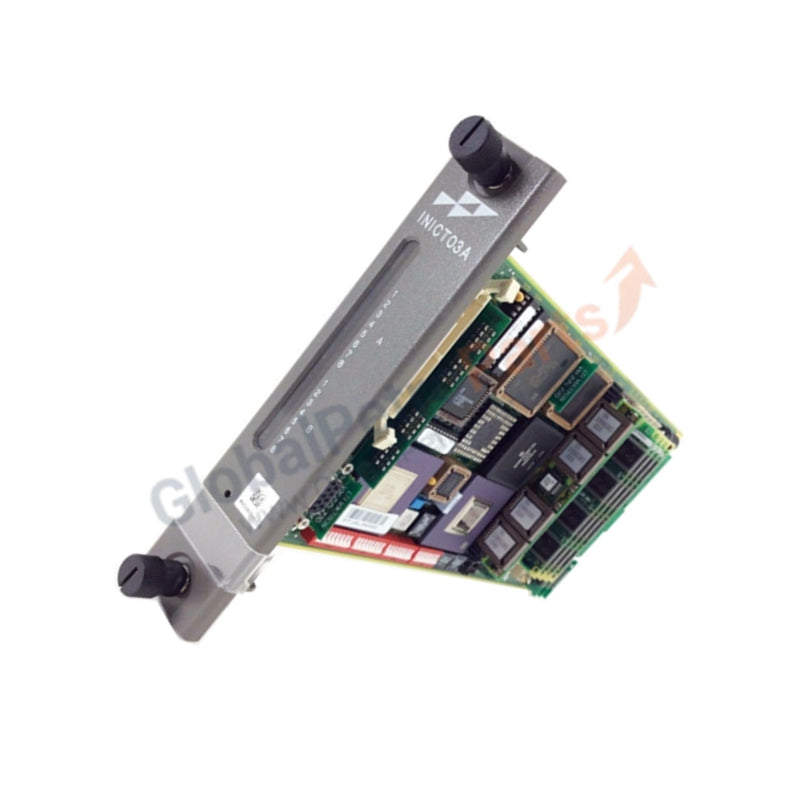

ABB Bailey INICT03A | Cnet-to-Computer Transfer Module | Communication Interface

Product Description

The ABB Bailey INICT03A Cnet-to-Computer Transfer Module is a high-capacity communication interface designed to connect Bailey control systems with host computers. It provides flexible data transfer options through RS-232-C or SCSI communication, supporting large tag capacities and fast processing speeds. With robust memory resources and reliable power requirements, the module ensures efficient integration into industrial automation environments.

Technical Specifications

• Manufacturer: ABB Bailey

• Model / Product No.: INICT03A

• Product Type: Cnet-to-Computer Transfer Module

• Memory Capacity:

• 512 KB ROM

• 2 MB RAM

• Power Requirements: +5 VDC at 2 A (10 W typical)

• Communication Rates:

• RS-232-C: User-selectable up to 19.2 kbaud

• SCSI: Up to 4 MB/sec

• Tag Capacity (Point Definitions): 30,000

• Form Factor: Single-slot PCB for Bailey control systems

• Shipping Weight: 1.5 kg

Application Scenarios

• Host computer integration with Bailey control systems

• Industrial automation requiring high-speed communication interfaces

• Large-scale process control environments with extensive tag definitions

• Systems needing flexible RS-232-C or SCSI connectivity

FAQ

Q: What is the primary function of the INICT03A?  A: It transfers data between Bailey control systems and host computers via RS-232-C or SCSI interfaces.

Q: What is the maximum tag capacity supported?  A: The module can handle up to 30,000 point definitions.

Q: What communication speeds are available?  A: RS-232-C supports up to 19.2 kbaud, while SCSI allows up to 4 MB/sec.

Q: What are the memory specifications?  A: The module includes 512 KB ROM and 2 MB RAM.
