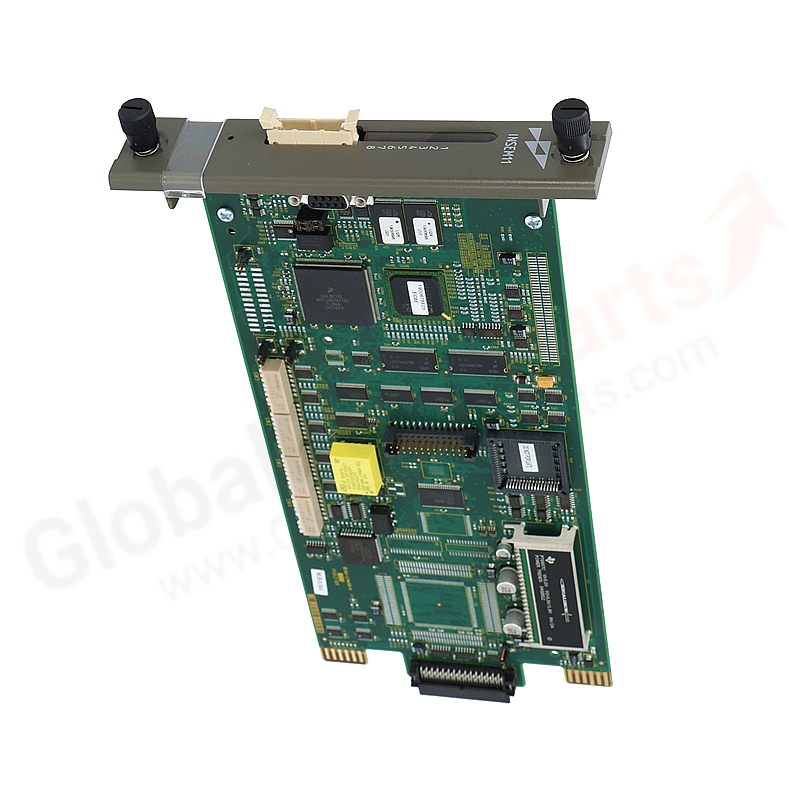

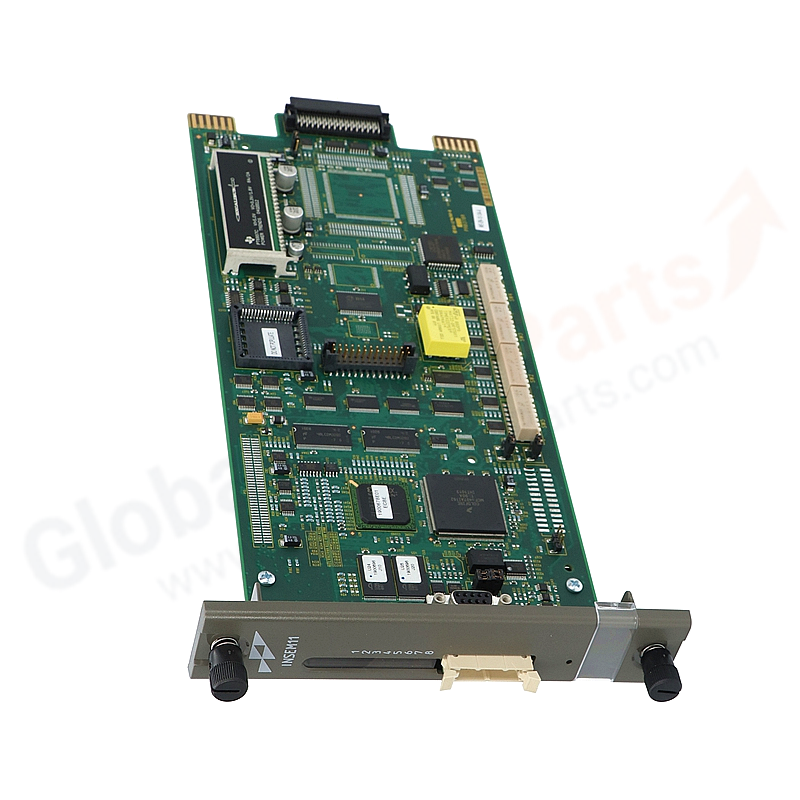

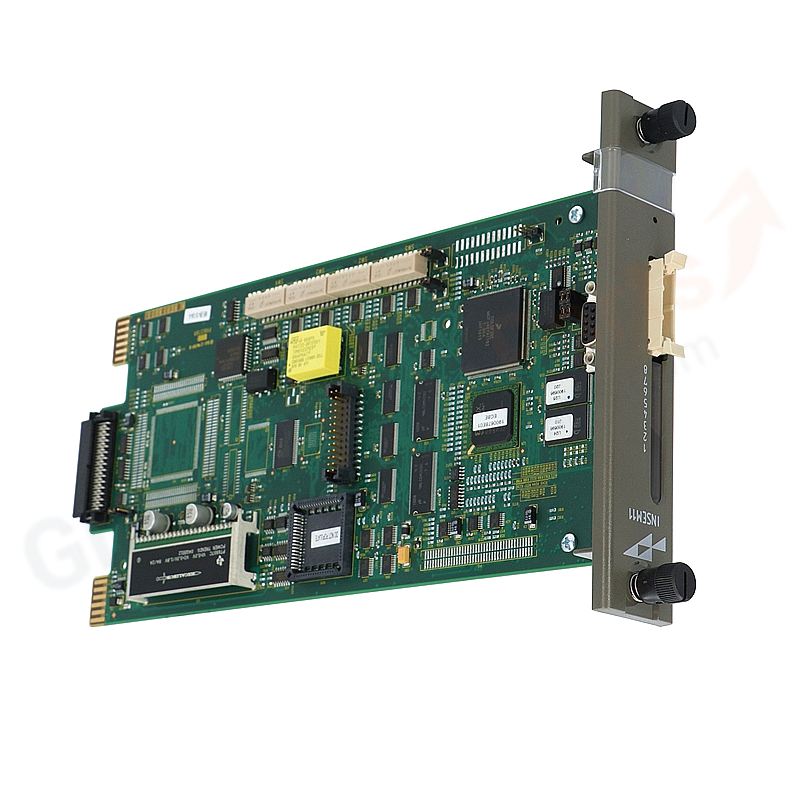

ABB Bailey INSEM11 Sequence of Events Master Module for INFI 90

Product Overview

The ABB Bailey INSEM11 is a Sequence of Events Master Module for the INFI 90 and Symphony DCS product families. It serves as the central time-keeping and event coordination unit for sequence of events (SOE) recording systems, capturing high-resolution time-stamped data from distributed digital inputs across the control network. The INSEM11 is critical for post-event analysis, fault diagnosis, and compliance reporting in power generation and industrial process applications.

Key Technical Specifications

• Product Type: Sequence of Events Master Module
• Series: ABB Bailey INFI 90 / Symphony
• Function: SOE time-keeping and event coordination
• Assembly Number: 6644375A5
• Mounting: INFI 90/Symphony Module Mounting Unit (MMU)
• Origin: Sweden / USA

Related SOE Modules

• INSEM01 — Sequence of Events Master
• INSEM11 — Sequence of Events Master Module
• IMSED01 — Sequence of Events Digital Inputs Module
• IMSET01 — Sequence of Event Time Keeper Module
• IMSER02 — Sequence of Events Recorder

Key Features

• High-Resolution Time Stamping: Captures events with millisecond-level accuracy
• Central Coordination: Synchronizes SOE data from multiple distributed input modules
• Event Recording: Comprehensive logging of digital state changes for analysis
• Fault Diagnosis: Enables rapid identification of event sequences during upsets
• Compliance Reporting: Supports regulatory reporting requirements for power utilities

Applications

• Power generation event sequence recording
• Substation fault analysis
• Industrial process upset investigation
• Regulatory compliance and audit reporting
• Protection system performance verification

Installation Guide

1. Install INSEM11 in MMU slot
2. Connect to INFI-NET or Plant Loop for distributed SOE module communication
3. Wire IRIG-B or GPS time synchronization input
4. Configure SOE scan rates and time stamp resolution
5. Verify time synchronization accuracy across all SOE modules

FAQ

Q: What time resolution does INSEM11 provide?
A: Millisecond-level time stamping for precise event sequencing.

Q: Does it require external time synchronization?
A: Yes, IRIG-B or GPS time synchronization is recommended for accurate time stamping.

Q: What input modules work with INSEM11?
A: IMSED01 (Sequence of Events Digital Inputs Module) and IMSET01 (Time Keeper Module).

Model Selection Tips

• INSEM11 = Sequence of Events Master Module
• Pair with IMSED01 digital input modules for complete SOE system
• Verify time synchronization source (IRIG-B/GPS) availability
• For standard event recording, INSEM01 may be sufficient
• Confirm MMU slot availability for SOE master module
