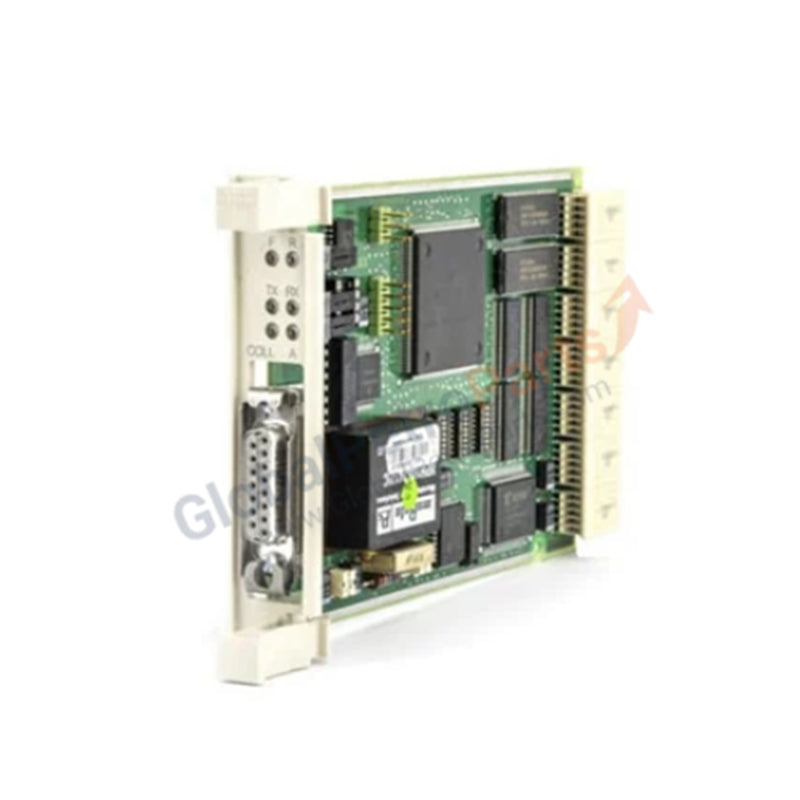

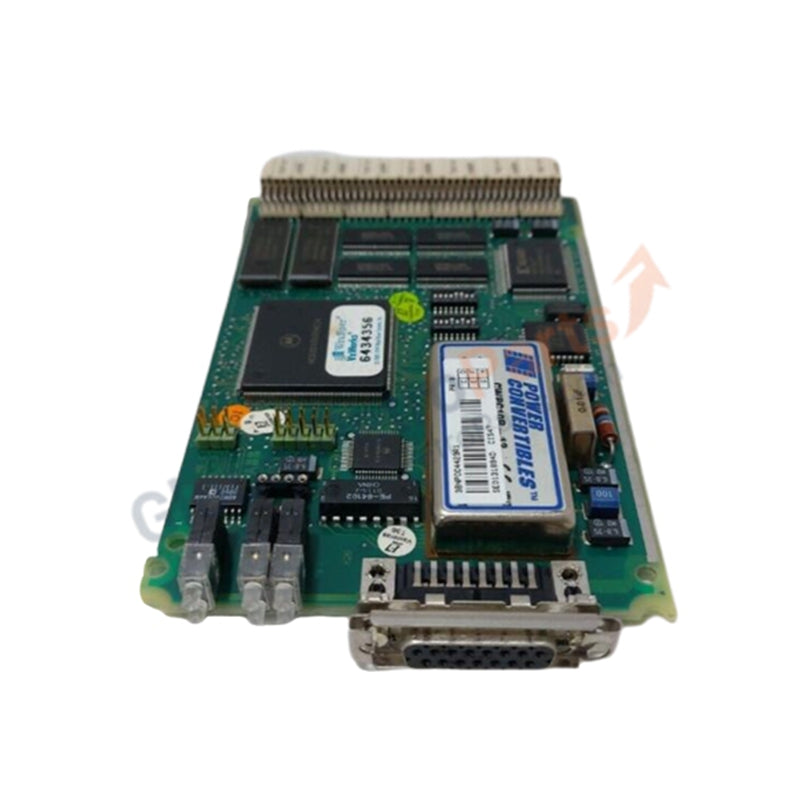

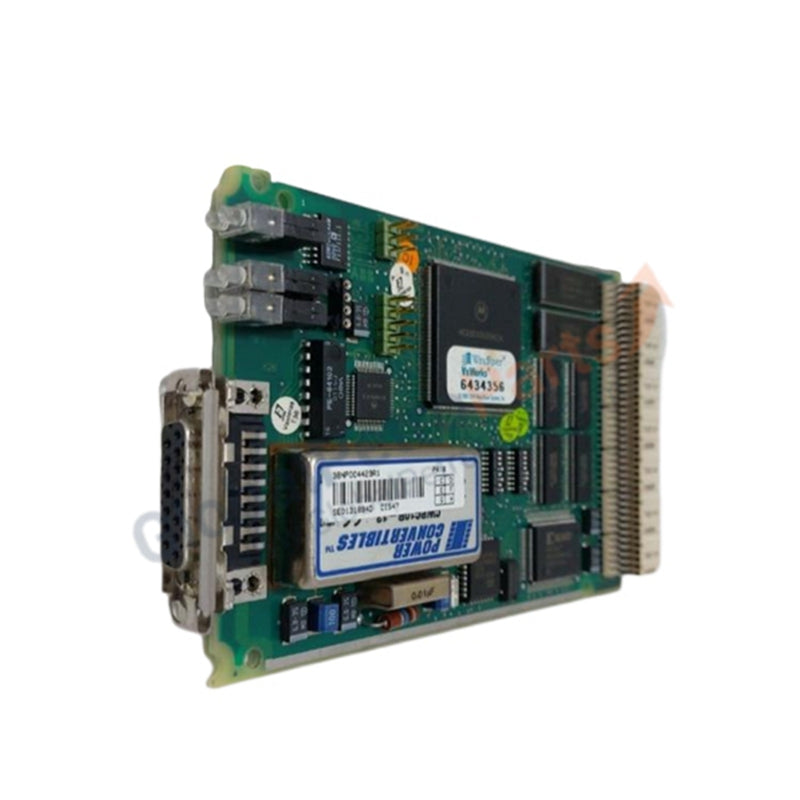

ABB CI547 3BNP004429R1 Communication Board with Slave Processor

Product Description

The ABB CI547 3BNP004429R1 is a communication module designed to optimize system performance by offloading tasks from the central processor PM150. Equipped with a dedicated slave processor, this board enhances communication efficiency within ABB control systems. Compact in size and lightweight, the CI547 is engineered for reliable integration and compliance with EU environmental directives.

Technical Specifications

• Manufacturer: ABB

• Type Designation: CI547

• Catalog Number / Model: 3BNP004429R1

• Product Type: Communication Module

• Medium Description: Communication Board

• Exchange Number: EXC3BNP004429R1

• Dimensions:

• Depth/Length: 125 mm

• Height: 30 mm

• Width: 257 mm

• Weight: 0.165 kg

• Technical Features:

• Includes slave processor to reduce workload from PM150 central processor

• Environmental Compliance:

• RoHS: EU Directive 2011/65/EU

• WEEE Category: 5 (Small Equipment, <50 cm)

• SCIP Reference: 54d0bb6e-68f5-4083-9b71-f6072c3f8e33 (Sweden)

• Battery Content: None

Application Scenarios

• Communication management in ABB control systems

• Workload distribution between central and slave processors

• Industrial automation requiring reliable communication modules

FAQ

Q: What is the main function of the CI547 board?  A: It includes a slave processor to reduce the workload from the PM150 central processor.

Q: What are the dimensions of the CI547 module?  A: 125 mm × 257 mm × 30 mm.

Q: Is the CI547 RoHS compliant?  A: Yes, it complies with EU Directive 2011/65/EU.

Comparison with Similar Models

• CI547 (3BNP004429R1): Communication board with slave processor.

• CI522: Standard communication board without slave processor.

• CI570: Advanced communication module with extended processing capability.
