ABB CI870K01 3BSE058590R1 VIP Communication Interface Kit | AC 800M

Product Overview

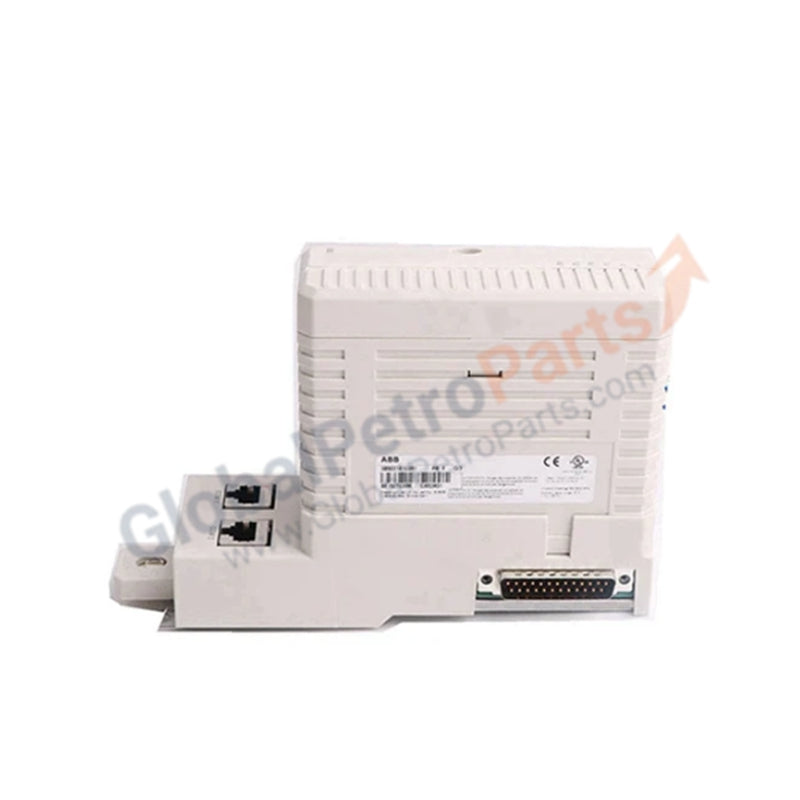

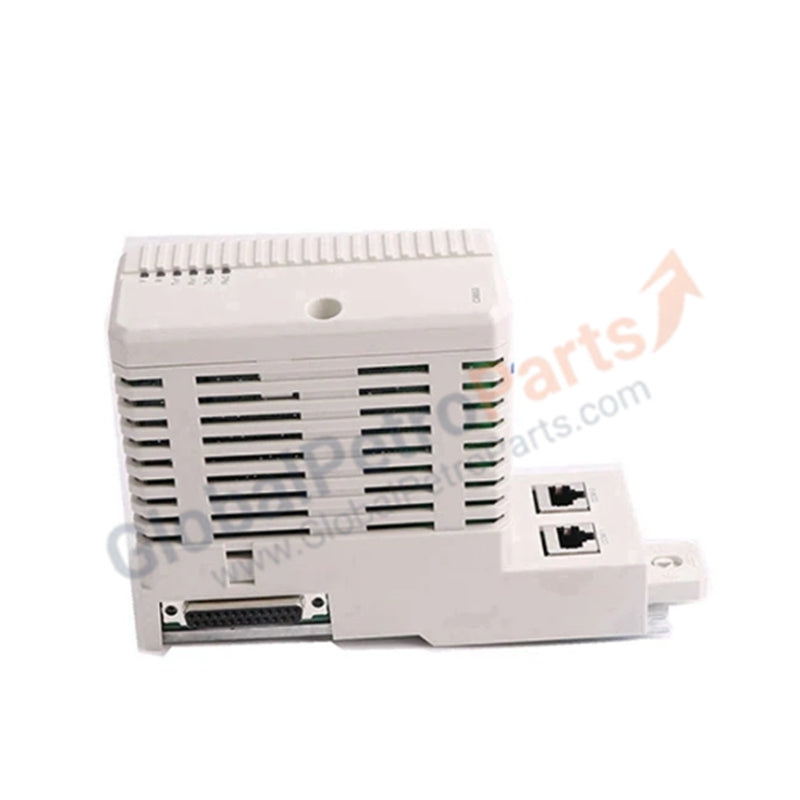

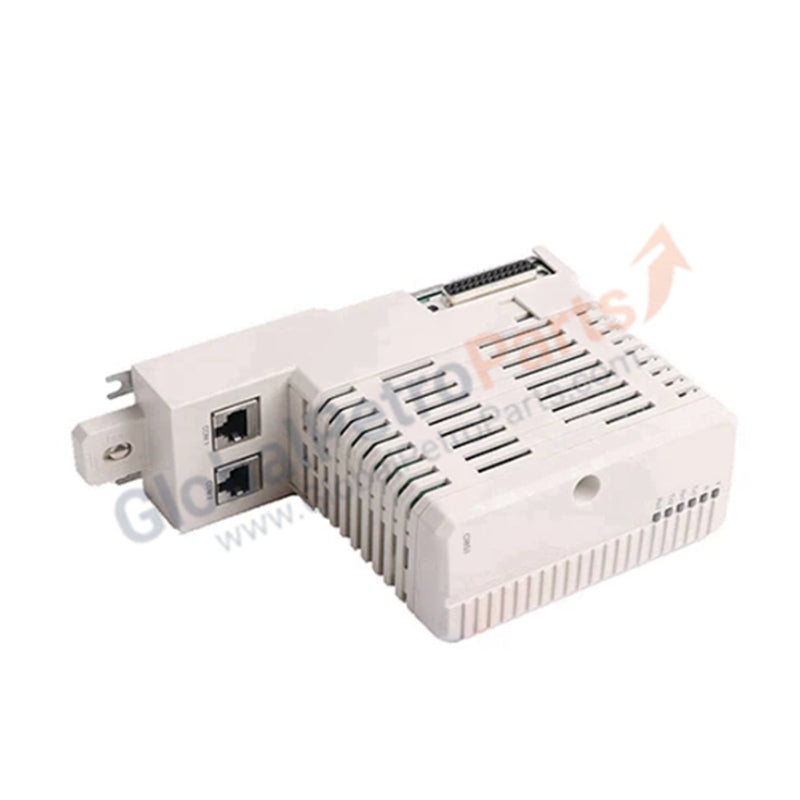

The ABB CI870K01 (3BSE058590R1) serves as the high-speed VIP (Virtual IP) Communication Interface for the AC 800M controller series. This interface facilitates seamless peer-to-peer data exchange between controllers and external systems using the VIP protocol. By offloading communication tasks from the main CPU, this module ensures deterministic control performance across complex industrial networks. We provide this hardware as 100% brand new original equipment, specifically packaged to support the maintenance and expansion of established System 800xA architectures.

Technical Specifications

The CI870K01 functions as a complete assembly, integrating the processing electronics with the standard mounting interface for the CEX-bus.

• Article Number: 3BSE058590R1

• Module Type: CI861 VIP Communication Interface

• Baseplate Type: TP853 (60 mm width)

• Protocol Support: VIP (Virtual IP)

• System Compatibility: ABB AC 800M / PEC

• Power Consumption: 24 V DC (via CEX-bus)

• Net Weight: 0.621 kg

• Dimensions (W x H x D): 59 mm x 127.5 mm x 185 mm

• Batteries: 0 (Maintenance-free design)

• WEEE Category: 5. Small Equipment

Engineering Advantages

• Dedicated VIP Processing: The CI870K01 manages high-traffic VIP protocol stacks independently. This prevents communication overhead from impacting the controller’s task execution time, which is critical for high-speed process loops.

• Modular CEX-Bus Expansion: The unit snaps directly onto the AC 800M CEX-bus via the included TP853 baseplate. This architecture allows for rapid scaling of communication ports without requiring complex cabinet rewiring or additional power distribution.

• Zero-Battery Architecture: This module utilizes non-volatile memory and requires no internal batteries. This design eliminates a common point of failure and removes the need for periodic maintenance shutdowns to replace backup cells.

• Robust Industrial Protection: The hardware withstands the electrical noise typical of motor control centers and power generation environments. The TP853 baseplate provides a secure mechanical lock, ensuring signal continuity even in high-vibration installations.

FAQs

• What components arrive with the CI870K01 kit?

  The kit includes one CI861 VIP Communication Interface module and one TP853 baseplate. We guarantee both items are 100% Brand New and arrive in original ABB factory packaging with all security seals intact.

• Can I swap the CI861 module while the baseplate is mounted?

  Yes. The modular design allows you to remove the active CI861 module from the TP853 baseplate for repair or upgrade without disturbing the CEX-bus connection or the fixed mounting of the baseplate.

• Does this module support RoHS 2 2011/65/EU compliance?

  No. This specific product is classified as non-RoHS compliant. It serves primarily as a spare part or functional update for existing systems placed on the market before regulatory deadlines.

• Is the CI870K01 compatible with all AC 800M CPUs?

  The CI870K01 integrates with AC 800M and PEC controllers. Ensure your Control Builder software version includes the necessary communication libraries to recognize the VIP interface on the CEX-bus.
