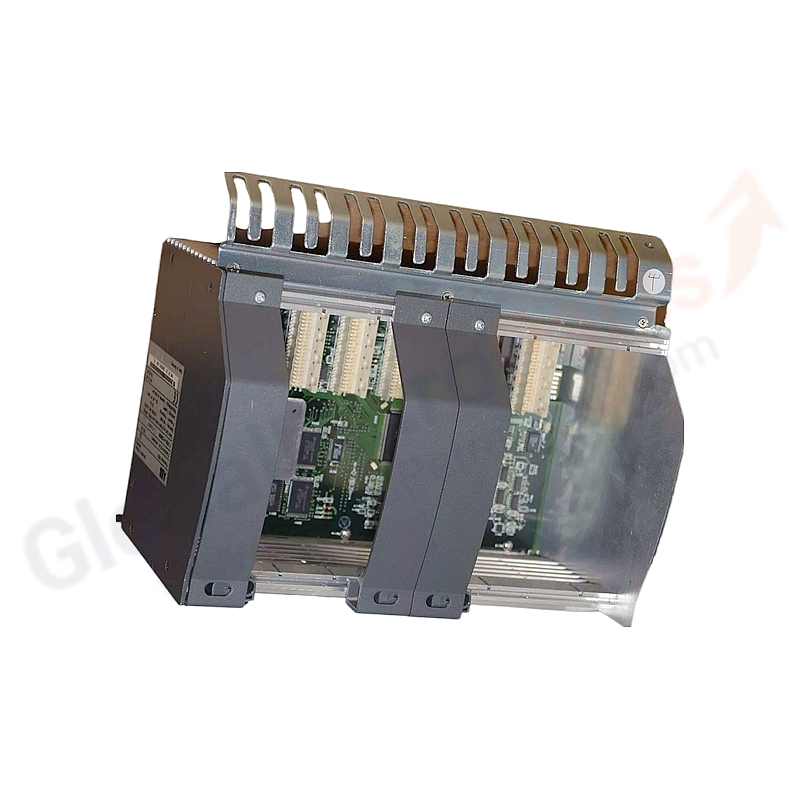

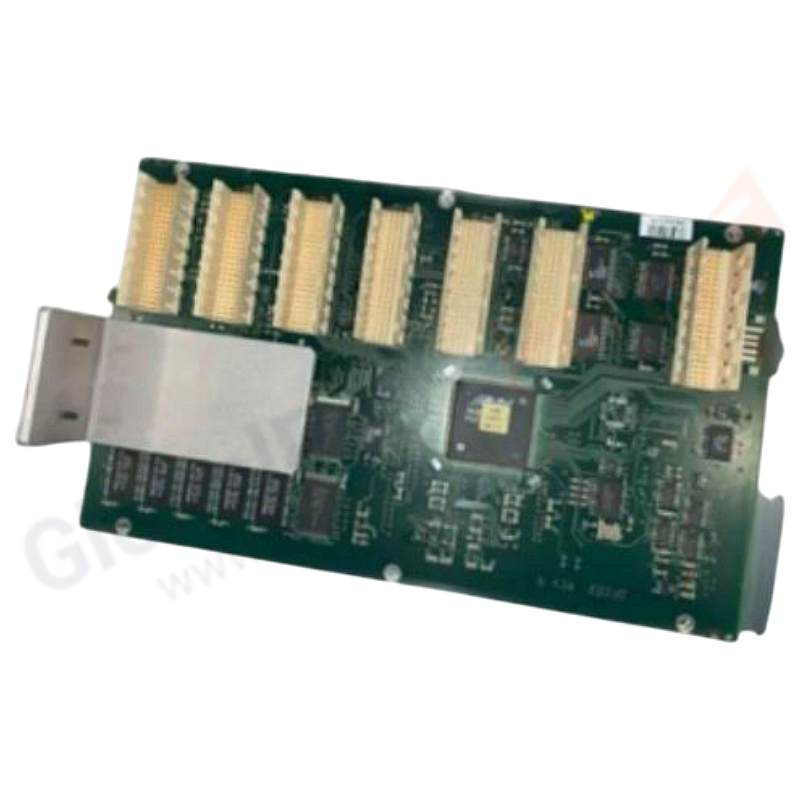

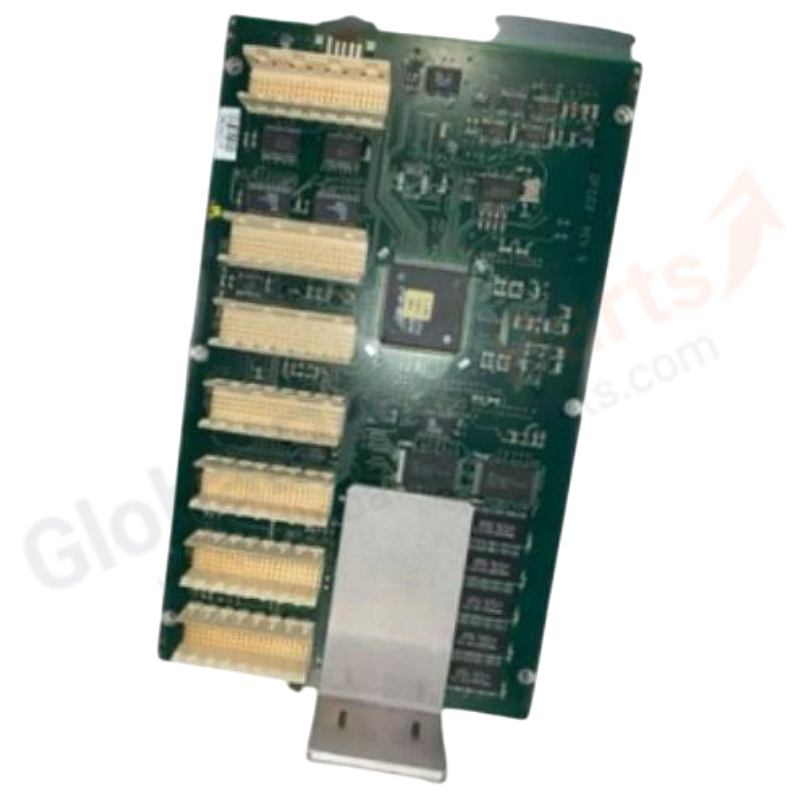

ABB DFC02 – FieldController Main Board

The ABB DFC02 is a FieldController main board that serves as the central processing unit for field control systems in industrial automation. It manages data flow, signal processing, and real-time control functions between connected devices and the host system.

• Processing Speed: 1 GHz
• RAM: 2 GB DDR3
• Flash Memory: 8 GB
• Operating Temperature: −20°C to +60°C
• Power Consumption: 200 W
• Weight: 0.3 kg
• Product Type: Field Controller Module
• Origin: Germany

Technical Specifications

FAQ

1. Primary Function
   The DFC02 functions as the central processing unit in field control systems. It manages real-time control, data acquisition, and signal processing for industrial automation applications.
2. System Compatibility
   The board supports flexible communication protocols. It integrates with a wide variety of devices and control systems for efficient system coordination.
3. Environmental Rating
   The module operates in temperatures from −20°C to +60°C. It is designed for reliable performance in harsh industrial environments.
4. Memory Expansion
   The board features 2 GB DDR3 RAM and 8 GB flash memory. This configuration supports demanding real-time processing and data logging applications.

Installation Guide

• Step 1: Power down the control system cabinet. Verify all connected devices are de-energized.
• Step 2: Mount the DFC02 board on the designated standoffs inside the controller enclosure.
• Step 3: Connect fieldbus and communication cables to the board connectors per the wiring diagram.
• Step 4: Apply power and verify boot sequence. Confirm all status LEDs display normal operation.
• Step 5: Download the control program from the engineering station. Verify communication with all field devices.

Selection Tips

Select DFC02 for central field control processing in distributed automation systems. Verify compatibility with existing fieldbus architecture before ordering. The 1 GHz processor and 2 GB RAM configuration supports medium-scale control applications.

ABB DFE03 – 10Base-T Ethernet Module

The ABB DFE03 is an Ethernet communication module designed for industrial automation systems. It provides 10Base-T network connectivity for controller-to-controller and controller-to-SCADA data exchange.

• Interface: 10Base-T Ethernet
• Product Type: Ethernet Communication Module
• Manufacturer: ABB

Technical Specifications

FAQ

1. Network Standard
   The DFE03 supports 10Base-T Ethernet communication. It connects controllers and HMIs to the plant network for data exchange.
2. Compatibility
   The module is designed for ABB industrial automation systems. Verify controller compatibility before installation.
3. Cable Requirements
   Use shielded twisted pair CAT3 or higher cable for 10Base-T connections. Maximum cable length is 100 meters per segment.
4. Configuration
   Network parameters are configured through the controller engineering software. Assign a unique IP address to each module.

Installation Guide

• Step 1: Power down the controller. Insert the DFE03 module into the communication slot.
• Step 2: Connect the RJ45 Ethernet cable to the module port. Route cable away from high-voltage power lines.
• Step 3: Power on the controller. Verify link LED illuminates on the module.
• Step 4: Configure IP address, subnet mask, and gateway in the controller programming software.
• Step 5: Ping the module from the engineering station. Verify data exchange with the SCADA system.

Selection Tips

Choose DFE03 for 10Base-T Ethernet connectivity in legacy ABB automation systems. For 10Base2 thin coax networks, select DFE01. For higher speed requirements, evaluate newer Ethernet modules in the AC500 series.
