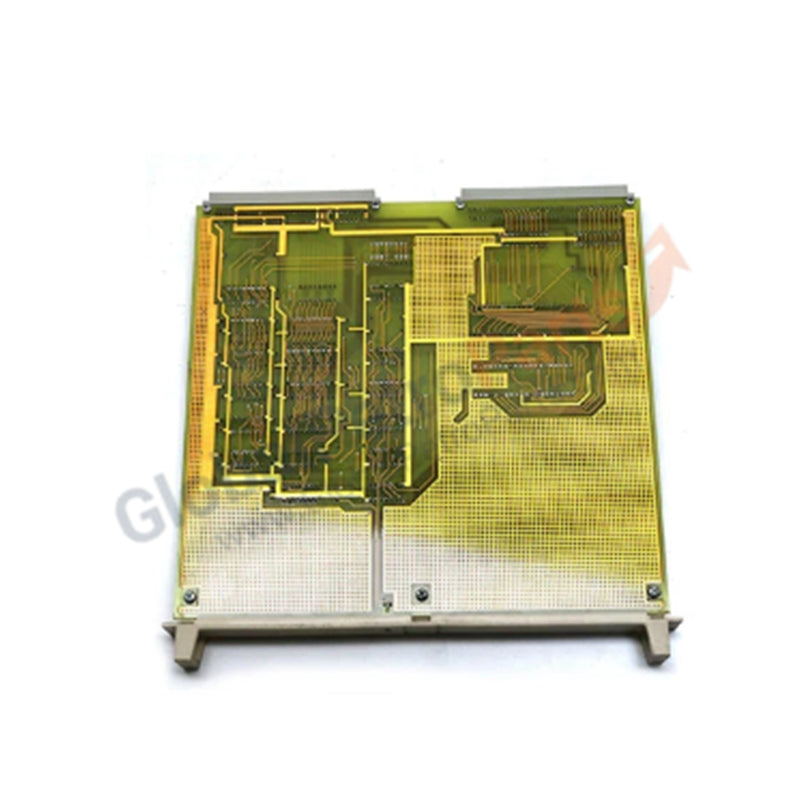

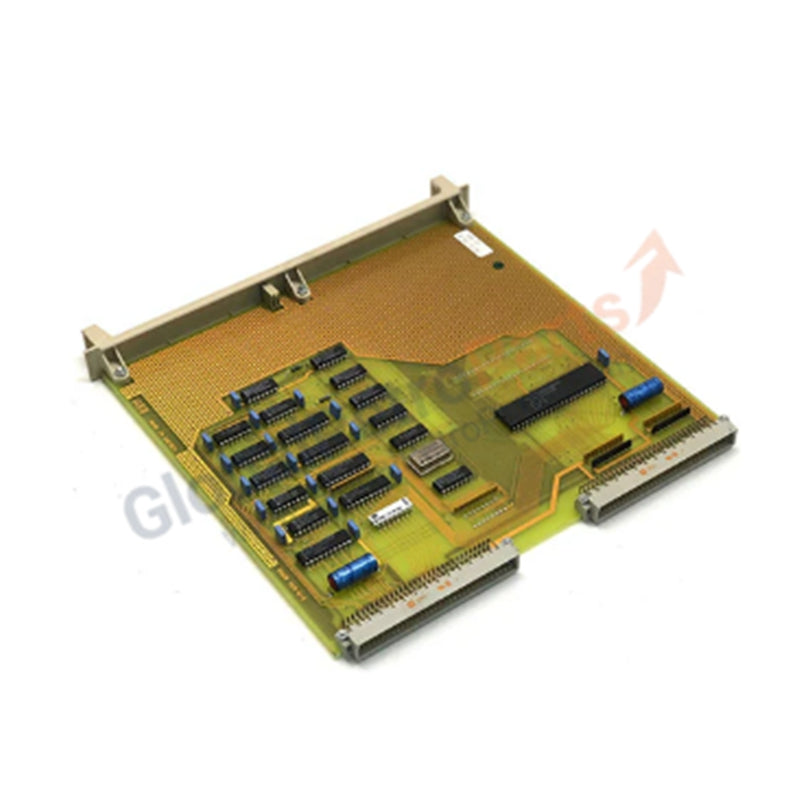

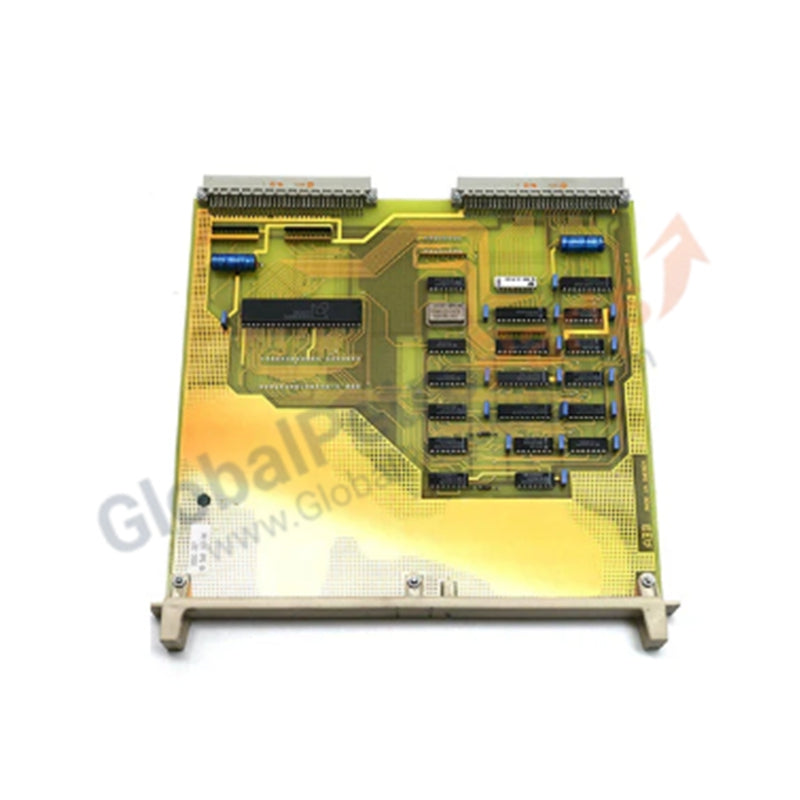

ABB DSQC 227 Digital I/O Board for S4C Controllers

Module Description

The DSQC 227  is a specialized digital I/O interface board engineered specifically for legacy ABB robotics platforms, including the S4, S4C, and S4C+ controller generations. This module functions as a robust hardware bridge, facilitating the exchange of discrete binary signals between the robot's central processing unit and field-level equipment. It is essential for synchronizing the manipulator's movements with peripheral automation components such as sensors, pneumatic actuators, and safety interlocking systems.

Detailed Technical Specifications

The DSQC 227 is designed for high-performance signal processing within 24V DC logic environments. Key electrical and operational parameters include:

• Manufacturer: ABB

• Model Designation: DSQC 227

• Part Number: DSQ C227

• Controller Compatibility: S4, S4C, S4C+

• Input Configuration: 8 Digital Input Channels (24V DC)

• Output Configuration: 8 Digital Output Channels (Transistor-based)

• Logic Voltage Range: 10 V DC to 32 V DC

• Maximum Output Current: Up to 5 A (Aggregate load capacity)

• Communication Protocol: ABB Proprietary Robot Bus / RS-485

• Data Transfer Rate: 1 Mbps

• Visual Diagnostics: Integrated LED indicators for power status and per-channel I/O activity

• Thermal Range: -25°C to +60°C (Operating); -40°C to +85°C (Storage)

• Installation: Support for hot-plugging in compatible hardware revisions

System Integration & Maintenance

The DSQC 227 integrates directly into the controller's internal bus architecture, ensuring deterministic data communication required for high-cycle industrial applications. Its modular design allows maintenance engineers to perform rapid replacements, minimizing downtime in automotive assembly and material handling cells. When deploying the DSQC 227, ensure that the controller firmware is configured to recognize the expanded I/O map to prevent addressing conflicts.

Functional Comparison & FAQ

How many DSQC 227 boards can be added to a single S4C cabinet?

The number of DSQC 227 modules is limited by the available slots on the internal bus and the power budget of the 24V supply. Most standard configurations support multiple boards to scale I/O capacity.

Is the DSQC 227 compatible with the newer IRC5 controllers?

Generally, the DSQC 227 is intended for legacy S4-based systems. While some conversion kits exist, modern IRC5 controllers typically utilize the DSQC 652 or similar DeviceNet-based I/O modules for peripheral control.
