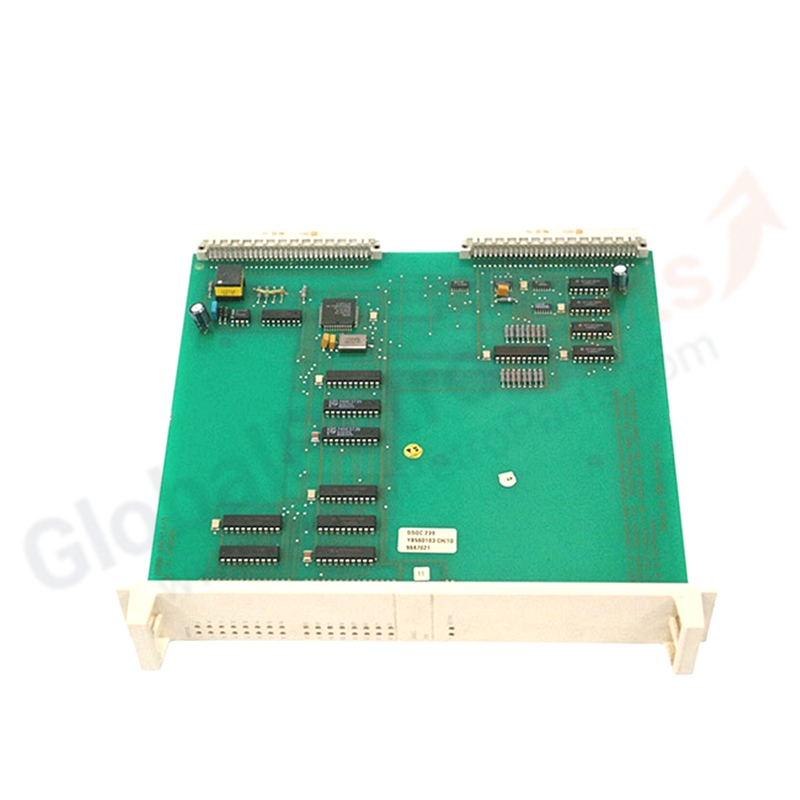

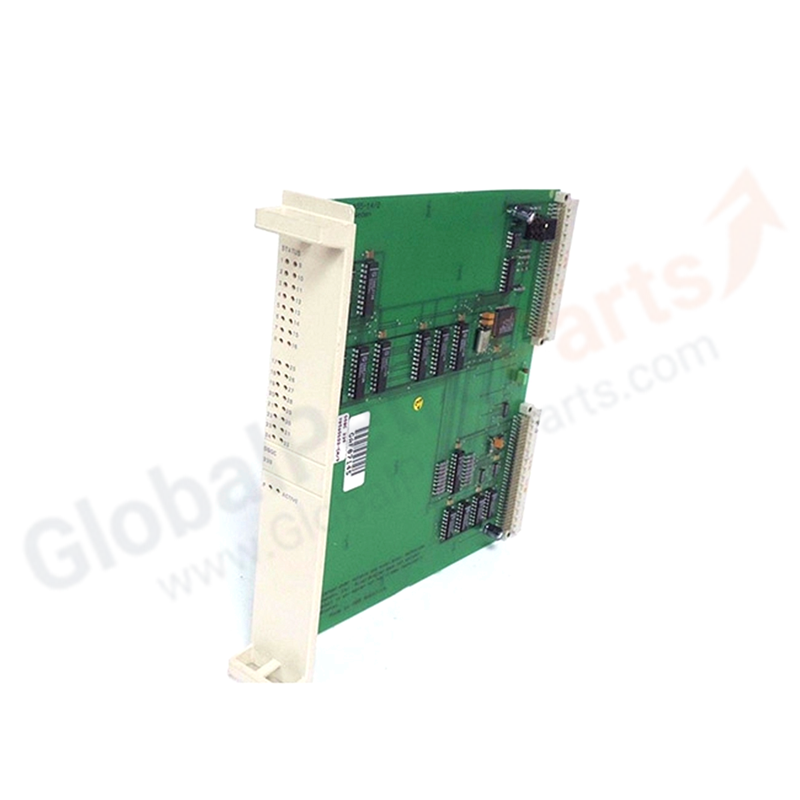

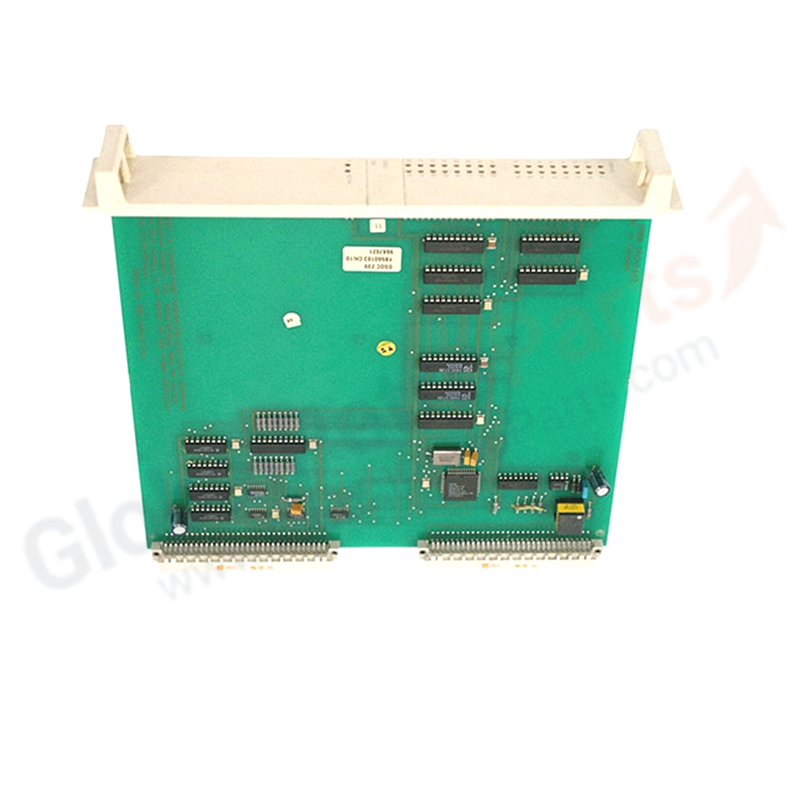

ABB DSQC 239 YB560103-CH/10 Remote I/O Board

Product Overview

The ABB DSQC 239 is a Remote I/O Board (Part No. YB560103-CH) designed for ABB S3/S4 robotic control systems. It provides 16 analog input channels and 16 digital output channels in a single board, enabling high-density signal interfacing for robotic motion control, sensor integration, and process automation. With RS-232 / RS-485 communication interfaces, it supports real-time data exchange between the robot controller and distributed field devices.

Key Specifications

• Part Number: YB560103-CH
• Operating Voltage: 24V DC
• Analog Inputs: 16 channels
• Digital Outputs: 16 channels
• Communication Interface: RS-232 / RS-485
• Power Consumption: ≤ 3W
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Protection Class: IP20

Compatibility & Applications

Compatible with ABB S3 and S4 robot controllers. Ideal for welding robots, material handling systems, assembly automation, and process cells requiring remote analog input acquisition and digital output control in a compact, single-board solution.

FAQ

• Q: What communication protocols does DSQC 239 support? A: The board supports RS-232 and RS-485 serial communication for controller-to-field device data exchange.
• Q: Can analog and digital channels be used simultaneously? A: Yes, all 16 analog inputs and 16 digital outputs are active concurrently for mixed-signal applications.
• Q: Is this board compatible with IRC5 controllers? A: DSQC 239 is designed for S3/S4 controllers. For IRC5 systems, verify compatibility or consider DSQC 652/658 series I/O modules.
• Q: What is the power requirement? A: 24V DC supply with maximum power consumption of 3 watts.

Installation Guide

1. Power off the robot controller and lock out/tag out the main power supply.
2. Mount DSQC 239 in the designated I/O slot or backplane position.
3. Connect 24V DC power to the board power terminals.
4. Wire analog sensors to the 16 analog input channels observing polarity.
5. Wire digital loads (solenoids, relays, lamps) to the 16 digital output channels.
6. Connect RS-232 or RS-485 communication cable to the controller.
7. Restore power and verify channel status via the teach pendant or programming software.

Selection Tips

• Choose DSQC 239 for mixed analog input and digital output applications in S3/S4 robot systems.
• For pure digital I/O, consider DSQC 223 or DSQC 328.
• For pure analog I/O, consider DSQC 224.
• Verify your controller revision supports remote I/O expansion before ordering.
