ABB DSQC 363 3HAC1462-1 Robotics Controller Processor Board

Product Overview

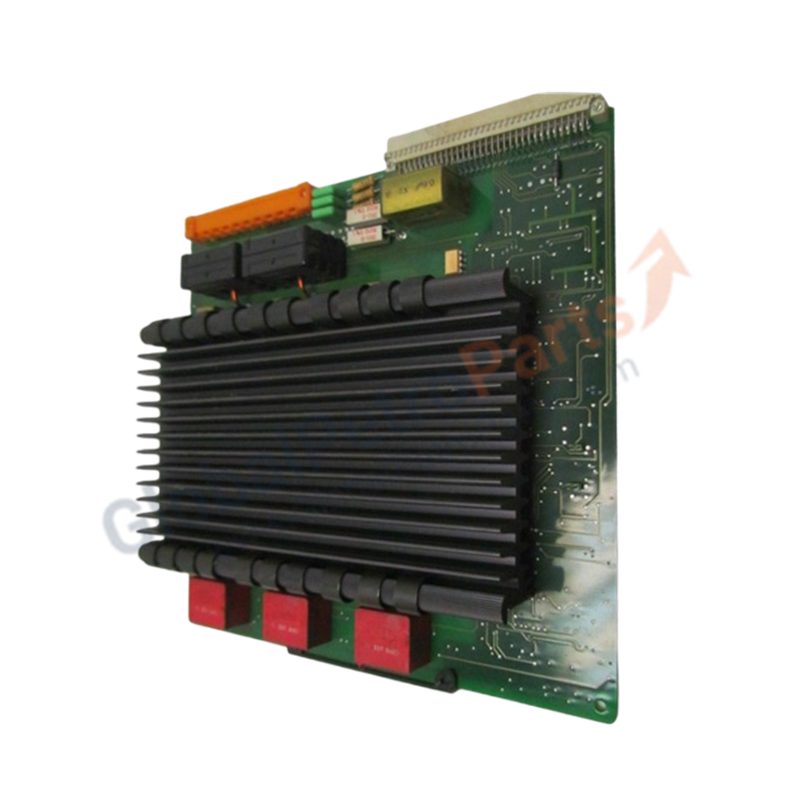

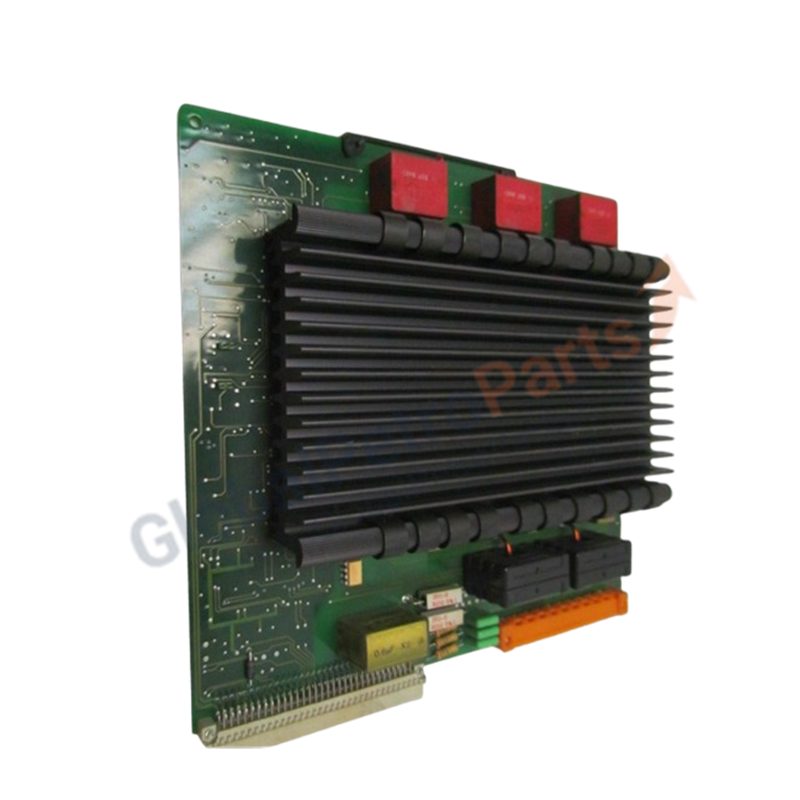

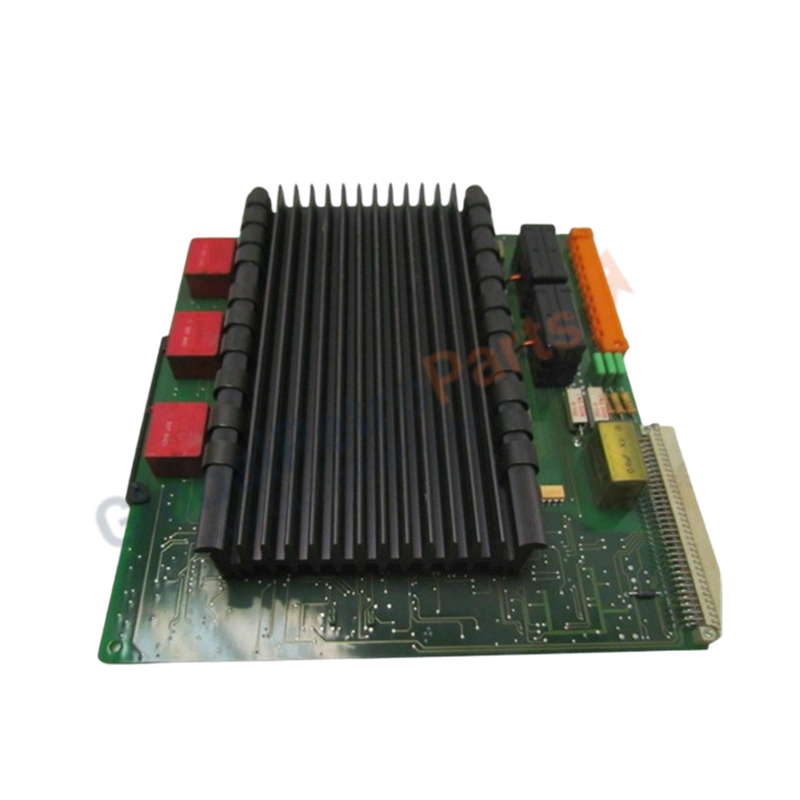

The DSQC 363 (3HAC1462-1) is a high-performance processing module engineered for ABB industrial robot controllers. Functioning as a critical computational node within the S4C+ control architecture, this circuit board manages complex trajectory calculations and high-level system logic. The DSQC 363 is designed to maintain high-speed data throughput between the main computer and axis computers, ensuring the precision and synchronization required for advanced robotic path control.

Technical Specifications

The following specifications detail the physical and operational parameters of the ABB DSQC 363 (3HAC1462-1) unit:

• Manufacturer: ABB

• Model Designation: DSQC 363

• Part Number: 3HAC1462-1

• Functional Role: Main Processor / Controller Logic Board

• System Compatibility: ABB S4C+ M2000 Series

• Dimensions: 24.1 cm (H) x 22.2 cm (W) x 18.4 cm (D)

• Net Weight: 1.9 kg

• Country of Origin: Switzerland

• Communication Interface: Backplane bus integration for S4C+ rack systems

• Hardware Tier: Professional Industrial Spare Part

Installation and Maintenance

The DSQC 363 | 3HAC1462-1 is typically installed within the central processing rack of the robot cabinet. Due to its role in executing critical control software, system parameters and firmware must be verified upon installation to ensure seamless integration with the existing manipulator configuration. Its Swiss-engineered circuitry provides enhanced thermal stability and resistance to industrial vibrations, which is vital for high-cycle environments such as automotive spot welding and palletizing cells.

Frequently Asked Questions

Is the DSQC 363 compatible with older S4 controllers?

The DSQC 363 (3HAC1462-1) is specifically optimized for the S4C+ hardware platform. While it shares some design similarities with earlier boards, its processing speed and memory mapping are tailored for the M2000 hardware revision and may not be backward compatible with S4 M94/M96 cabinets.

Does this board require specialized software loading?

Yes, as a main processing unit, the DSQC 363 depends on the RobotWare operating system version installed on your controller. Technicians should perform a full system backup before replacing the board to facilitate the restoration of specific calibration data.
