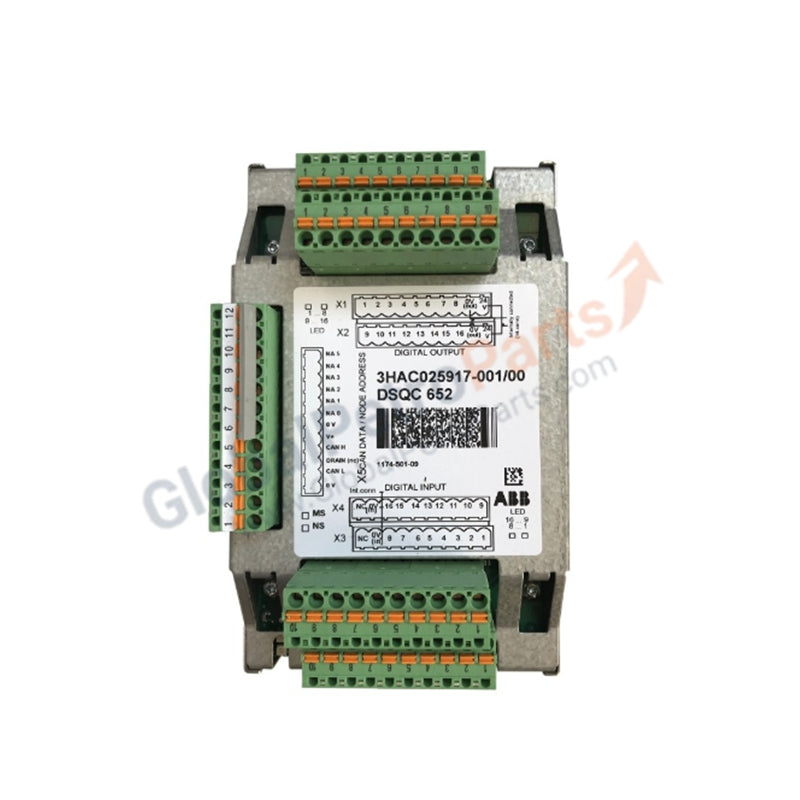

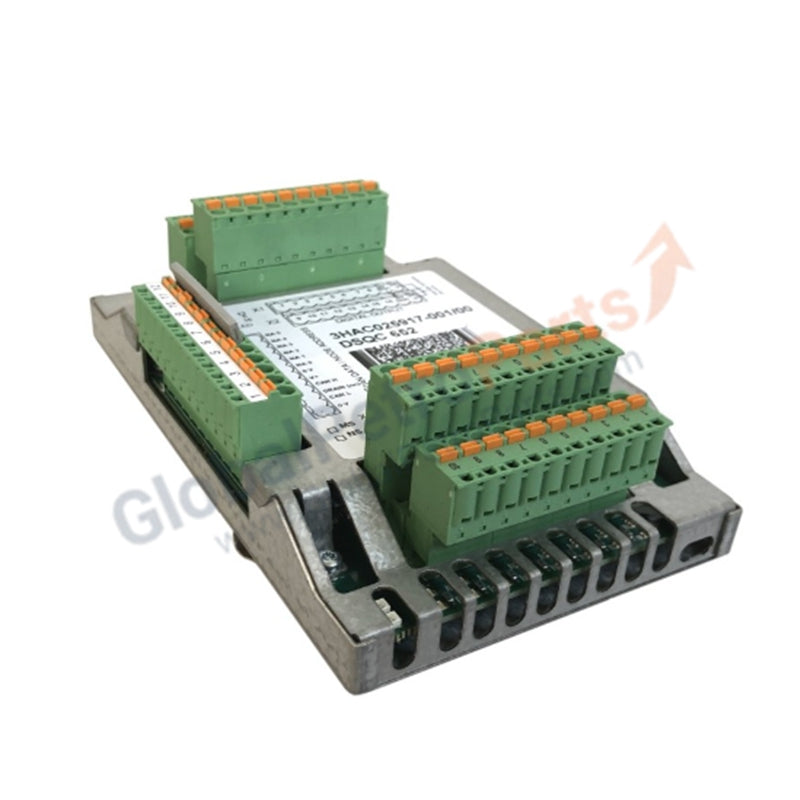

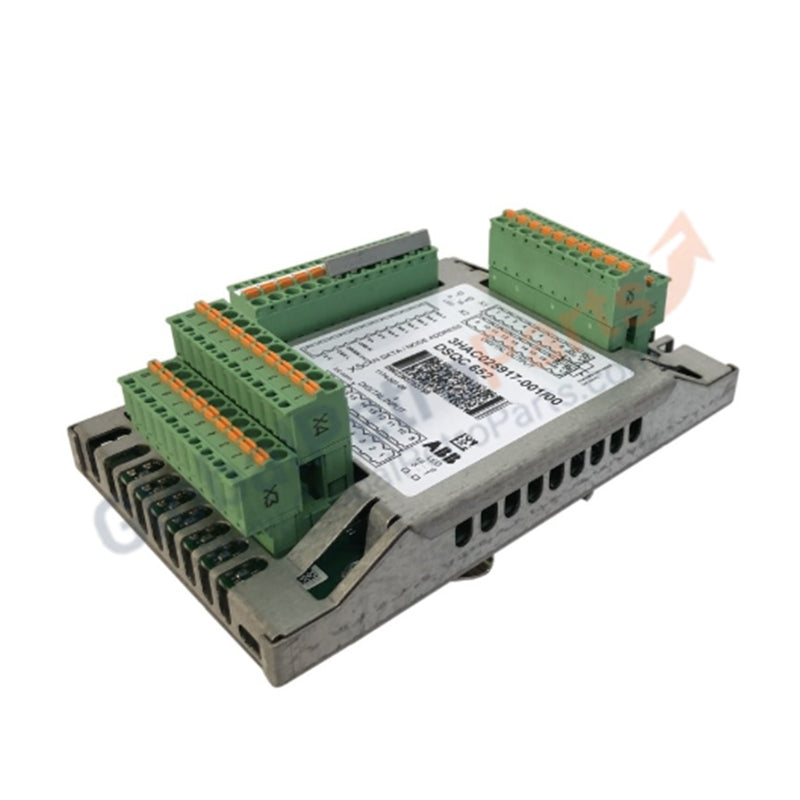

ABB DSQC 652 3HAC025917-001 Digital I/O Unit for IRC5 Controllers

Product Overview

The DSQC 652 (3HAC025917-001) is a high-density digital input/output module specifically engineered for the ABB IRC5 robot controller series. This unit operates as a DeviceNet slave, providing a reliable interface for the robot to interact with external manufacturing equipment. By facilitating high-speed discrete signal processing, the DSQC 652 ensures precise coordination between robotic motion and peripheral hardware such as grippers, sensors, and PLC handshaking interfaces.

Technical Specifications

The DSQC 652 | 3HAC025917-001 is designed to industrial-grade standards, offering robust performance in high-duty cycle environments:

• Manufacturer: ABB

• Model Designation: DSQC 652

• Part Number: 3HAC025917-001

• I/O Capacity: 16 Digital Inputs and 16 Digital Outputs

• Logic Type: 24V DC (Sink/Source inputs; Transistor-based outputs)

• Communication Protocol: DeviceNet (On-board addressing via rotary switches)

• Mounting Configuration: Standard DIN-rail or controller rack mounting

• Product Dimensions: 155.5 mm (D) x 98.5 mm (H) x 41.3 mm (W)

• Unit Net Weight: Approximately 0.45 kg

• Total Shipping Weight: 2.0 kg

• Operational Voltage: 24V DC nominal system power

Application & Integration Strategy

The DSQC 652 (3HAC025917-001) is the industry standard for I/O expansion in automotive assembly, pick-and-place, and material handling applications. Its compact vertical footprint allows for high-density installation within the IRC5 cabinet. When integrating this module, engineers can manually set the DeviceNet MAC ID and baud rate using the integrated rotary switches, ensuring quick commissioning without the need for complex software configuration tools for the physical address.

Functional FAQ

What is the difference between the DSQC 651 and DSQC 652?

While both utilize DeviceNet, the DSQC 651 typically offers 8 digital inputs and 8 digital outputs. The DSQC 652 (3HAC025917-001) doubles that capacity to 16 digital inputs and 16 digital outputs, making it the preferred choice for I/O-intensive robotic cells.

Does this module require a separate power supply for the I/O signals?

Yes. To maintain electrical isolation and protect the internal logic, an external 24V DC supply is required to power the field-side inputs and outputs. This prevents electrical noise from external actuators from affecting the IRC5 controller logic.
