ABB DSQC 663 | 3HAC029818-001 | IRC5 Multi-Axis Drive Module

Product Overview

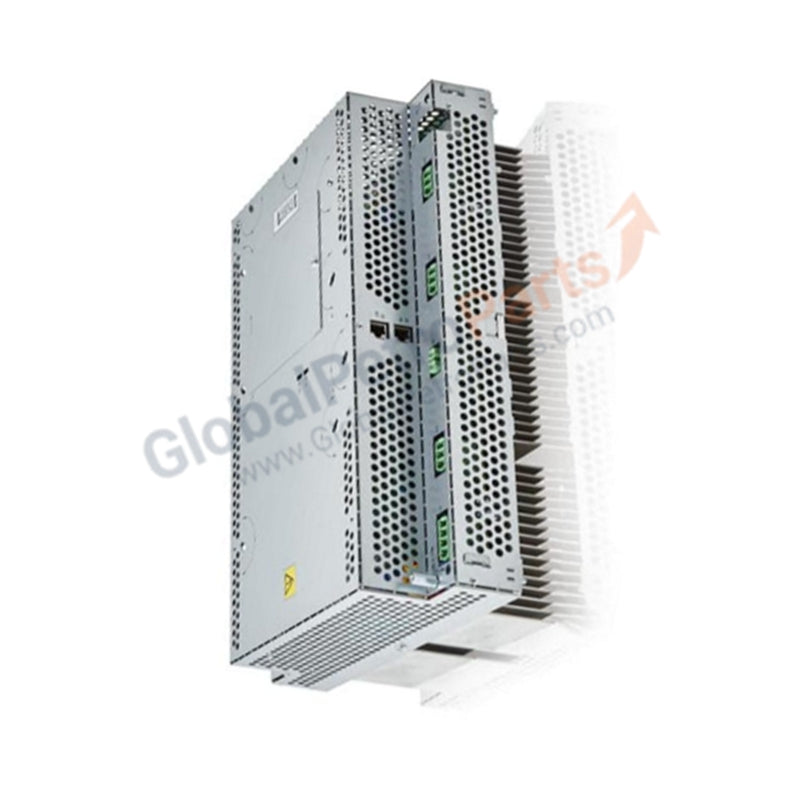

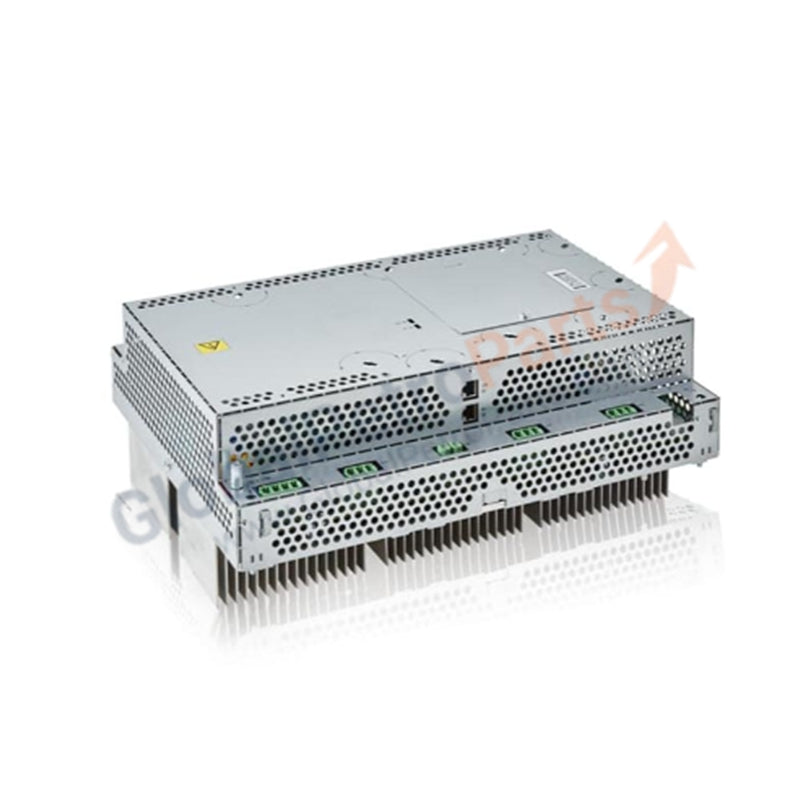

The DSQC 663 (3HAC029818-001) is a high-capacity drive unit engineered for the ABB IRC5 controller generation. This module serves as the primary power stage for controlling the robot manipulator's servo motors, converting DC bus voltage into precise AC pulse-width modulated (PWM) signals. Designed for multi-axis synchronization, the DSQC 663 manages high-torque demands while maintaining the fine positional accuracy required for industrial robotic applications.

Technical Specifications

The DSQC 663 | 3HAC029818-001 is built to withstand the rigorous duty cycles of heavy industrial environments:

• Manufacturer: ABB

• Model Designation: DSQC 663

• Part Number: 3HAC029818-001

• Device Function: Multi-Axis Servo Drive Unit

• Compatible Controller: ABB IRC5 (M2004 and later versions)

• Input Interface: DC bus connection from the rectifier unit

• Module Width: 335 mm

• Module Height: 179 mm

• Module Depth: 430 mm

• Net Unit Weight: Approximately 12.5 kg

• Total Shipping Weight: 15 kg

• Cooling Requirement: Forced-air cooling (integrated heatsink architecture)

• Configuration: Designed for high-current axis control (typically Axis 1-3 in medium-to-large robots)

System Integration & Role

In a standard IRC5 cabinet, the DSQC 663 (3HAC029818-001) is positioned as a critical power component. It receives motion trajectories from the axis computer and executes the current loops necessary for motor torque control. Given its high power throughput, it features comprehensive protection circuitry, including over-temperature sensing, short-circuit monitoring, and DC-bus overvoltage detection. This unit is frequently deployed in robotic systems used for automotive spot welding, heavy material handling, and foundry operations.

Functional Comparison & FAQ

How does the DSQC 663 compare to the DSQC 661?

While both belong to the IRC5 drive family, the DSQC 663 (3HAC029818-001) is typically rated for higher current output, making it suitable for larger robot models such as the IRB 6600 or IRB 6640 series, whereas the DSQC 661 is often used for smaller robots with lower torque requirements.

Does this unit require a separate capacitor module?

The DSQC 663 operates as part of a modular drive system. It must be connected to a shared DC bus managed by a rectifier (e.g., DSQC 604 or similar) and may require an external capacitor unit depending on the specific robot's kinetic energy regeneration requirements.
