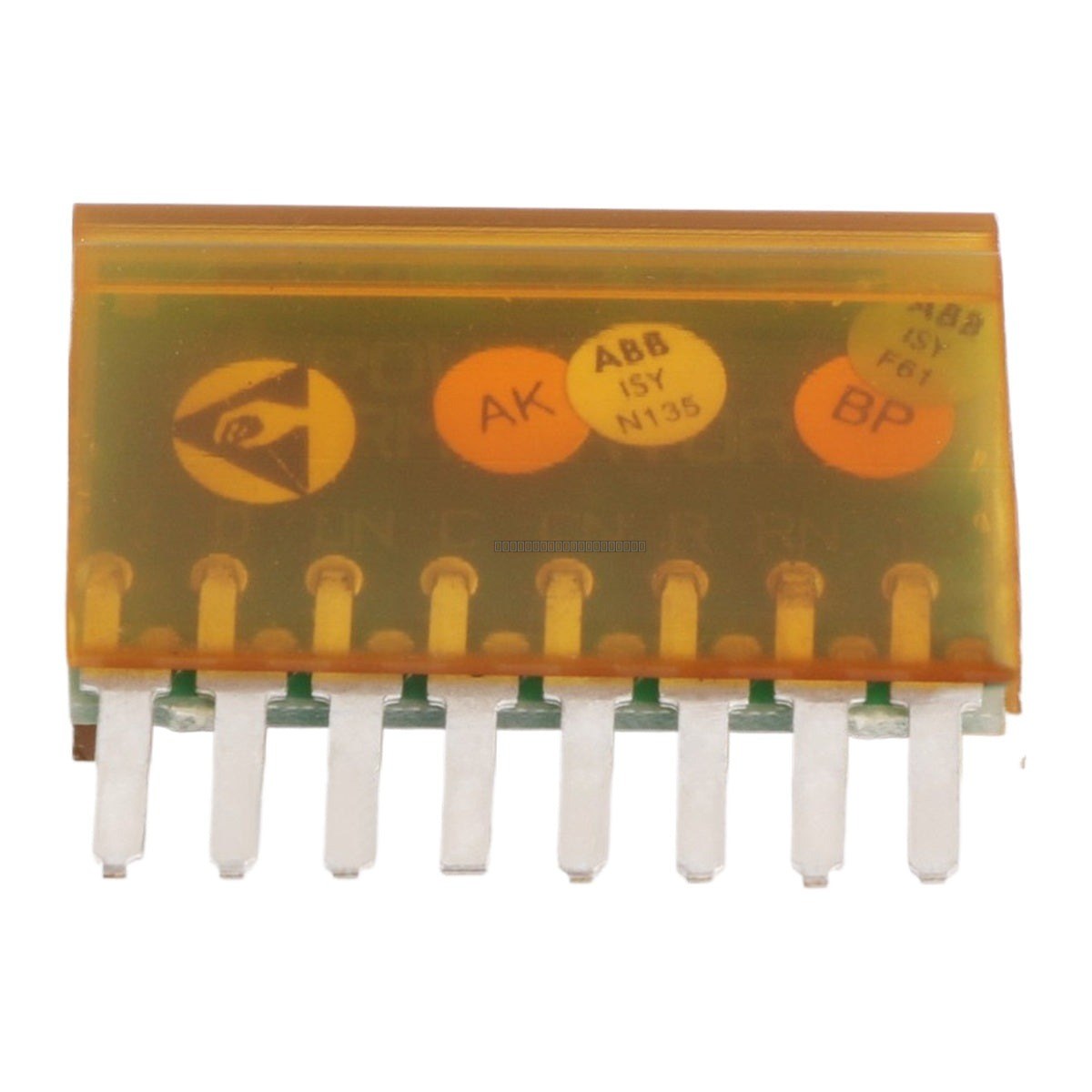

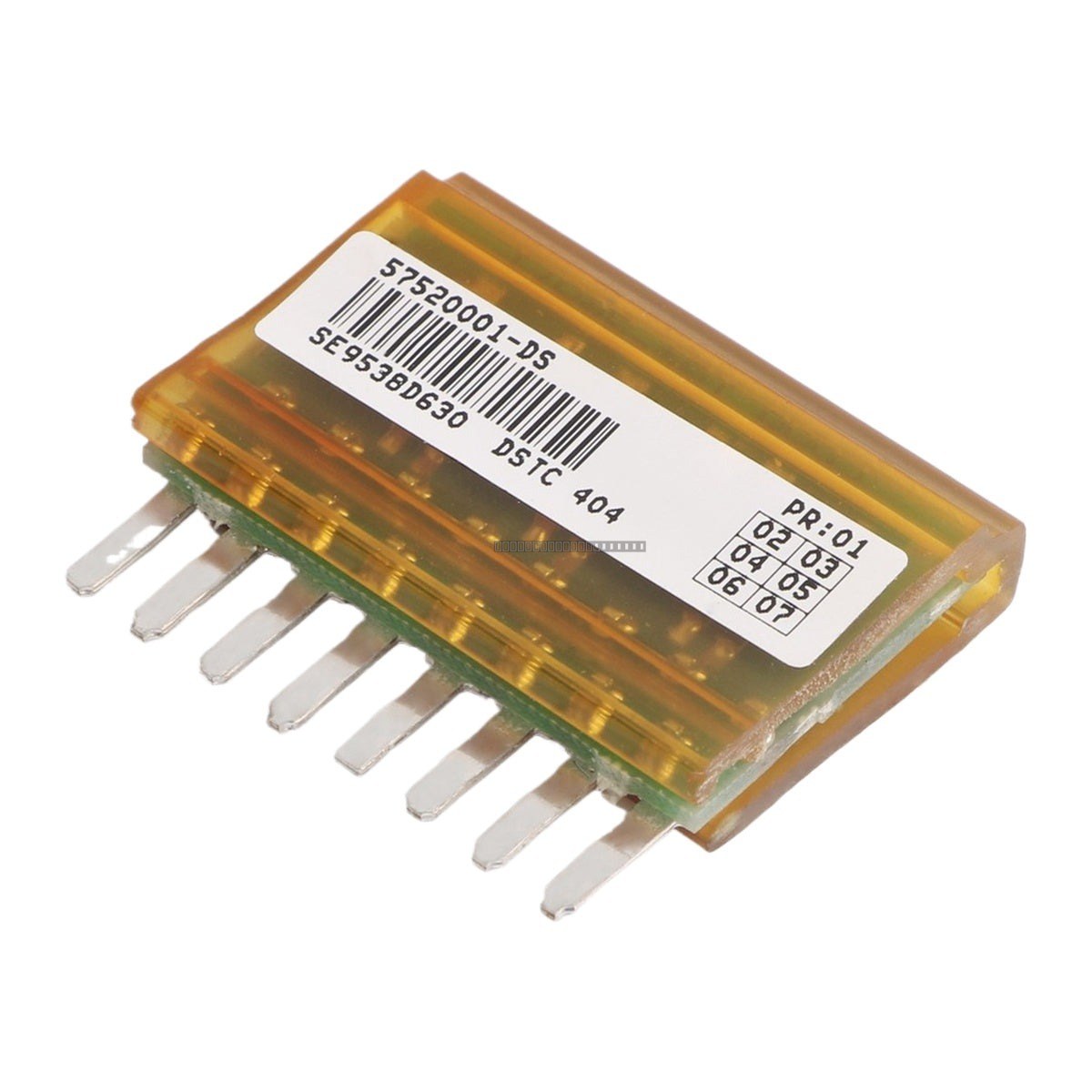

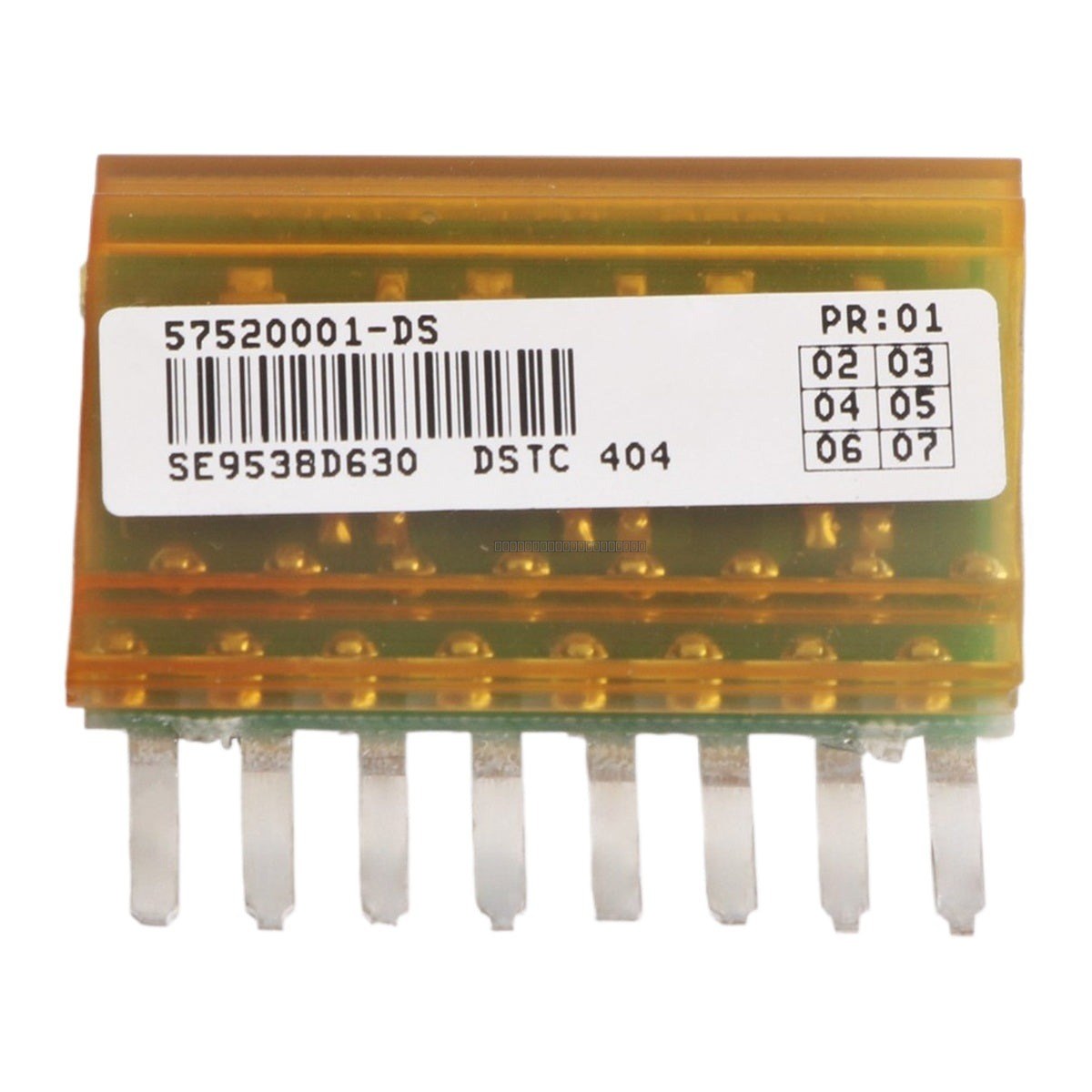

ABB DSTC404 Powered Terminator Module

Description

The ABB DSTC404 is a powered terminator module designed for use within ABB control system architectures. This component serves to provide proper signal termination, ensuring signal integrity and preventing reflections on the communication or I/O bus. As a powered terminator, it maintains the necessary electrical characteristics required for stable operation in industrial automation environments.

Features

• Designed for reliable signal termination in ABB control systems.
• Powered configuration to support bus impedance requirements.
• 8-blade connection interface for secure integration.
• Robust construction suitable for industrial cabinet environments.

Applications

The DSTC404 is typically utilized in distributed control systems (DCS) and industrial I/O subsystems where precise signal termination is required to maintain communication protocol stability and data accuracy.

Technical Specifications

Installation Guidelines

• Ensure the control system power is fully disconnected before installing or removing the module.
• Verify that the 8-blade connector is properly aligned and seated within the corresponding backplane or terminal block slot.
• Maintain proper grounding practices within the cabinet to prevent EMI/RFI interference.
• Ensure the module is installed in an environment with adequate ventilation to prevent localized overheating.
• Handle with care to avoid damage to the blade pins; ensure no debris is present in the connector interface during installation.

FAQ

What is the primary function of the DSTC404?

The DSTC404 acts as a powered terminator, which is essential for managing signal reflections and maintaining correct impedance on the system bus to ensure reliable data communication.

Is the DSTC404 compatible with other models?

The DSTC404 is identified by the spare model 57520001-DS. Please verify your system documentation or existing module part number to ensure compatibility with your specific ABB controller revision.
