ABB DX561 – 8DI/8DO Digital I/O Module

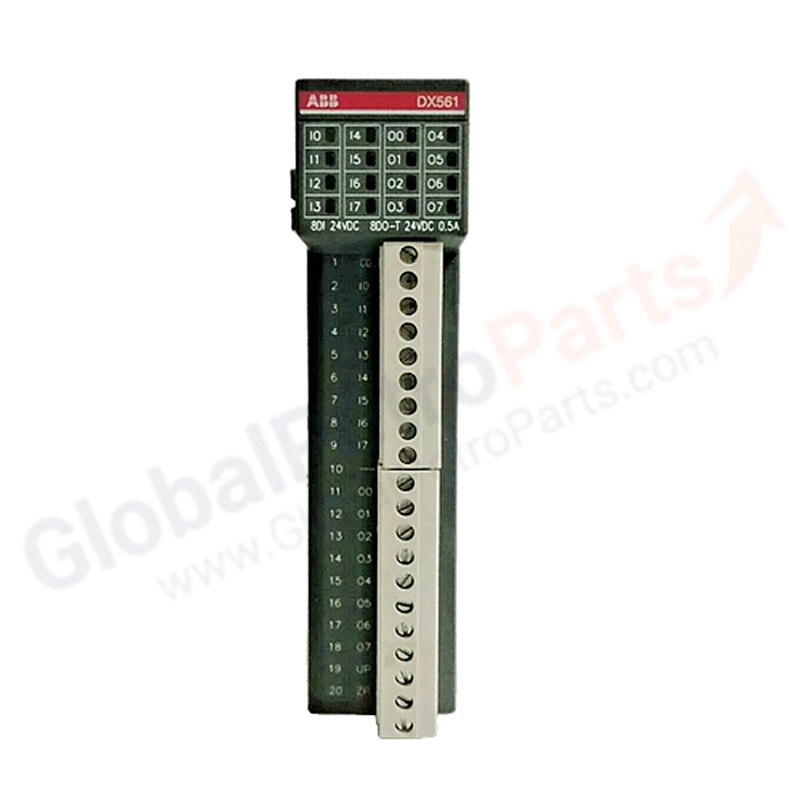

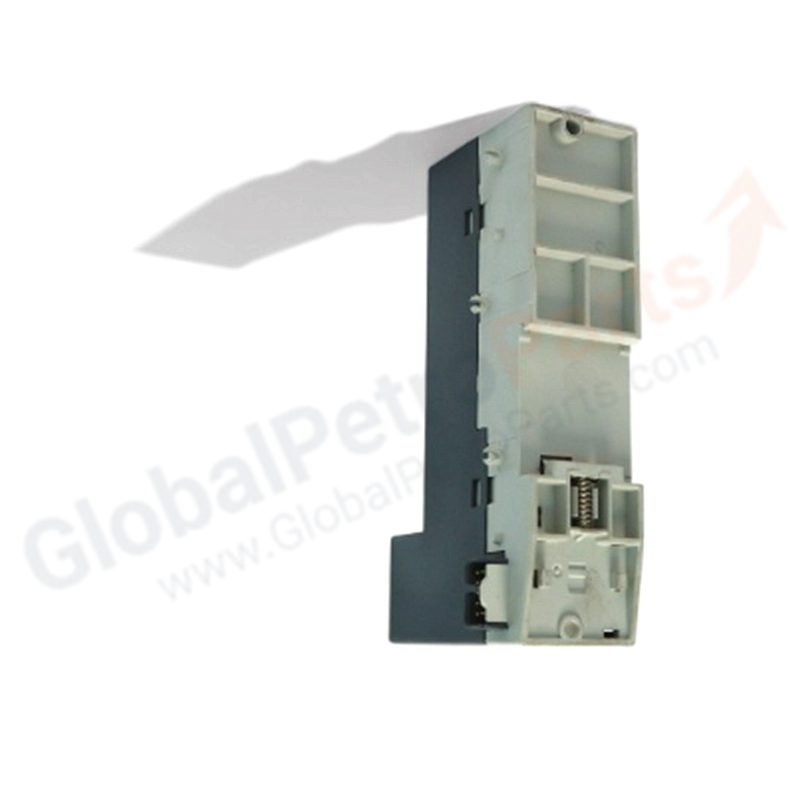

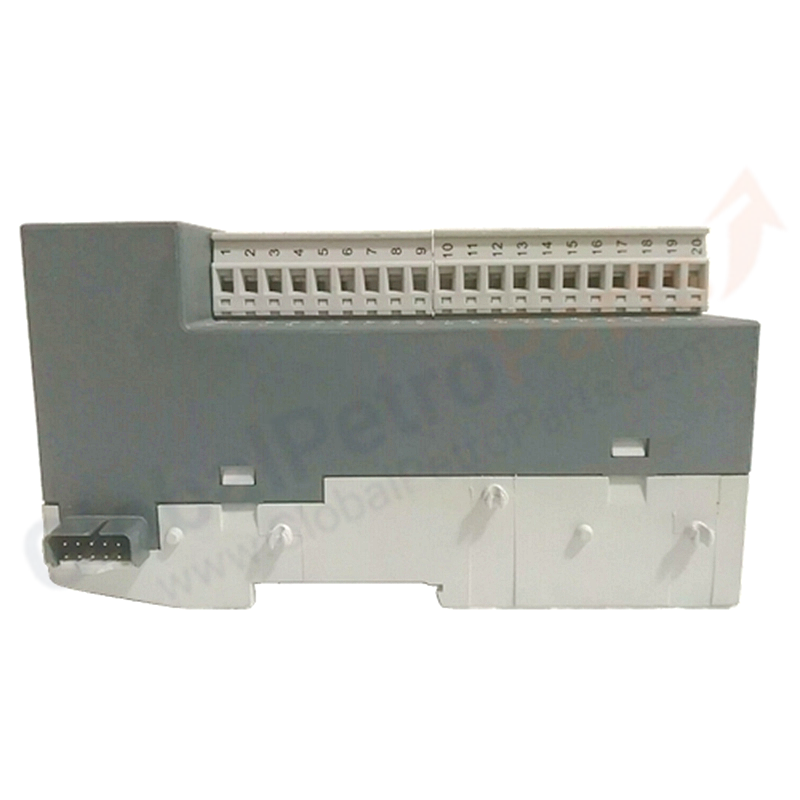

The ABB DX561 (Product ID 1TNE968902R2301) is a digital input/output module for the AC500 S500-eCo distributed I/O system. It combines 8 digital inputs and 8 transistor outputs in a single compact module.

• Digital Inputs: 8 channels
• Input Voltage: 24 VDC
• Input Voltage Range: 0–30 VDC
• Input Current: 5 mA
• Input Delay: 8 ms
• Input Type: Sink or source
• Digital Outputs: 8 channels
• Output Type: Transistor
• Output Voltage: 24 VDC (20.4–28.8 V)
• Output Current: 0.5 A per channel
• Load Connection: 1-wire switching
• Protection: Electronic short-circuit and overload protection
• Supply Voltage: 20.4–28.8 VDC
• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +70°C
• Humidity: 5–95% non-condensing
• Protection: IP20
• Dimensions: 74 mm × 135 mm × 34 mm
• Weight: 0.12 kg

Technical Specifications

FAQ

1. Input Wiring
   Inputs support both sink and source wiring configurations. The wiring mode is determined by the connection polarity at the terminals.
2. Output Load
   Each transistor output drives 0.5 A at 24 VDC. The total module load must not exceed the auxiliary power supply rating.
3. Short-Circuit Protection
   Outputs feature electronic short-circuit and overload protection. The module automatically limits current during fault conditions.
4. Signal Delay
   Input delay is 8 ms. This filters mechanical switch bounce and provides stable signal detection.

Installation Guide

• Step 1: Mount the DX561 on the S500 terminal base. Slide the module onto the DIN rail until the connector engages.
• Step 2: Connect 24 VDC supply to the module power terminals.
• Step 3: Wire digital inputs to switches, sensors, or proximity detectors. Wire outputs to solenoids, relays, or indicators.
• Step 4: In AC500 Control Builder, assign input and output addresses. Configure input filter time if required.
• Step 5: Download configuration and test each channel. Verify input state changes in the online monitor and confirm output actuation.
