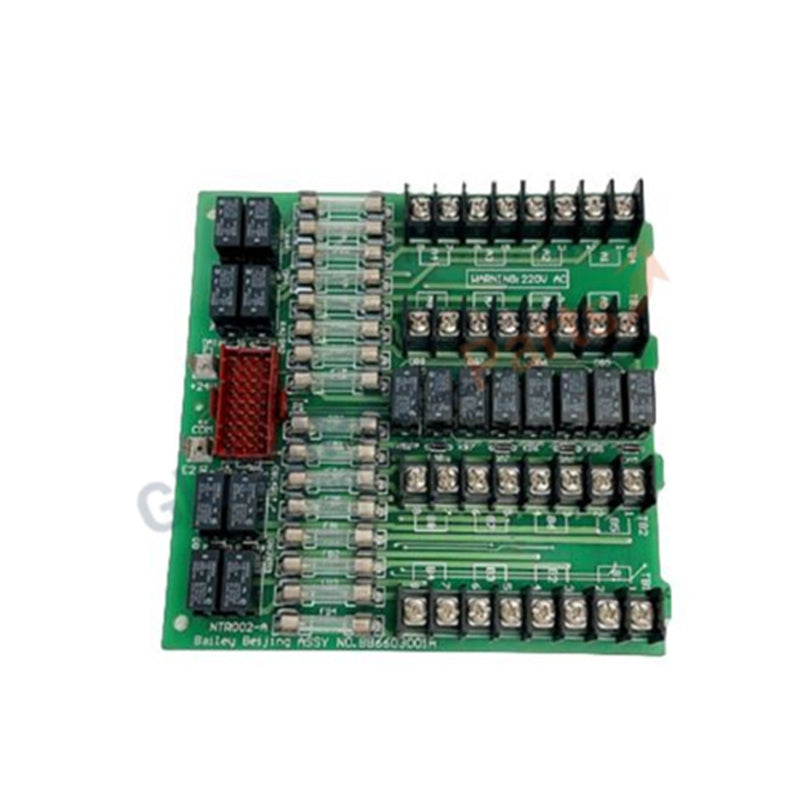

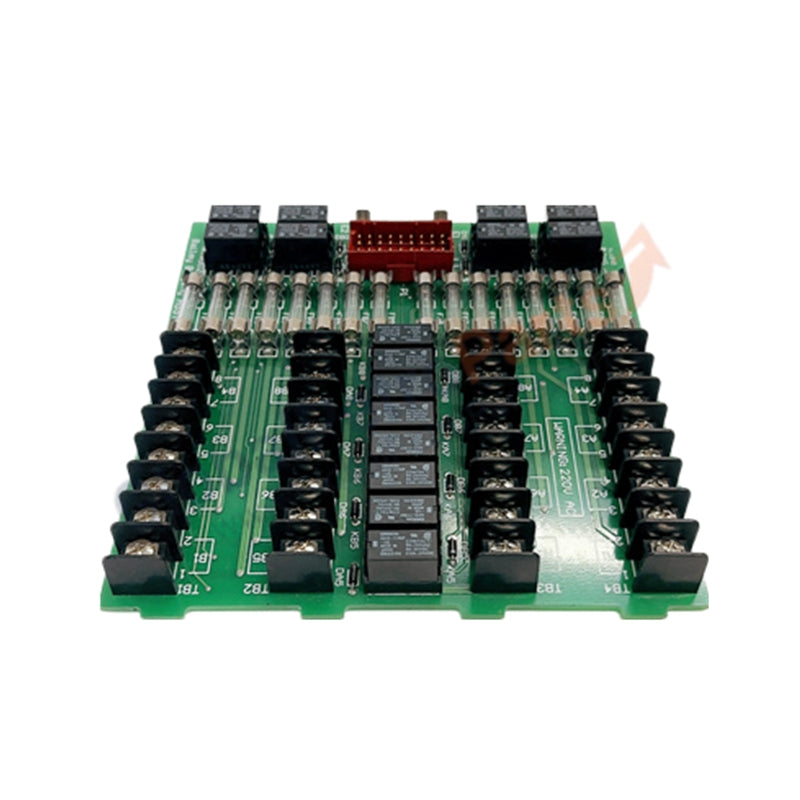

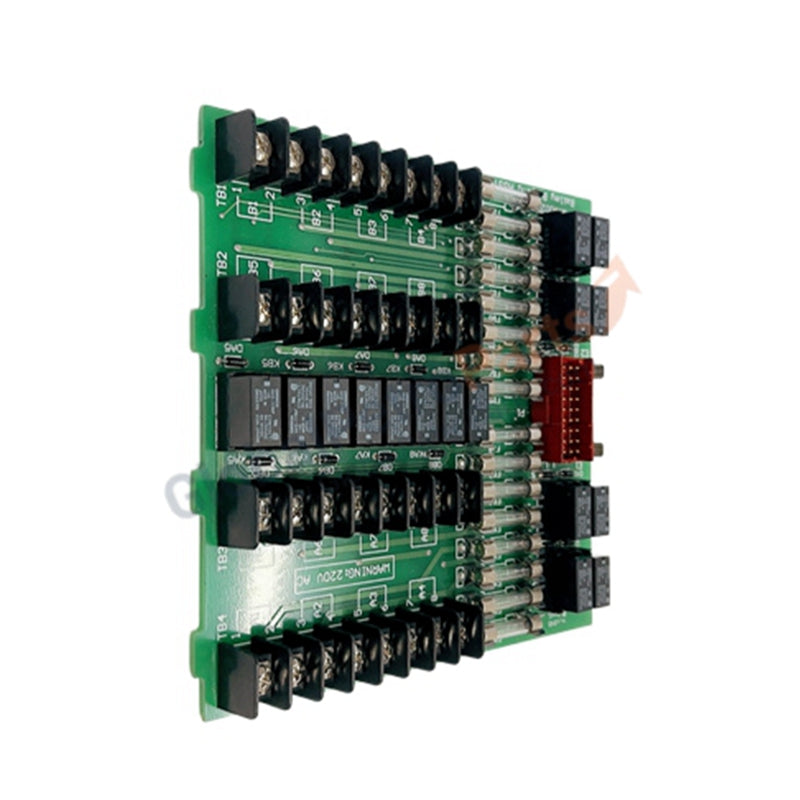

ABB NTR002-A Temperature Sensor Interface Module | RTD & Thermocouple

Product Description

The ABB NTR002-A Temperature Sensor Interface Module is designed to connect RTDs and thermocouples directly to ABB’s distributed control systems, enabling precise and stable temperature measurement across a wide operating range. With dual sensor channels, high-resolution conversion, and robust environmental tolerance, the NTR002-A ensures accurate data acquisition for critical industrial processes.

Technical Specifications

• Manufacturer: ABB

• Model / Catalog Number: NTR002-A

• Product Type: Temperature Sensor Interface Module

• Number of Channels: 2

• Supported Sensor Types: RTD, Thermocouple

• Measurement Range: –200 °C to +1800 °C

• Accuracy: ±0.1 °C

• Resolution: 16-bit analog-to-digital conversion

• Dimensions:

• Length: 100 mm

• Width: 50 mm

• Height: 30 mm

• Weight: 0.3 kg

• Operating Temperature: –10 °C to +50 °C

• Storage Temperature: –40 °C to +70 °C

• Humidity Tolerance: 10%–90% RH, non-condensing

Features

• Dual-channel input for flexible sensor integration

• High accuracy and resolution for precise monitoring

• Wide measurement range suitable for extreme industrial conditions

• Compact design for easy installation in control cabinets

• Compatible with ABB distributed control systems

Application Scenarios

• Process industries requiring precise temperature monitoring

• Power generation and chemical plants with high-temperature operations

• Industrial automation systems integrating RTDs and thermocouples

• Environments demanding reliable sensor-to-system connectivity

FAQ

Q: What sensor types are supported by the NTR002-A?  A: RTDs and thermocouples.

Q: How many channels are available?  A: Two independent sensor channels.

Q: What is the accuracy of this module?  A: ±0.1 °C.

Q: Can it operate in high humidity environments?  A: Yes, up to 90% RH non-condensing.
