ABB S800 I/O Intrinsic Safety Analog Input Module with HART | AI895 3BSC690086R1

Product Overview

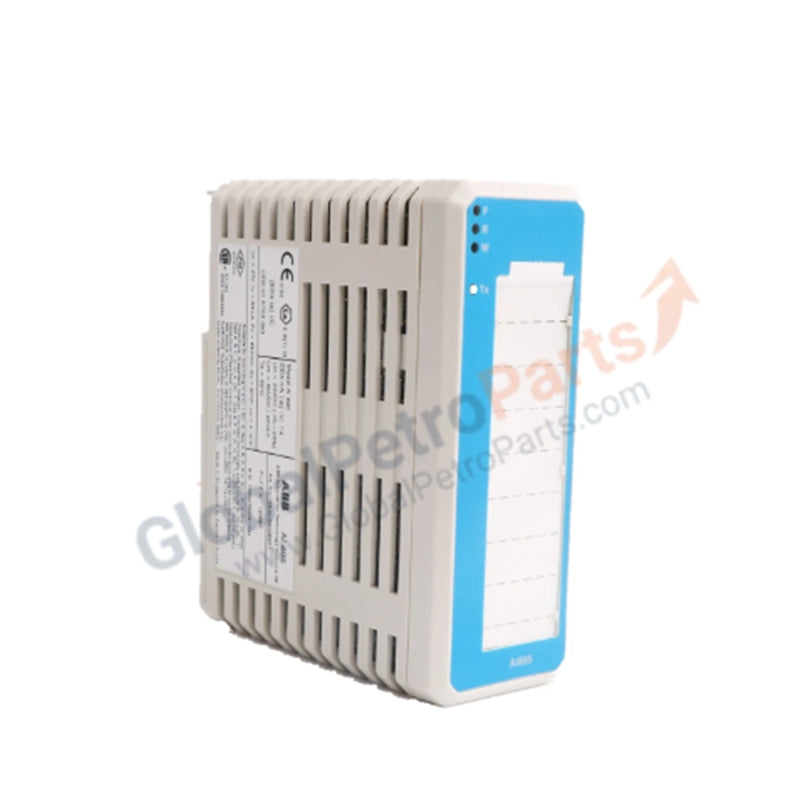

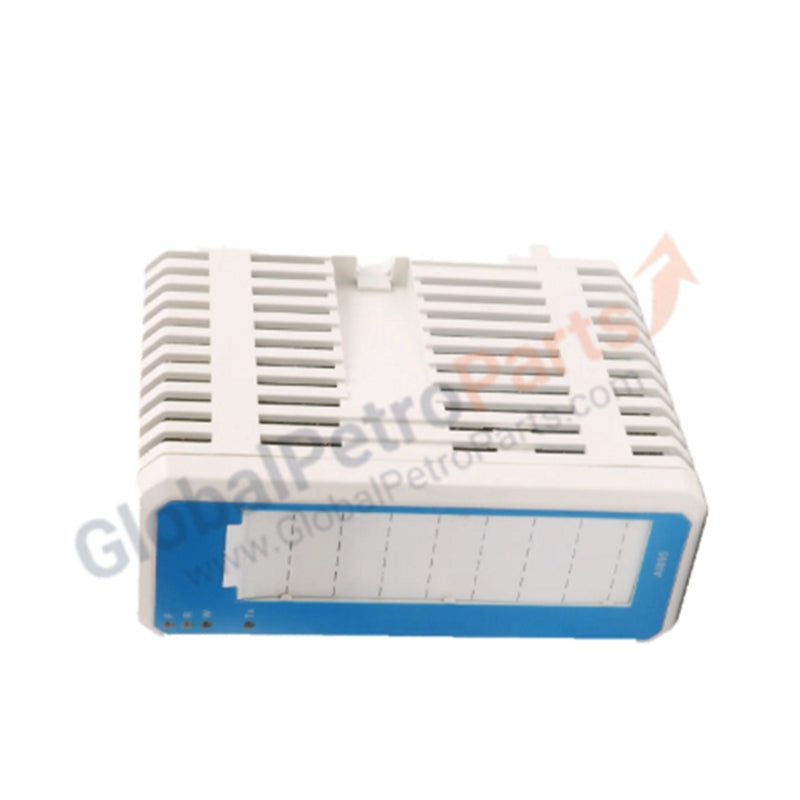

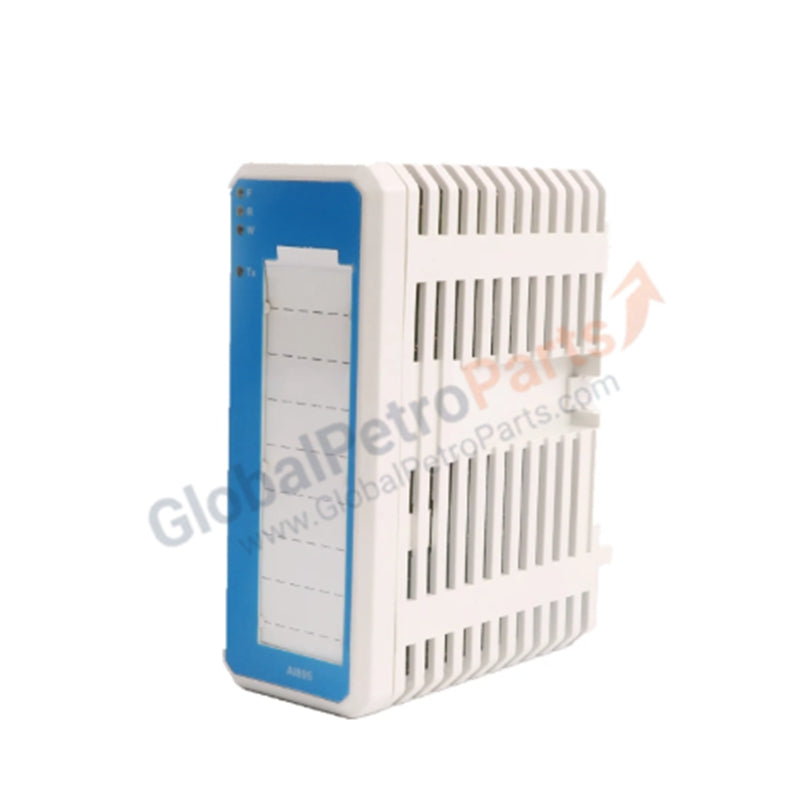

The ABB AI895 (3BSC690086R1) serves as a high-performance analog input interface for S800 I/O systems, specifically designed for hazardous area deployments. This module integrates Intrinsic Safety (IS) barriers, allowing direct connection to 4...20 mA transmitters located in Zone 0 or Class 1 Division 1 environments. Beyond standard data acquisition, the AI895 supports full HART communication, enabling bi-directional digital data flow between the field instruments and the control system. We supply this unit as 100% Brand New and Original, ensuring maximum safety compliance and system longevity.

Technical Specifications

The AI895 delivers precise signal processing with the following technical parameters:

Engineering Advantages

• Elimination of External IS Barriers: The AI895 incorporates internal intrinsic safety barriers. This design reduces cabinet complexity by removing the need for third-party isolators, which saves rail space and minimizes potential failure points in the wiring loop.

• Integrated HART Transparency: The module supports HART pass-through, allowing maintenance software to access field device parameters directly. A dedicated "Tx" LED on the front panel provides real-time visual confirmation of digital communication activity.

• Robust Environmental Protection: Conforming to the ISA-S71.04 G3 standard, the AI895 withstands high concentrations of corrosive gases. This makes it an essential component for refineries and chemical plants where standard electronics often succumb to atmospheric degradation.

• High-Speed Control Loops: A 20 ms hardware filter rise time and high-speed internal processing allow the module to feed accurate data to the controller nearly instantaneously. This rapid response supports tighter control over volatile process variables.

• Built-in Transmitter Power: The module provides current-limited power to field transmitters directly through the I/O terminals. This simplifies the power distribution architecture and protects the system against field-side short circuits.

FAQs

• Does the AI895 support redundant configurations?

  No, the AI895 3BSC690086R1 does not support hardware redundancy. For applications requiring safety redundancy, you should consult the S800 High Integrity (HI) series specifications.

• Can I install the AI895 in a standard Zone 2 cabinet?

  Yes. The module itself carries ATEX/IECEx Zone 2 certification. However, its internal circuitry provides the necessary Intrinsic Safety interface to connect to sensors located in Zone 0, 1, or Division 1 hazardous areas.

• How do the diagnostics help reduce downtime?

  The AI895 features a comprehensive LED array: Fault (F), Run (R), Warning (W), and Tx. It monitors the internal process supply and signal integrity. If a channel fails or the field power drops, the module immediately flags the error to the DCS, allowing for pinpoint troubleshooting.

• Is this module suitable for offshore or maritime use?

  Yes. The AI895 holds major marine certifications including DNV, Lloyd's Register (LR), and American Bureau of Shipping (ABS), qualifying it for use in ballast control, propulsion monitoring, and offshore platform automation.
