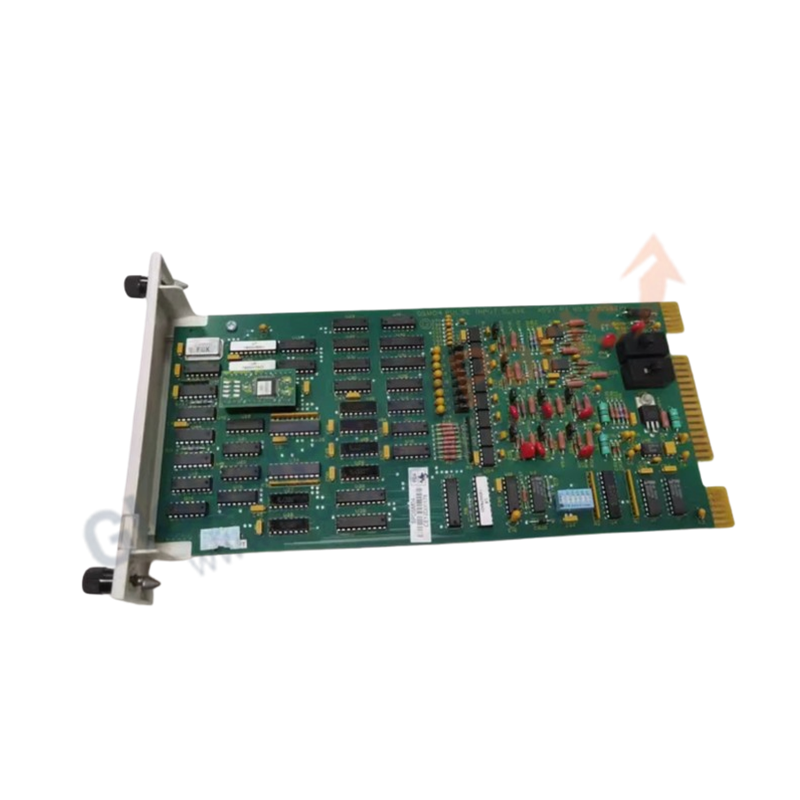

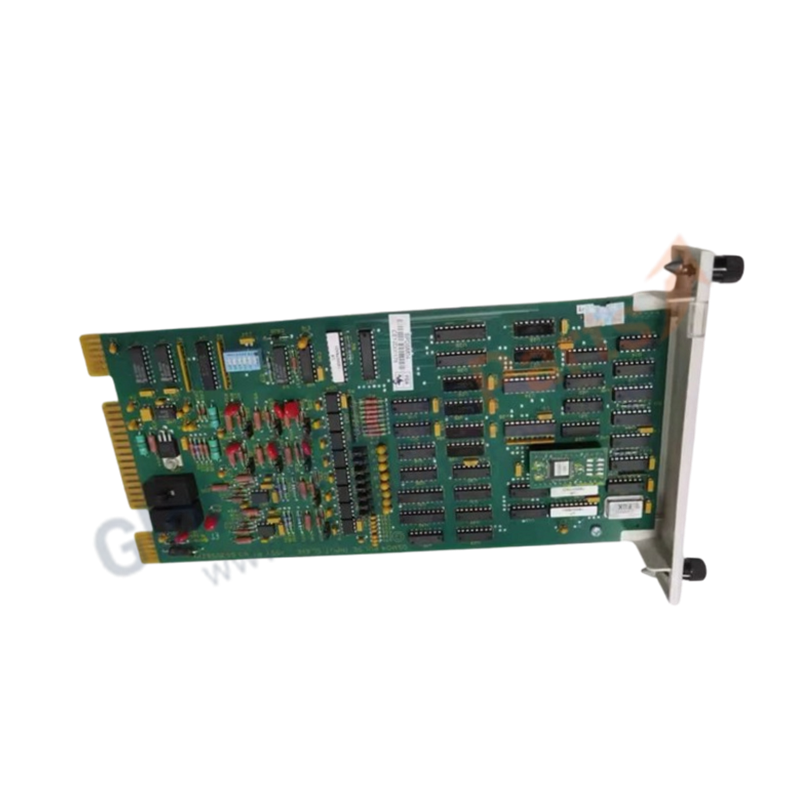

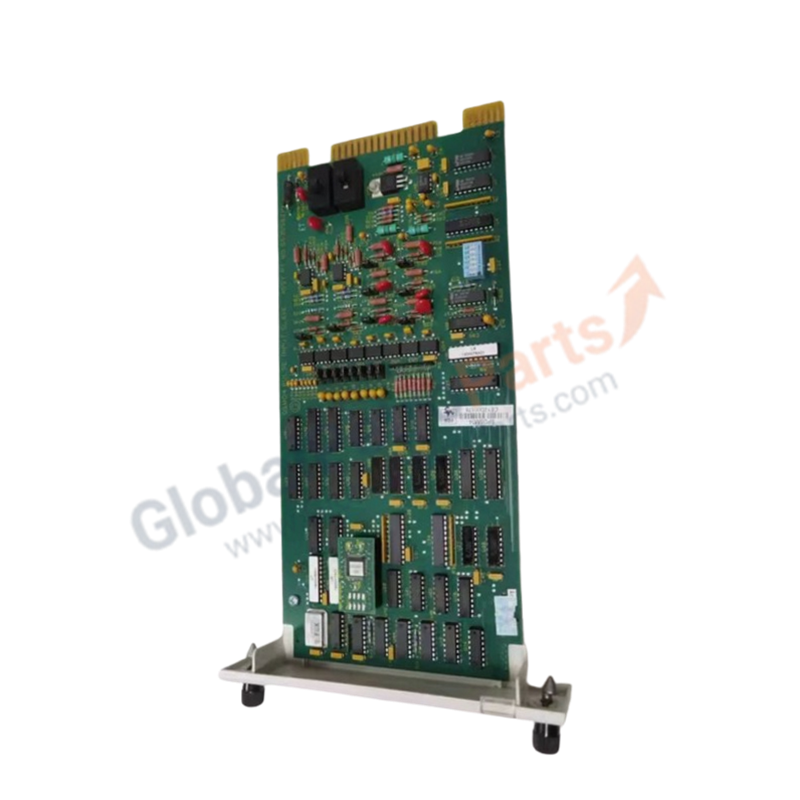

ABB SPDSM04 Symphony Plus Digital Input Module

Product Overview

The ABB SPDSM04 serves as a high-integrity Digital Input (DI) interface within the Symphony Plus Distributed Control System (DCS) architecture. This module captures discrete signals from field devices—such as limit switches, pushbuttons, and relay contacts—converting them into digital data for the system controller. We supply this unit as 100% Brand New and Original, ensuring seamless integration into existing Symphony Plus I/O subracks to maintain precise process monitoring and logic execution.

Technical Specifications

The SPDSM04 utilizes a compact form factor to handle multi-channel discrete data:

Engineering Advantages

• Optimized Signal Density: The 8-channel configuration allows engineers to monitor multiple field points through a single module slot. This density reduces the overall footprint of the I/O cabinet and simplifies the wiring architecture for complex process loops.

• Vertical Rack Integration: The module’s specific dimensions (358.14 mm height) ensure a perfect fit within standard Symphony Plus or Harmony rack assemblies. The plug-in design facilitates rapid installation and secure mechanical seating against the backplane.

• Maintenance-Free Operation: The SPDSM04 operates without internal batteries. This design eliminates the need for periodic battery replacement schedules and prevents potential hardware damage from battery leakage in high-temperature environments.

• EMI/RFI Resistance: The internal circuitry incorporates robust filtering to suppress industrial noise and electromagnetic interference. This ensures the module accurately identifies "On/Off" states even when field wiring runs parallel to high-voltage power cables.

• Rapid Fault Isolation: Integrated status diagnostics allow the DCS to detect channel-level abnormalities instantly. This transparency accelerates troubleshooting by pinpointing field-side wiring issues or failed sensors without requiring manual point-to-point testing.

FAQs

• Does the SPDSM04 support "Hot-Swapping" during system operation?

  Yes. Symphony Plus architecture typically supports the removal and insertion of I/O modules under power. Always verify that your specific rack configuration and safety protocols allow for live module replacement before proceeding.

• What type of field devices can I connect to this 8-channel module?

  The SPDSM04 accepts standard dry contact inputs or voltage-based discrete signals from devices like pressure switches, motor starter auxiliary contacts, and proximity sensors.

• Is this a genuine, factory-sealed ABB component?

  Absolutely. We guarantee this SPDSM04 is 100% Brand New original stock. It arrives in the original ABB factory packaging with all security seals, serial numbers, and technical documentation intact.

• How does this module handle high-frequency signal chatter?

  The module includes digital debounce filtering. This software-configurable feature prevents "contact bounce" from creating false logic triggers, ensuring the controller only processes valid state changes.
