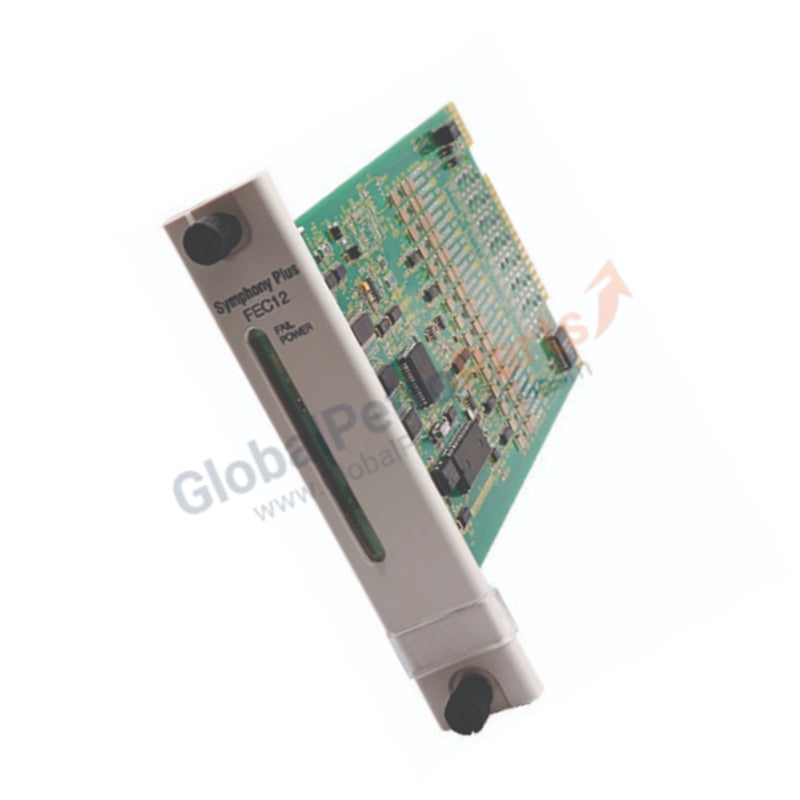

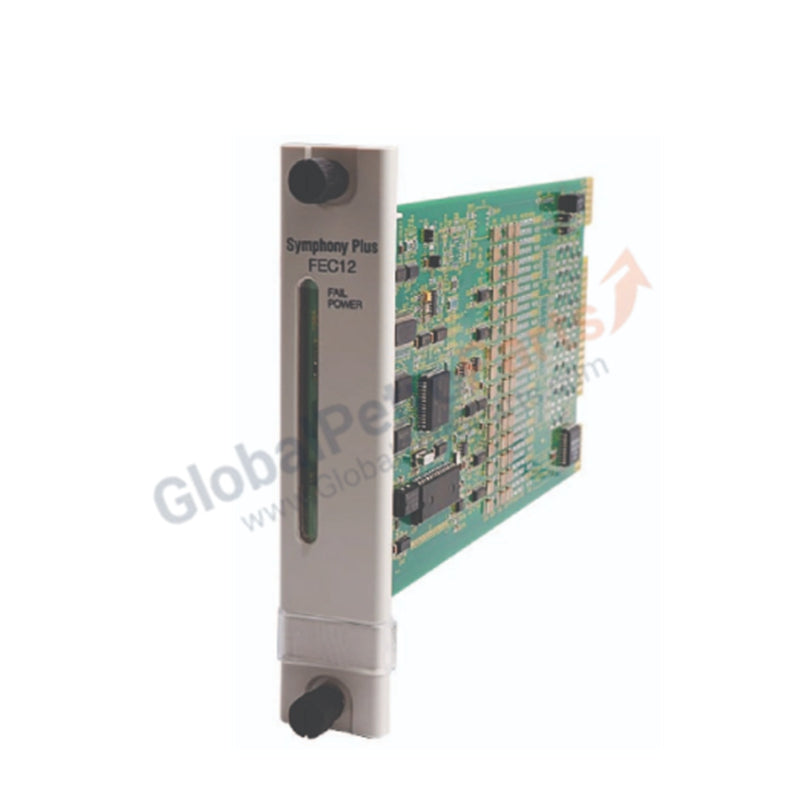

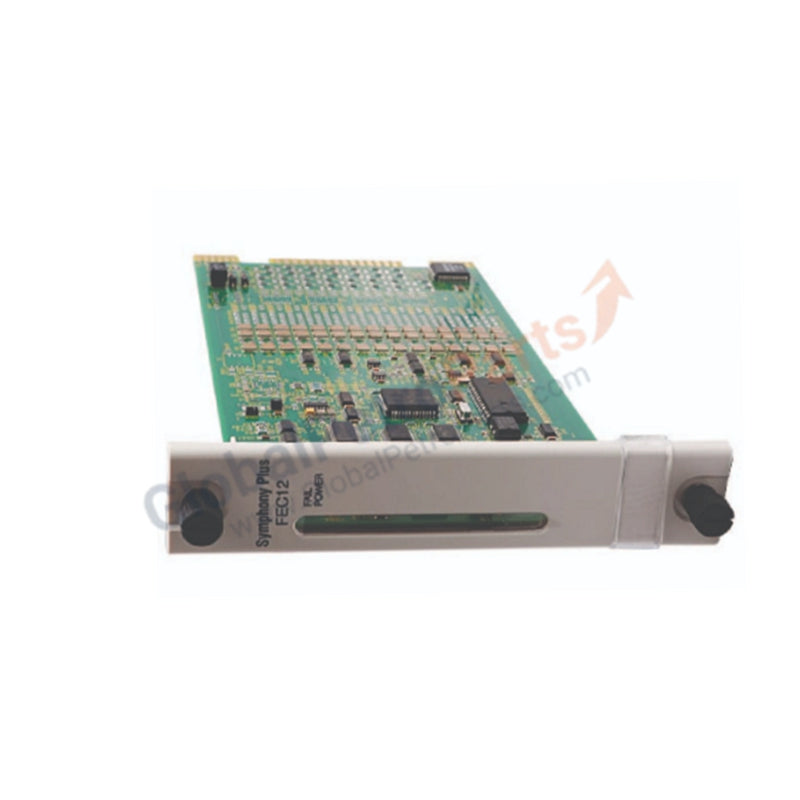

ABB SPFEC12 | Symphony Plus / Harmony Analog Input Module | 15-Channel

Product Description

The ABB SPFEC12 Analog Input Module is engineered to provide reliable signal acquisition for industrial monitoring and control systems. With 15 input channels, it supports both 4–20 mA and 1–5 V analog signals, making it suitable for a wide range of process automation applications. Its compact design and compatibility with Symphony Plus and Harmony architectures ensure seamless integration into distributed control systems.

Technical Specifications

• Manufacturer ABB

• Model Number SPFEC12

• Product Series Symphony Plus / Harmony

• Module Type Analog Input (AI) Module

• Number of Channels 15 analog input channels

• Supported Signal Types 4–20 mA, 1–5 V

• Dimensions Depth: 71.12 mm, Height: 358.14 mm, Width: 269.24 mm

• Environmental Compliance WEEE Category 5 (Small Equipment – no external dimension exceeds 50 cm)

• Battery Requirement None (no onboard battery)

• Weight Approx. 0.54 kg

Key Features

• Multi-Signal Support Handles both current and voltage inputs for versatile applications

• High Channel Density 15 inputs maximize cabinet space efficiency

• Compact Form Factor Slim design for rack-based installations

• System Compatibility Fully integrates with Symphony Plus and Harmony platforms

• Reliable Performance Designed for stable signal acquisition in industrial environments

Application Scenarios

• Process monitoring requiring multiple analog inputs

• Integration into ABB Symphony Plus and Harmony distributed control systems

• Industrial automation setups needing current and voltage signal acquisition

• High-density installations where space efficiency is critical

FAQ

Q: How many channels does the SPFEC12 provide?  A: It offers 15 analog input channels.

Q: What signal types are supported?  A: The module supports both 4–20 mA current signals and 1–5 V voltage signals.

Q: Is the SPFEC12 compatible with Symphony Plus systems?  A: Yes, it is designed for use with Symphony Plus and Harmony architectures.
