ABB SPTPS13 Symphony Plus Bailey Turbine Protection Module

Product Overview

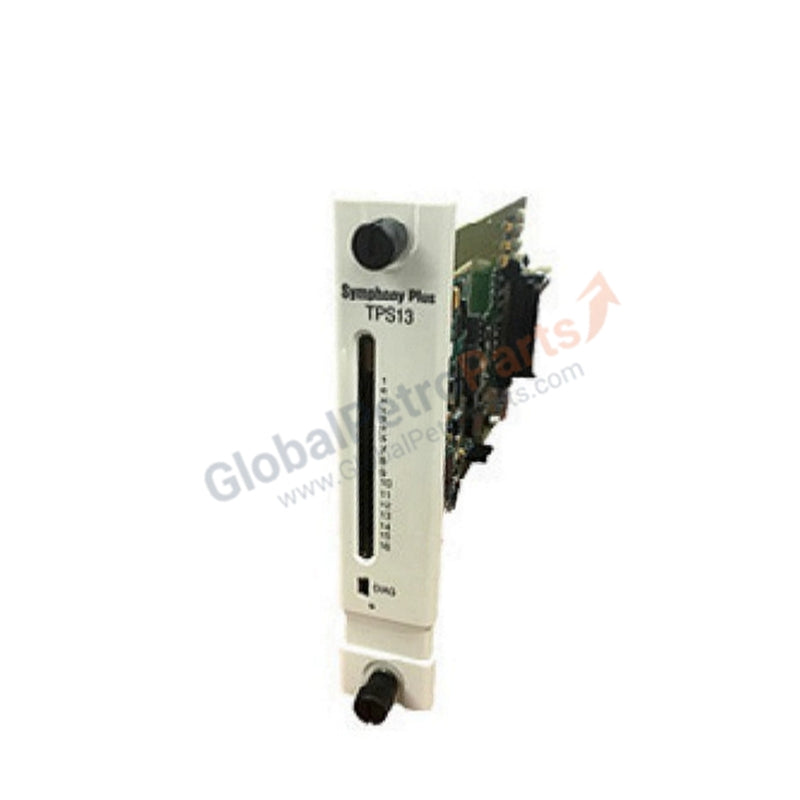

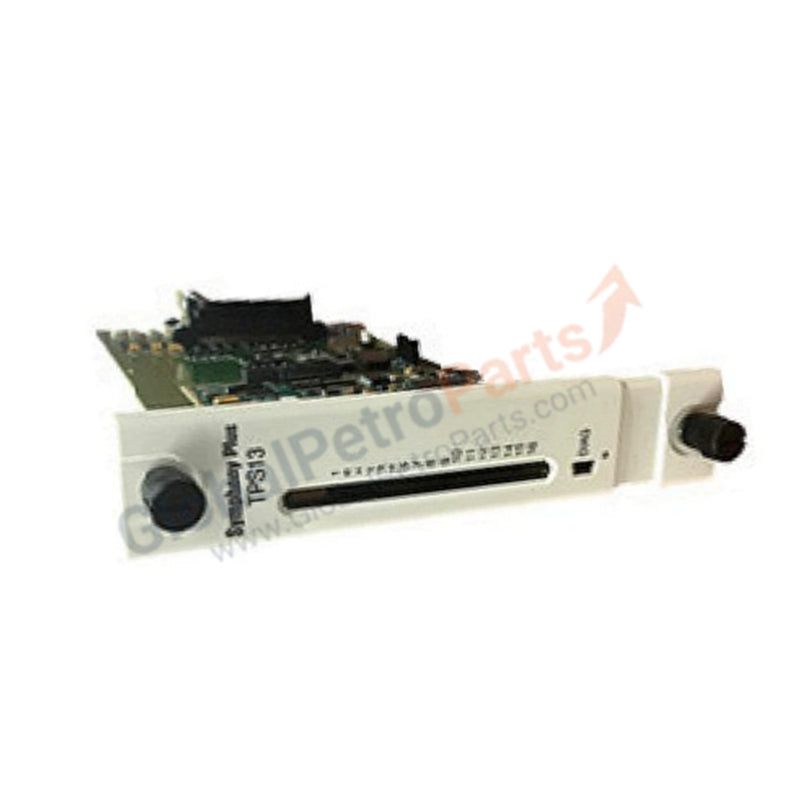

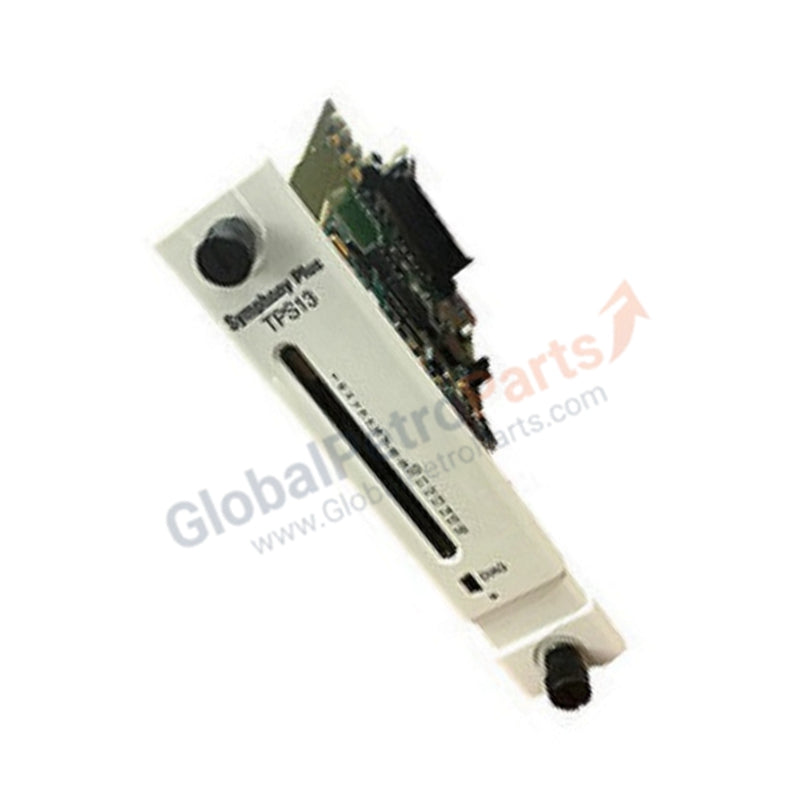

The ABB SPTPS13 functions as a high-integrity, specialized controller within the Symphony Plus and Bailey Harmony architectures. This module provides dedicated, hardware-deterministic protection for industrial steam and gas turbines. We supply this unit as 100% Brand New and Original, ensuring the sub-millisecond response times required for critical safety functions. The SPTPS13 monitors essential turbine parameters—including overspeed detection, vacuum limits, and axial thrust—to execute emergency trip sequences and prevent catastrophic mechanical failure.

Technical Specifications

The SPTPS13 utilizes high-speed pulse processing and redundant logic to maintain turbine safety:

Engineering Advantages

• Ultra-High-Speed Trip Response: The SPTPS13 processes safety-critical trip logic independently of the main controller's scan cycle. This hardware-level execution ensures that the system triggers an emergency shutdown within milliseconds of an overspeed event, protecting the turbine rotor and blading.

• Redundant 2-out-of-3 (2oo3) Voting: The module supports 2oo3 voting architectures to eliminate single points of failure. This configuration prevents "nuisance trips" caused by a single faulty sensor while ensuring that the system initiates a trip if two out of three sensors confirm a danger state.

• Precision Speed Processing: Integrated pulse-counting circuitry handles high-frequency signals from magnetic pickups (MPU) or proximity probes. The module calculates rotational velocity with extreme resolution, allowing for precise acceleration monitoring and overspeed setpoint enforcement.

• Continuous Trip-String Monitoring: The module constantly verifies the electrical integrity of the physical trip solenoid circuits. It detects open-circuit or short-circuit conditions, alerting maintenance personnel to protection system vulnerabilities before a crisis occurs.

• Hardened Signal Isolation: Robust galvanic isolation protects the internal logic from electromagnetic interference (EMI) and high-voltage transients common in power plant environments. This ensures that electrical noise from generators or heavy motors does not result in an accidental turbine trip.

FAQs

• Does the SPTPS13 require a BRC controller to execute a trip?

  While the SPTPS13 communicates status and alarms to the Bridge Controller (BRC), it executes the final trip logic autonomously at the hardware level. This ensures protection remains active even if the primary controller fails.

• What type of speed sensors are compatible with this module?

  The SPTPS13 interfaces directly with standard industrial passive magnetic pickups and active proximity sensors. It converts high-frequency pulse trains into RPM data without requiring external signal conditioning modules.

• Is this a refurbished or surplus unit?

  Absolutely not. We guarantee this SPTPS13 is 100% Brand New original hardware. It arrives in the original ABB factory packaging with all security seals, serial numbers, and technical documentation intact.

• How does the module identify the "First Out" alarm?

  The SPTPS13 captures and time-stamps the specific input that initiated the trip sequence with millisecond accuracy. This "First Out" data allows engineers to identify the root cause of a shutdown instantly, significantly reducing downtime.
