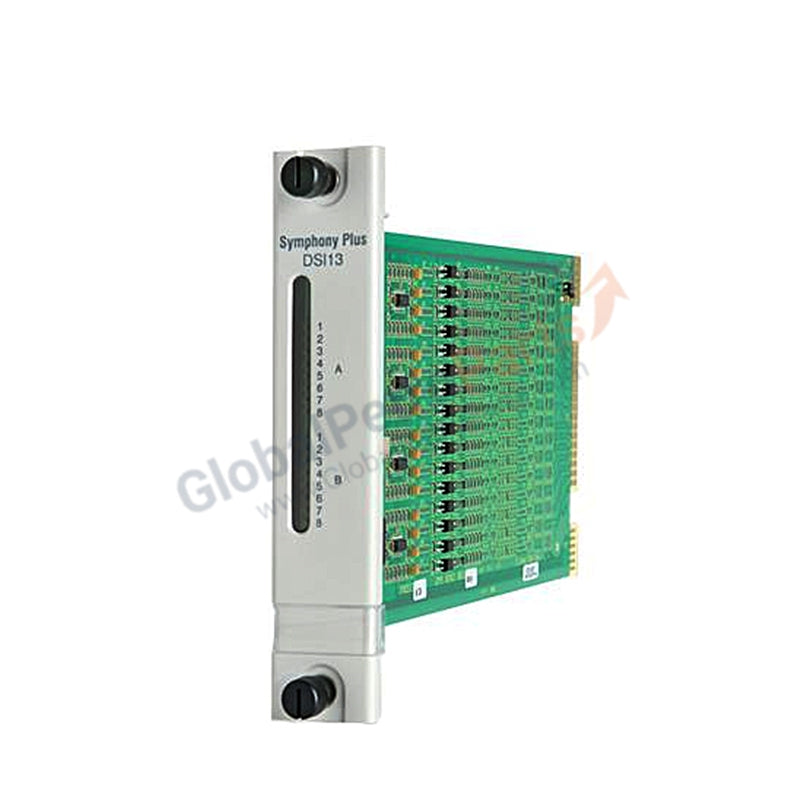

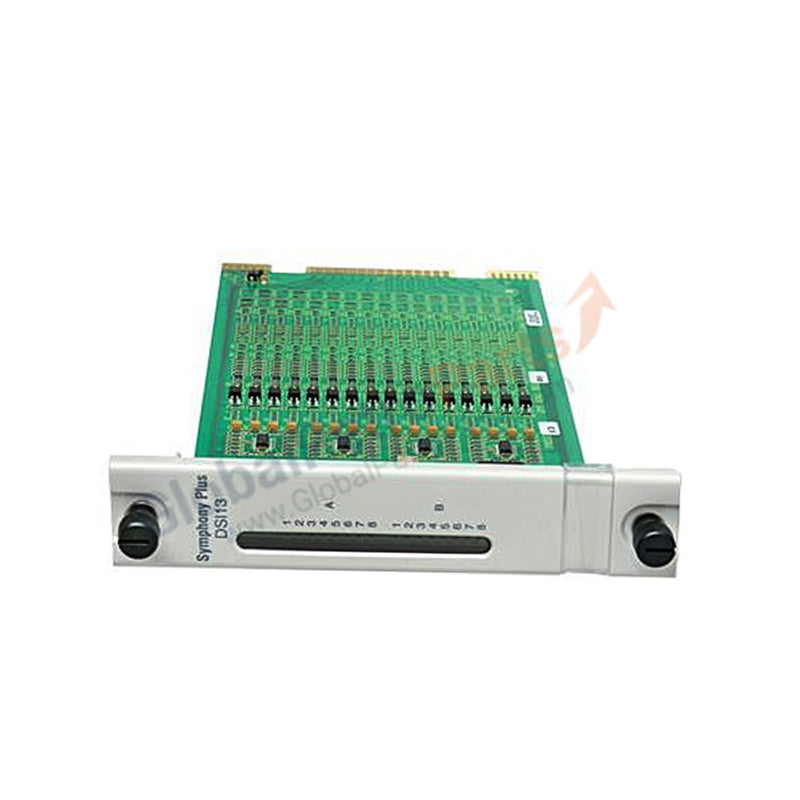

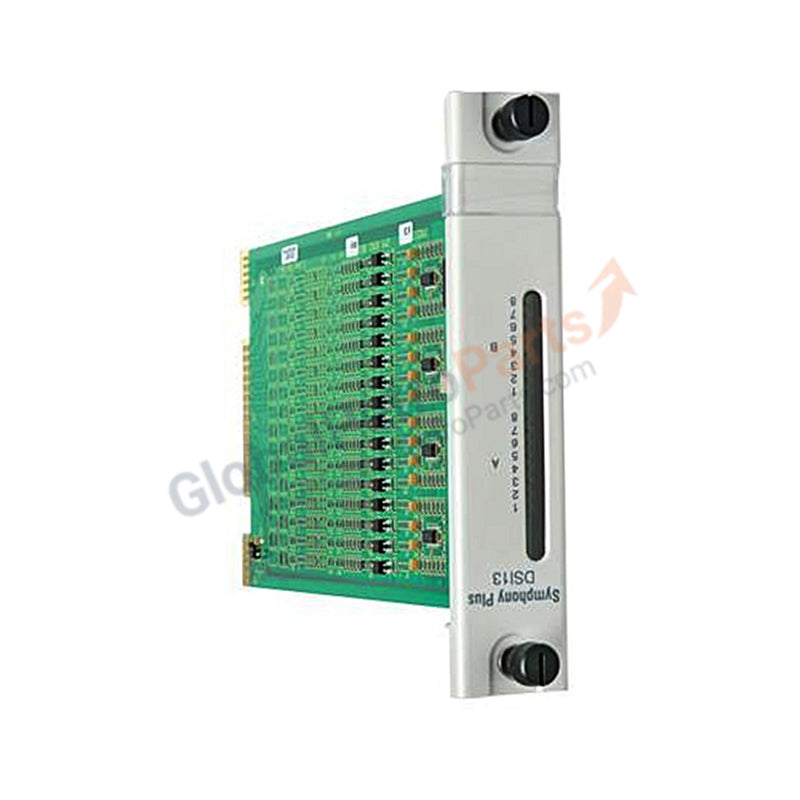

ABB | Symphony Plus Harmony | SPDSI13 | Digital Input Module

Product Description

The ABB SPDSI13 Digital Input Module is a rack-mounted hardware unit designed for Symphony Plus Harmony systems. It provides reliable acquisition of discrete signals from sensors and field devices, ensuring accurate monitoring and control in distributed automation environments.

Technical Specifications:

• Manufacturer: ABB

• Model Number: SPDSI13

• Product Series: Symphony Plus / Harmony

• Product Type: Digital Input Module

• Number of Inputs: 16 digital input channels

• Input Voltage: 24 VDC

• Dimensions (D × H × W): 73.66 mm × 360.68 mm × 269.24 mm

• Weight: 0.45 kg

• Category: Small equipment (no external dimension exceeds 50 cm)

• System Compatibility: Fully compatible with ABB Symphony Plus Harmony racks

Key Features:

• Multi-Channel Input: 16 channels for flexible digital signal acquisition.

• Standard Voltage Operation: Designed for 24 VDC input signals.

• Reliable Monitoring: Ensures accurate detection of sensor and switch states.

• Compact Design: Slim profile for efficient rack integration.

• System Integration: Seamlessly connects with ABB Symphony Plus control systems.

Applications:

• Power generation plants requiring discrete signal monitoring

• Industrial automation systems with multiple sensor inputs

• Manufacturing environments with distributed control systems

FAQ:

• Q: What voltage range does the SPDSI13 support?  A: It operates at 24 VDC, the standard for industrial digital inputs.

• Q: How many signals can be connected simultaneously?  A: The module supports up to 16 independent digital inputs.

• Q: Is the SPDSI13 compatible with older ABB Harmony racks?  A: Yes, it is designed for universal fit within Symphony Plus Harmony systems.

Comparison with Similar Models:

• SPDSI11: 8-channel digital input module, compact size

• SPDSI13: 16-channel version, standard 24 VDC input

• SPDSI15: Extended input range with enhanced diagnostics
