ABB TA524 AC500 Dummy Communication Module 1SAP180600R0001

ABB TA524 – Terminal Base Slot Cover

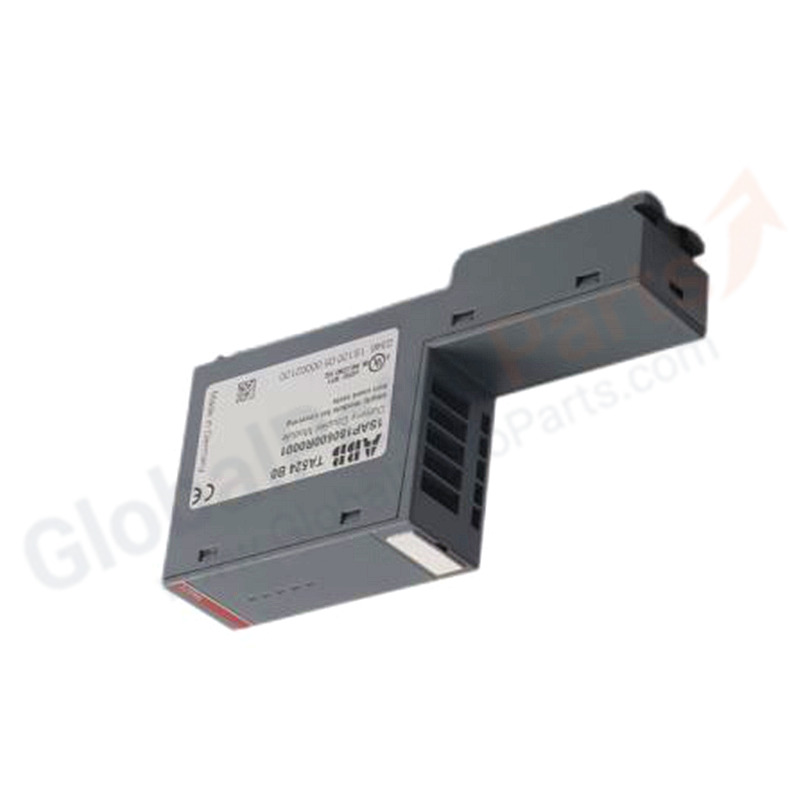

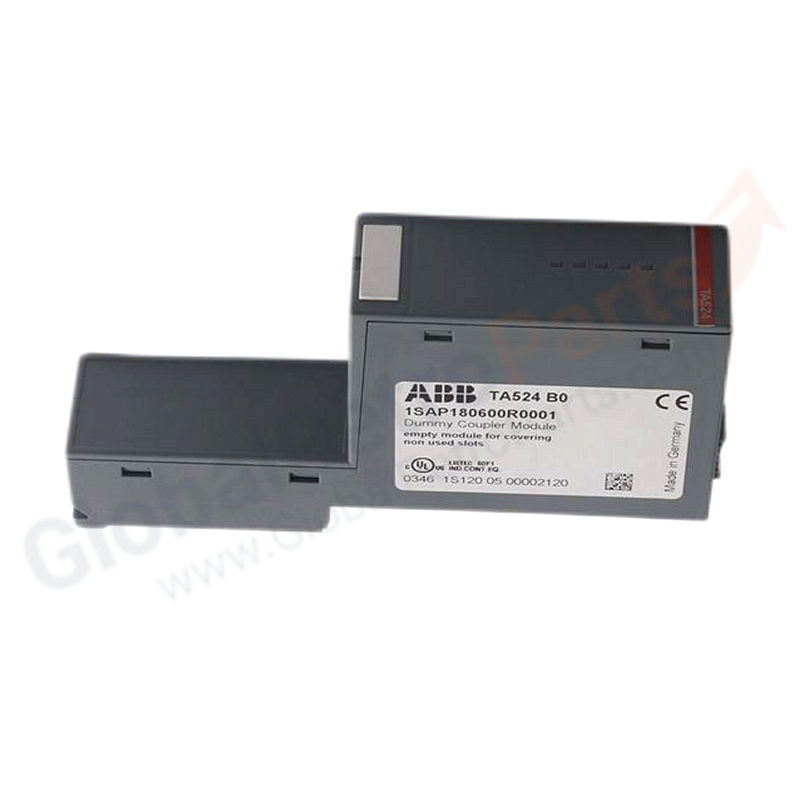

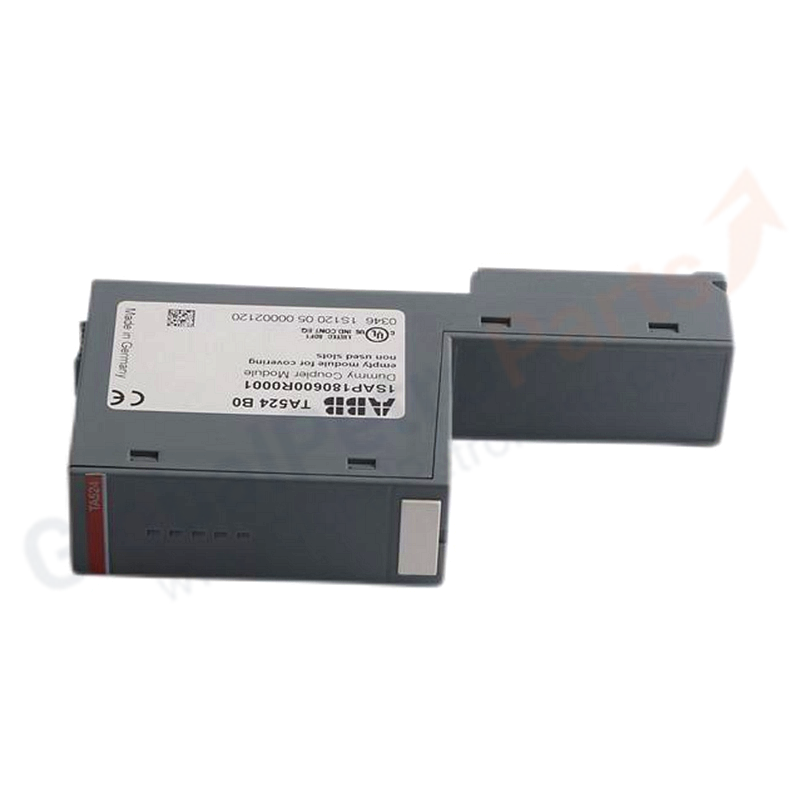

The ABB TA524 (Product ID 1SAP180600R0001) is a dummy communication module and terminal base slot cover. It protects unused communication slots on TB5xx, TB5xxx, and TF5xxx terminal bases from dust and inadvertent contact.

• Function: Slot cover for unused communication module positions
• Compatibility: TB5xx, TB5xxx, TF5xxx terminal bases
• Accessory Type: Mechanical cover
• Protection: IP20
• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +70°C
• Dimensions: 135 mm × 28 mm × 62 mm
• Net Weight: 0.059 kg
• Gross Weight: 0.08 kg

Technical Specifications

FAQ

1. Purpose
   The TA524 covers unused communication module slots on terminal bases. It prevents dust accumulation and protects against inadvertent touch.
2. Compatibility
   The cover fits all TB5xx, TB5xxx, and TF5xxx series terminal bases in the AC500 distributed I/O system.
3. Installation
   The TA524 mounts in the same way as a standard communication module. Snap it into the empty slot until the retention clips engage.
4. IP Rating
   The module maintains IP20 protection rating when installed. It is suitable for installation in standard industrial control cabinets.

Installation Guide

• Step 1: Identify unused communication module slots on the terminal base.
• Step 2: Align the TA524 cover with the slot opening.
• Step 3: Press the cover into the slot until both retention clips click into place.
• Step 4: Verify the cover sits flush with adjacent modules. No gaps should be visible.
• Step 5: Close the terminal base cover. The IP20 rating is now maintained across all slots.

Selection Tips

Order TA524 for every unused communication slot on TB5xx and TF5xxx terminal bases. Maintaining full slot coverage ensures proper IP20 protection and prevents foreign object entry. The module is in active production status.
