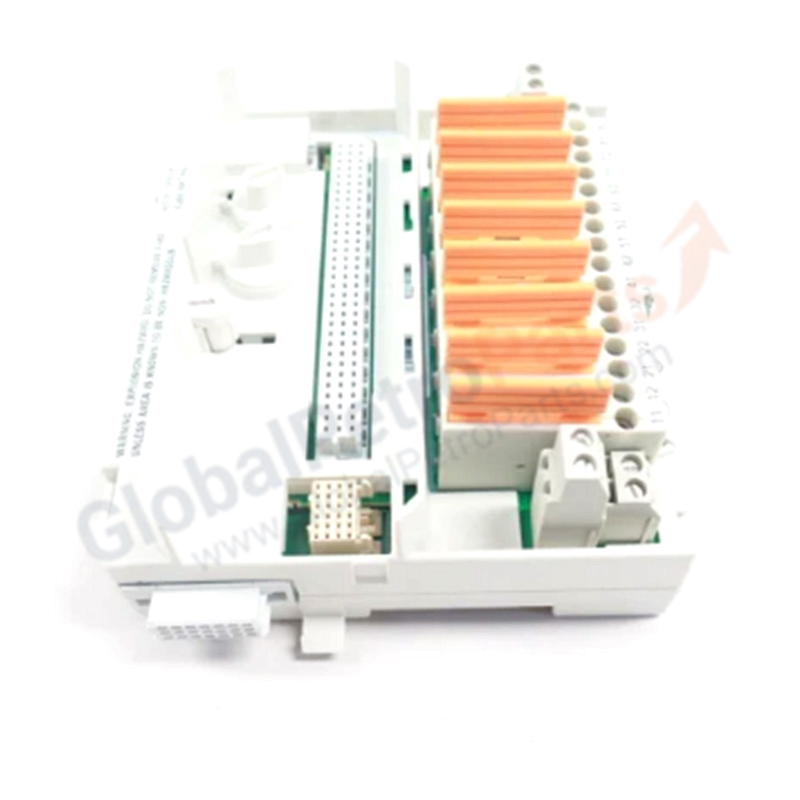

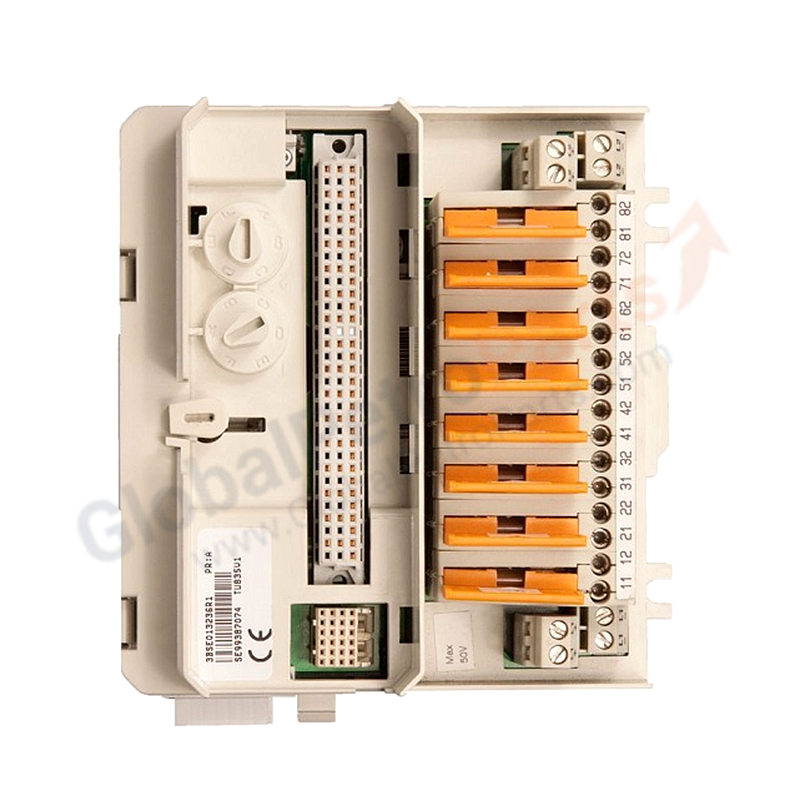

ABB TU836V1 3BSE013237R1 Extended Module Termination Unit

Overview

The ABB TU836V1 (Part Number: 3BSE013237R1) is an Extended Module Termination Unit (MTU) designed for the S800 I/O platform. It functions as a single-slot, non-redundant, passive interface baseplate that connects one S800 I/O module to the ModuleBus. Featuring three rows of toolless spring-clamp terminals with increased cross-sectional wiring capacity, the TU836V1 provides a vibration-resistant, heavy-duty field-side signal termination path without any active electronic failure points on the board.

Technical Specifications

• Product Type: Extended Module Termination Unit (MTU) with Heavy-Duty Spring Terminals
• Model Code: TU836V1
• Part Number: 3BSE013237R1
• Manufacturer: ABB
• System Family Compatibility: S800 I/O System (Accepts various 800-series modules)
• Channel / Module Capacity: Single-slot layout (1 module per MTU)
• Terminal Design Framework: Three-row heavy-duty spring-clamp terminal block architecture
• Maximum Rated Voltage: 50 V
• Signal Connection Wire Sizes: Solid/Stranded: 0.2 to 4.0 mm² (24 to 12 AWG)
• Return Connection Wire Sizes: Solid/Stranded: 0.2 to 2.5 mm² (24 to 14 AWG)
• Ingress Protection Rating: IP20 (IEC 60529 Compliant)
• Conformal Coating: Factory standard protection for harsh environment reliability
• Mounting Style: Horizontal or Vertical 35 mm DIN Rail
• Physical Dimensions: 20.4 cm x 5.6 cm x 4.7 cm
• Product Net Weight: 0.29 kg

Installation Notes

• Snap the TU836V1 MTU firmly onto the cabinet DIN rail until the rear locking mechanism fully engages.
• Ensure the integrated grounding clip makes solid, paint-free contact with the metallic rail to guarantee reliable EMI/RFI shielding.
• Set the mechanical keying wheels on the MTU face to exactly match the designated keying profile of the target S800 I/O module before slotting the electronics in.
• Insert a small screwdriver tool into the terminal actuator slot to open the internal clamp, push the stripped field wire firmly into place, and remove the tool to create a permanent, gas-tight bond.
