ABB TU841 3BSE020848R1 Redundant Module Termination Unit | S800 I/O

Product Overview

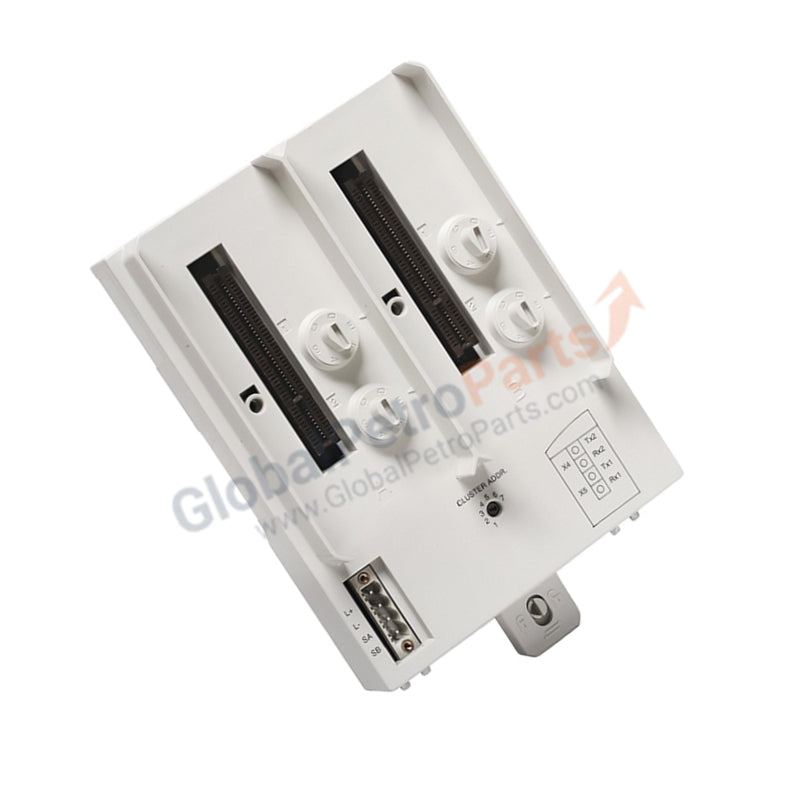

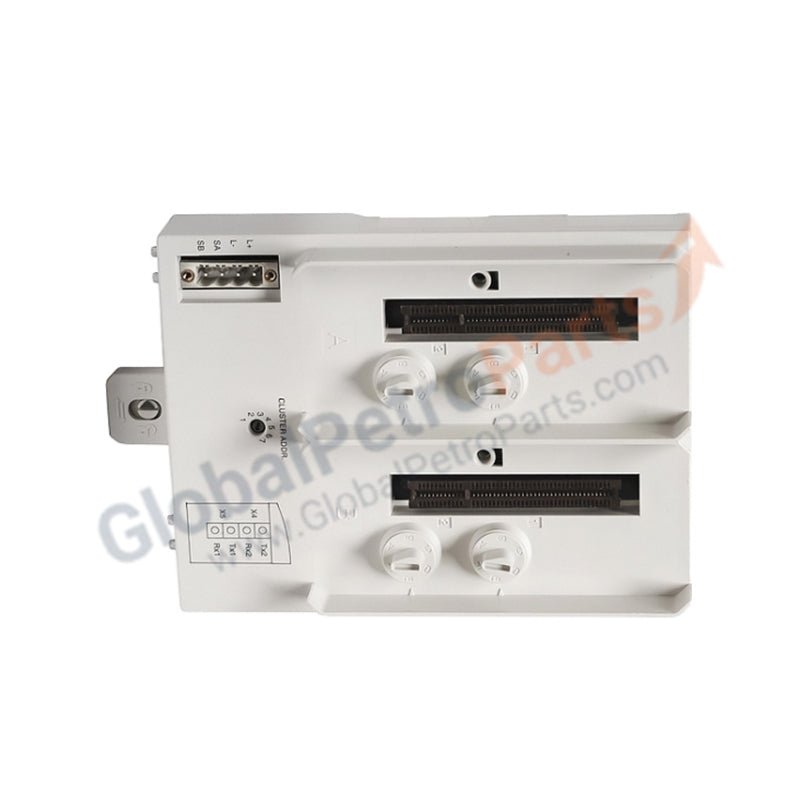

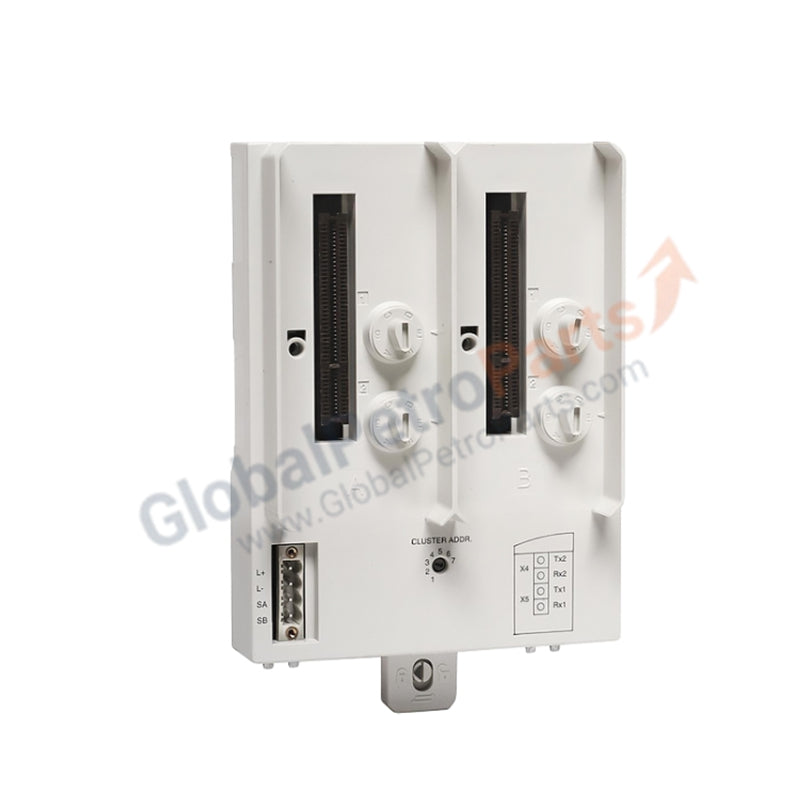

The ABB TU841 (3BSE020848R1) functions as a high-availability Redundant Module Termination Unit (MTU) within the S800 I/O system. This unit provides the critical physical interface for 16-channel I/O modules, enabling dual-module redundancy to eliminate single points of failure in mission-critical loops. We provide this component as 100% brand new, original factory equipment, ensuring seamless integration into your Advant or 800xA control architecture.

Technical Specifications

The TU841 utilizes a dual-row terminal block design to manage high-density field wiring and redundant power distribution.

Engineering Advantages

• Fault-Tolerant Operation: The TU841 hosts two I/O modules in a redundant pair. If one module detects an internal fault, the system shifts processing to the healthy module without interrupting field signals.

• Hot-Swap Capability: This MTU allows maintenance teams to replace a faulty I/O module while the process remains live. The redundant architecture ensures the plant stays operational during hardware swaps.

• Optimized Power Routing: The baseplate includes integrated process power distribution. This design removes the need for external fuse blocks or distribution strips, reducing potential failure points in the wiring chain.

• Simplified Field Wiring: The 16-channel layout provides two terminals per channel alongside dedicated process power and 0V return points. This organization accelerates commissioning and simplifies troubleshooting in high-density control cabinets.

FAQs

• Which I/O modules are compatible with the TU841? The TU841 supports a range of S800 I/O modules requiring redundancy, including AI845, DI840, and DO840. Always check the specific module hardware revision for firmware compatibility.

• Does the TU841 require a specific mounting direction? Yes. Mount the TU841 horizontally on a standard DIN rail. Horizontal mounting optimizes airflow across the redundant modules and ensures the locking mechanisms engage correctly.

• Can I use the TU841 for single (non-redundant) module applications? While the TU841 functions with a single module, engineers typically select the TU841 specifically to utilize its redundant capabilities. For non-critical loops, a single MTU (like the TU810) offers a more cost-effective footprint.

• What is the condition of this unit? We guarantee this TU841 3BSE020848R1 is 100% Brand New and arrives in original ABB packaging. We do not sell refurbished or "new-surplus" parts with compromised lifespans.
