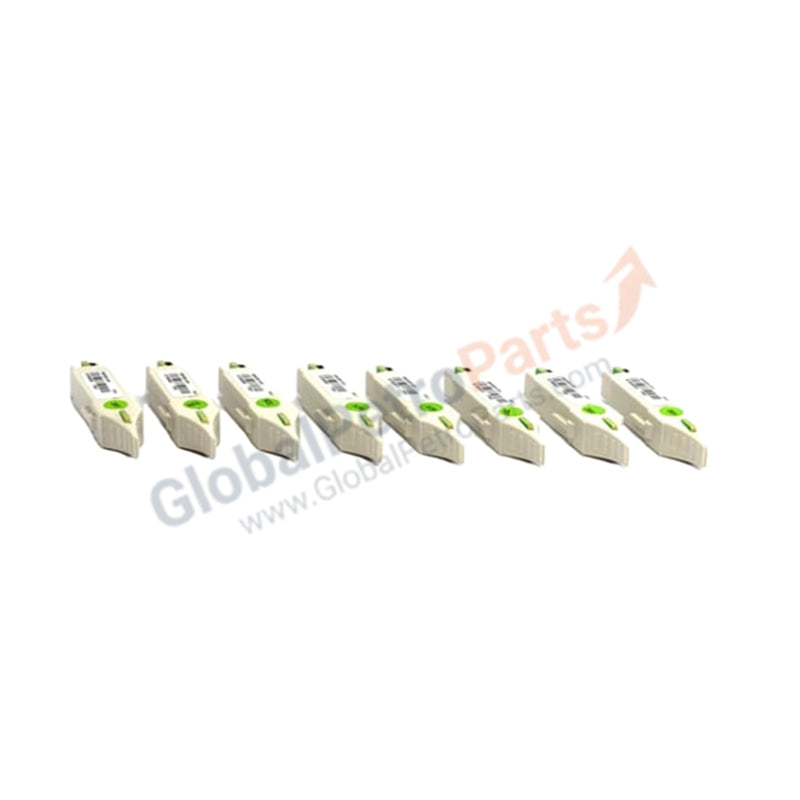

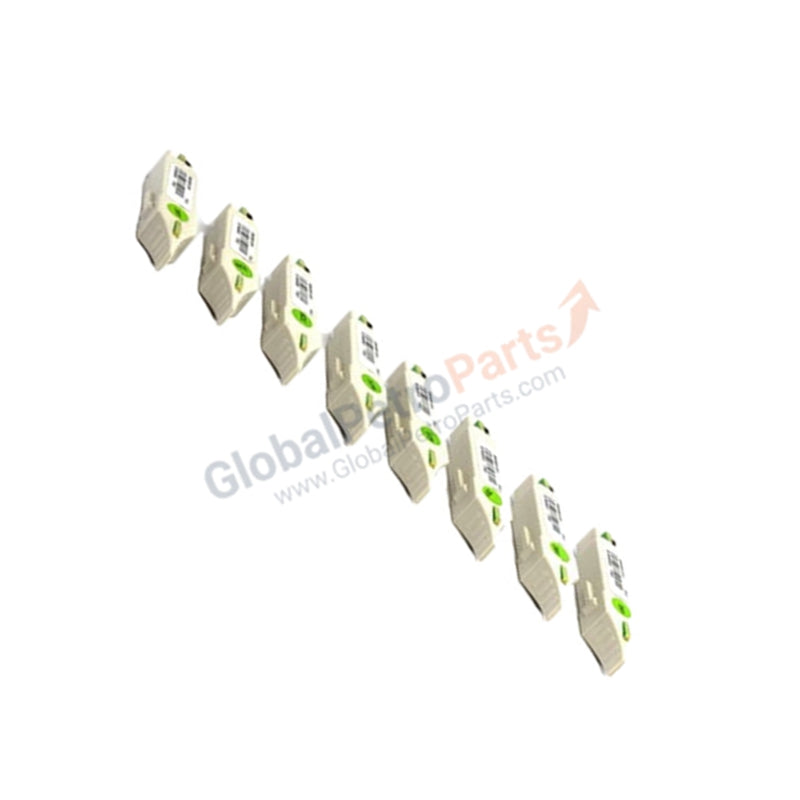

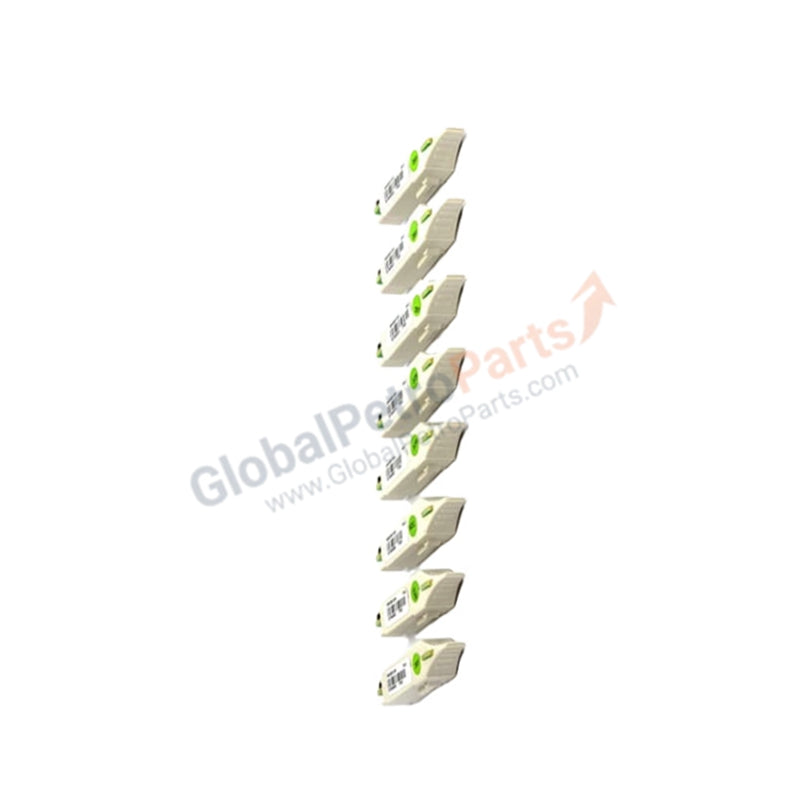

ABB TY801K01 3BSE023607R1 S800 I/O Shunt Resistor Kit

Product Overview

The ABB TY801K01 (3BSE023607R1) functions as a high-precision shunt resistor assembly within the S800 I/O system. This specialized component provides the necessary $125 + 125$ ohm resistance path for current-to-voltage conversion in high-integrity analog input loops. We supply this kit as 100% Brand New and Original, specifically designed for use with AI845 and AI880A modules. It ensures the accurate transformation of 4-20mA process signals into readable voltage levels for the DCS controller while maintaining the signal integrity required for HART communication.

Technical Specifications

The TY801K01 utilizes a compact, fixed-resistor architecture optimized for S800 termination units:

Engineering Advantages

• Precision Signal Conversion: The $125 + 125$ ohm configuration ensures exact 4-20mA current monitoring. This precise resistance allows the AI845 and AI880A modules to capture process variables with high resolution, facilitating tighter control in sensitive temperature or pressure loops.

• Redundant Loop Support: The "dual" resistor design ($125 + 125$ ohms) specifically supports redundant analog input configurations. When mounted on redundant termination units like the TU844 or TU854, it provides balanced resistance paths for both primary and secondary I/O modules, preventing signal drift during module switchovers.

• Simplified Field Integration: The TY801K01 features a customized mechanical form factor that docks directly into the specified Module Termination Units (MTU). This "plug-in" design eliminates the need for manual resistor wiring or external terminal blocks, significantly reducing installation time and potential wiring errors.

• Industrial Thermal Stability: ABB engineers these resistors to withstand the thermal fluctuations common inside high-density control cabinets. The materials resist resistance drift caused by heat, ensuring the analog input remains calibrated and accurate across the entire operating temperature range.

• Compact Footprint: With a width of only 15.5 mm, the shunt kit maintains the high-density advantages of the S800 I/O system. It occupies minimal space on the MTU, allowing for maximum I/O count within a standard cabinet enclosure.

FAQs

• Why does the TY801K01 use a 125 + 125 ohm configuration?

  This dual-resistor setup provides a combined 250-ohm resistance, which is the standard for converting 4-20mA signals to a 1-5V range. The split configuration allows for specialized signal conditioning and redundancy management within the S800 termination unit architecture.

• Can I use this shunt with standard DI modules?

  No. The TY801K01 is strictly designed for high-integrity Analog Input modules, specifically the AI845 and AI880A. Using this shunt with incompatible modules may result in incorrect signal readings or hardware damage.

• Is this a refurbished or generic resistor kit?

  Absolutely not. We guarantee this TY801K01 is 100% Brand New original ABB hardware. It arrives in the original factory packaging with all security seals, the 3BSE023607R1 part number, and technical documentation intact.

• Which termination units support the TY801K01?

  This shunt kit is compatible with the TU834, TU844, TU845, and TU854 termination units. Always verify your MTU model before installation to ensure proper mechanical seating and electrical contact.
