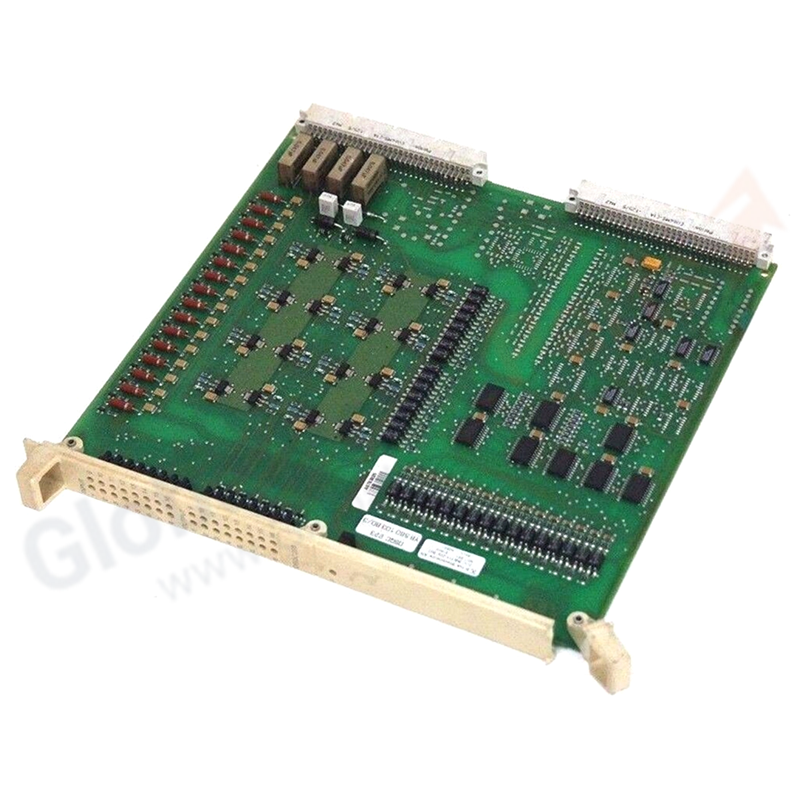

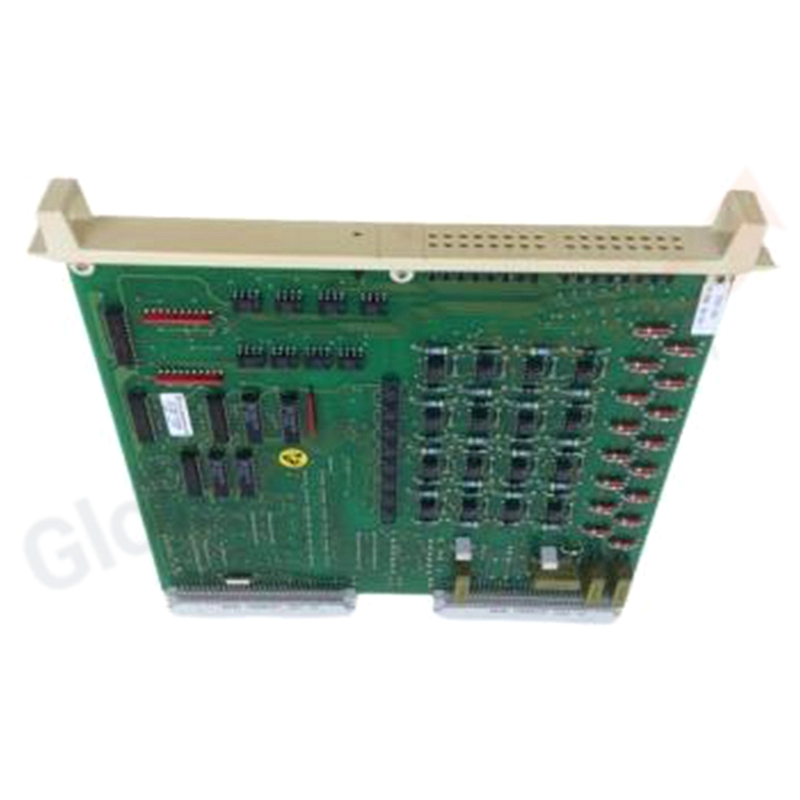

ABB YB560103-BD DSQC 223 Digital I/O Board

Product Overview

The ABB DSQC 223 is a Digital I/O Board (Part No. YB560103-BD) for ABB S3/S4 robotic control systems. It provides digital input and output channels for interfacing switches, sensors, solenoid valves, and relay coils with the robot controller. As a core I/O module in the DSQC family, it enables reliable signal acquisition and actuator control for industrial automation cells.

Specifications

• Part Number: YB560103-BD
• Product Type: Digital Input/Output Board
• Operating Voltage: 24V DC (typical)
• Compatible Controllers: ABB S3, S4, IRB 300 series
• Mounting: Controller rack/backplane installation
• Operating Temperature: 0°C to +55°C (industrial standard)
• Storage Temperature: -20°C to +70°C
• Protection Class: IP20

Compatibility & Applications

Designed for ABB S3/S4 robot controllers and IRB 300 series robots. Essential for gripper control, limit switch monitoring, safety interlock systems, pneumatic valve driving, and general digital signal interfacing in robotic work cells.

FAQ

• Q: What is the difference between DSQC 223 and DSQC 224? A: DSQC 223 is a digital I/O board, while DSQC 224 is an analog I/O board. Select based on your signal type requirements.
• Q: Can DSQC 223 be used in IRC5 controllers? A: DSQC 223 is designed for S3/S4 systems. IRC5 controllers typically use DSQC 652, 653, or 658 I/O modules.
• Q: What revision should I order? A: Common revisions include /1, /2, /3, and /4. Verify your existing board revision for exact replacement compatibility.
• Q: Does it require external power? A: The board is powered from the controller backplane; external 24V DC may be required for field devices.

Installation Guide

1. Power off the robot controller and verify zero energy state.
2. Remove the existing DSQC 223 board by releasing the retaining clips.
3. Insert the new board firmly into the backplane slot until fully seated.
4. Connect digital input devices (switches, sensors) to input terminals.
5. Connect digital output devices (solenoids, relays) to output terminals.
6. Verify all wire terminations are secure and properly torqued.
7. Restore power and test I/O channels using the robot programming environment.

Selection Tips

• Select DSQC 223 for legacy S3/S4 robot controller digital I/O expansion and replacement.
• Always match the board revision (/1, /2, /3, /4) to your controller firmware requirements.
• For combined analog/digital I/O, consider DSQC 239 or DSQC 315.
• Verify total I/O count requirements; multiple DSQC 223 boards can be installed if slots are available.
