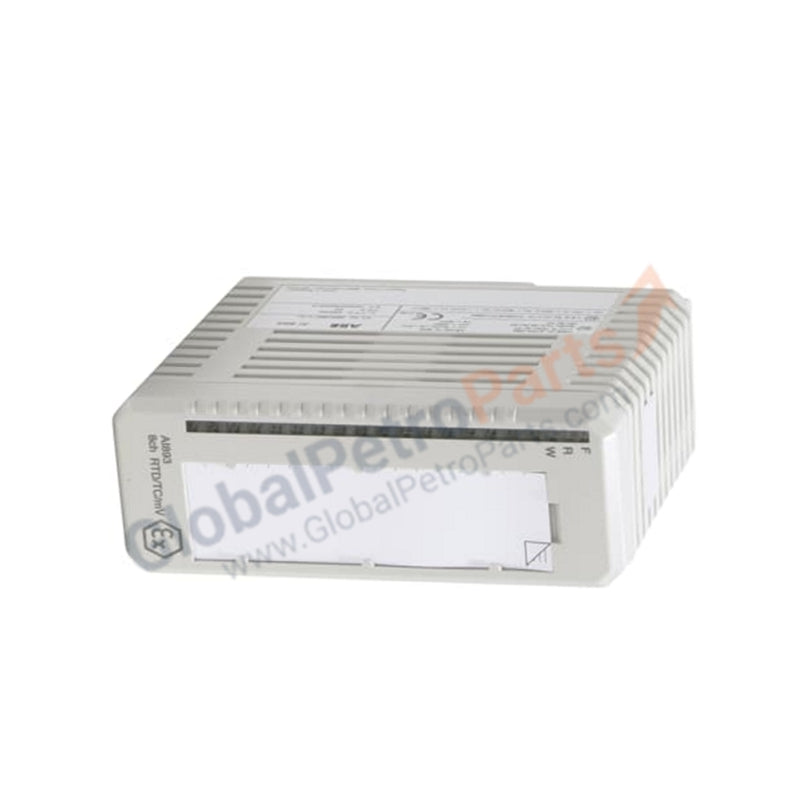

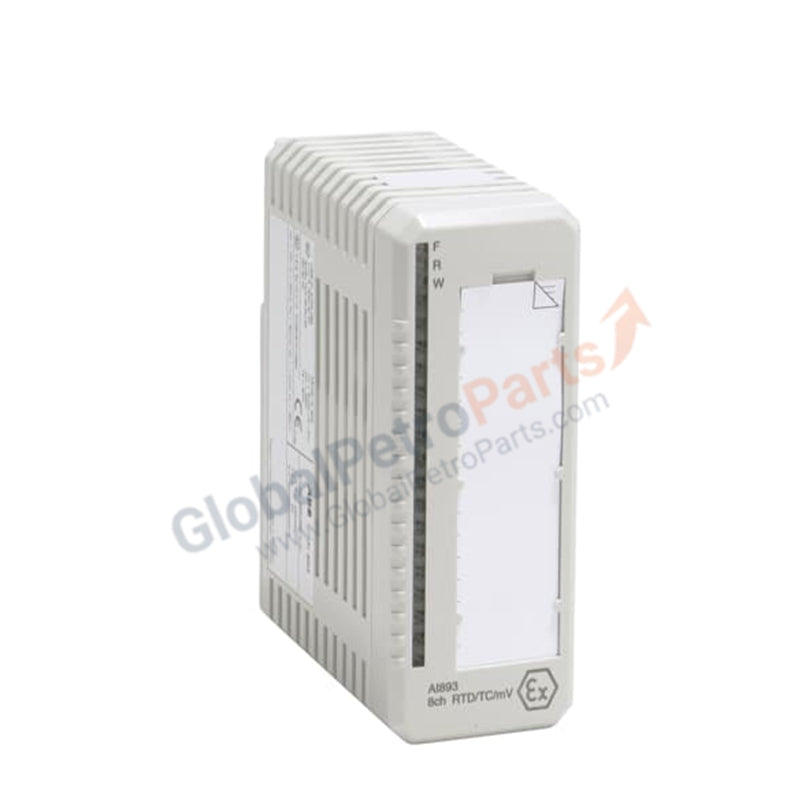

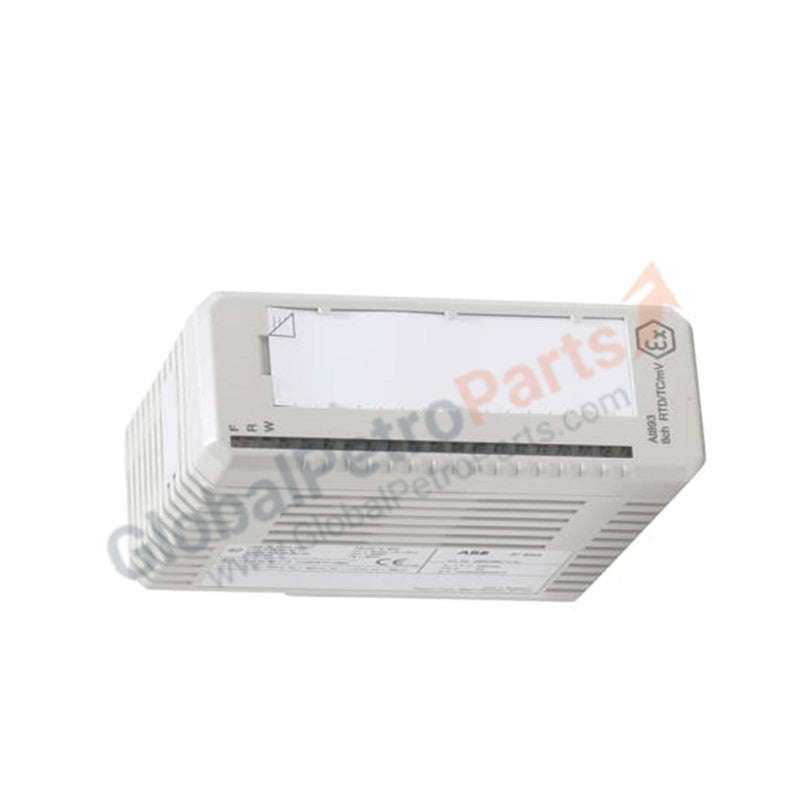

AI893 3BSC690141R1 | ABB | S800 I/O Intrinsic Safety TC/RTD Input Module

Product Overview

The ABB AI893 (3BSC690141R1) serves as a high-precision, intrinsically safe temperature acquisition interface within the S800 I/O distributed system. This module provides eight differential input channels designed to interface directly with Thermocouples (TC) and Resistance Temperature Detectors (RTD) located in hazardous areas (Zone 0/Class 1 Div 1). It converts low-level sensor signals into digital data with 15-bit plus sign resolution, ensuring extreme accuracy for critical thermal processes. We guarantee this unit is 100% Brand New and Original, meeting all factory safety certifications for immediate deployment.

Technical Specifications

The AI893 delivers laboratory-grade precision in a ruggedized industrial form factor:

Engineering Advantages

• Seamless Hazardous Zone Integration: The AI893 features built-in Intrinsic Safety (IS) barriers. This allows engineers to connect sensors from Zone 0 or Class 1 Div 1 locations directly to the S800 I/O rack without purchasing or mounting separate external barriers, saving significant rail space and reducing wiring complexity.

• Exceptional Signal Integrity: With a Common Mode Rejection Ratio (CMRR) exceeding 100 dB and high input impedance (>10 MΩ), the module effectively filters out electrical noise. This ensures accurate temperature readings even when sensor leads run parallel to high-voltage power cables in industrial environments.

• G3-Rated Durability: The module conforms to ISA-S71.04 G3 corrosion protection standards. It resists the corrosive effects of sulfurous gases and moisture, making it the standard choice for pulp and paper mills, refineries, and wastewater treatment plants.

• Low Thermal Footprint: The AI893 dissipates only 0.5 W of power. This low heat emission prevents localized hotspots within the I/O cabinet, extending the operational life of adjacent electronic components and reducing cooling requirements for the overall enclosure.

• Advanced Diagnostics: Front-panel LEDs (Fault, Run, Warning) provide immediate status updates. The module logic supervises each channel for open-circuit conditions and detects short-circuits for RTD sensors, drastically shortening troubleshooting windows during commissioning.

FAQs

• Does the AI893 support both RTD and TC sensors on the same module?

  Yes, the AI893 accepts both RTD and Thermocouple signals. However, you must configure each channel group within the control software to match the specific sensor type and range connected to the hardware terminals.

• Which safety certifications does this module carry?

  The AI893 carries extensive global certifications including ATEX/IECEx Zone 2 (with interface to Zone 0) and cFMus Class 1, Div 2. These ratings authorize its use in highly regulated safety environments.

• What is the maximum resolution of the temperature data?

  The module provides a 15-bit plus sign resolution. For RTD measurements in the 0-400 Ω range, this translates to an error margin of less than 0.1 Ω, providing the high-fidelity data required for precise PID control loops.

• How can I optimize the update cycle time for faster response?

  The update cycle depends on the number of active channels ($n \times 125 + 125$ ms). You can reduce the cycle time by disabling unused channels in the controller configuration, which prioritizes the processing power for active sensors.
