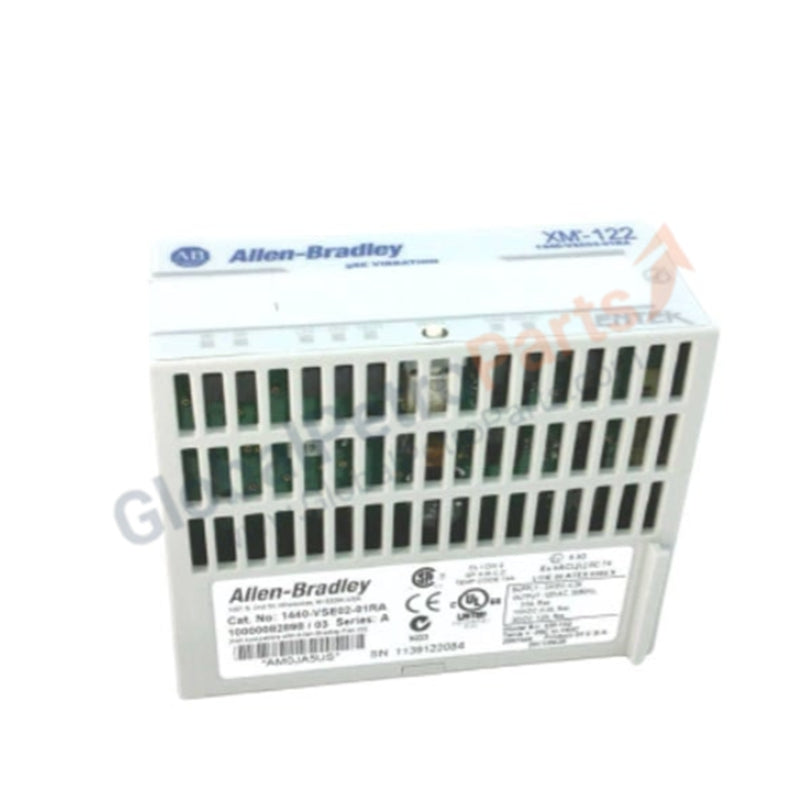

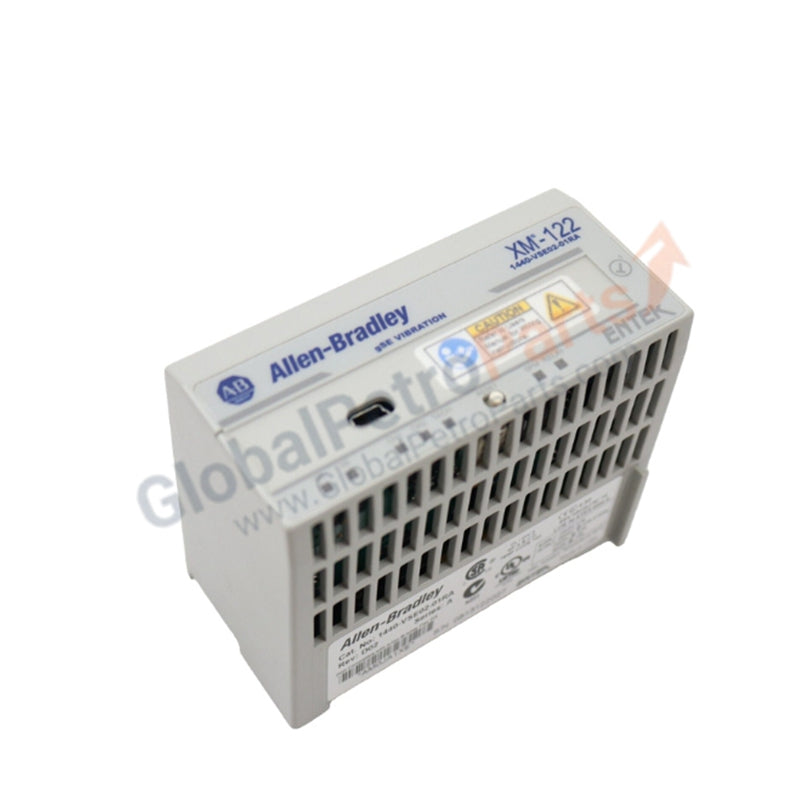

Allen Bradley 1440-VSE02-01RA Dynamic Measurement Module

System Functionality

The 1440-VSE02-01RA is a specialized XM-121 series measurement module designed for high-fidelity machinery condition monitoring and structural health analysis. This module excels at processing dynamic signals to detect vibration anomalies and seismic events in industrial rotating equipment. By utilizing programmable gain and filtering, the 1440-VSE02-01RA provides engineers with the versatility to capture precise g-force and velocity data across a wide range of sensor types, ensuring early detection of mechanical fatigue or operational stress.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Product Series: XM Series (XM-121)

• Model Number: 1440-VSE02-01RA

• Input Channels: 2 Independent Dynamic Channels

• Input Voltage Range: 100 mV to 10 V

• Programmable Gain: Adjustable from 1 to 1000

• Filter Range: User-programmable from 0.1 Hz to 100 Hz

• Data Acquisition: Supports vibration, acceleration, and seismic monitoring

• Diagnostics: Integrated LED indicators for status and fault detection

• Operating Temperature: -20°C to +65°C (-4°F to +149°F)

• Storage Temperature: -40°C to +105°C (-40°F to +221°F)

• Physical Dimensions: 94 mm x 95.3 mm x 57.2 mm

• Net Weight: 0.25 kg (0.55 lbs)

Operational Application

Designed for seamless integration into the Rockwell Automation Integrated Architecture, the 1440-VSE02-01RA is typically deployed in power plants, refineries, and mining operations. Its compact form factor allows for installation in high-density control cabinets, where it monitors critical assets like pumps, fans, and compressors. The module's ability to provide real-time diagnostic feedback via LED indicators ensures that maintenance teams can quickly identify hardware health or signal integrity issues, maintaining high system uptime in demanding industrial environments.

Frequently Asked Questions

How does the programmable gain benefit different sensor types?The 1440-VSE02-01RA allows for customization of gain levels, which enables the module to work effectively with sensors of varying sensitivities. This ensures that low-level signals are amplified correctly for accurate digital processing without saturating the input.

What terminal base is required for the 1440-VSE02-01RA?This module is intended for use with a compatible XM terminal base (typically the 1440-TB-A), which provides the necessary wiring points for field sensors and DeviceNet communication.
