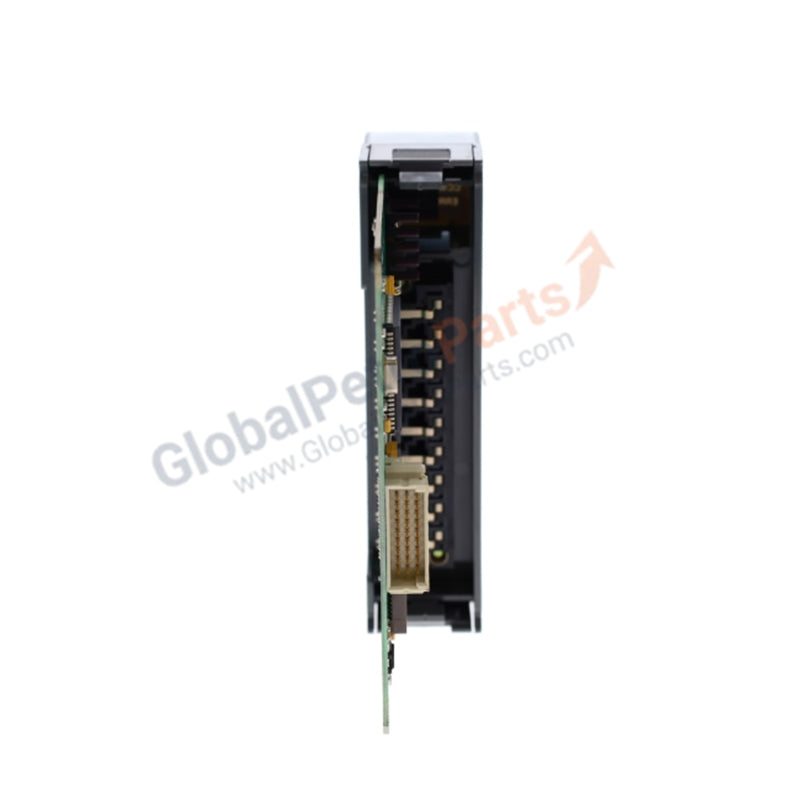

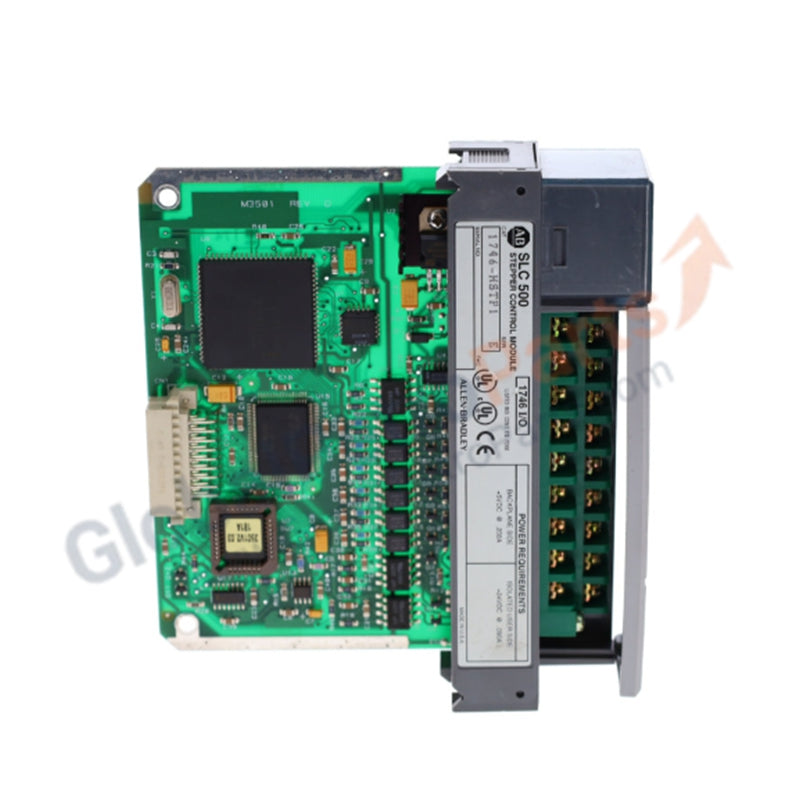

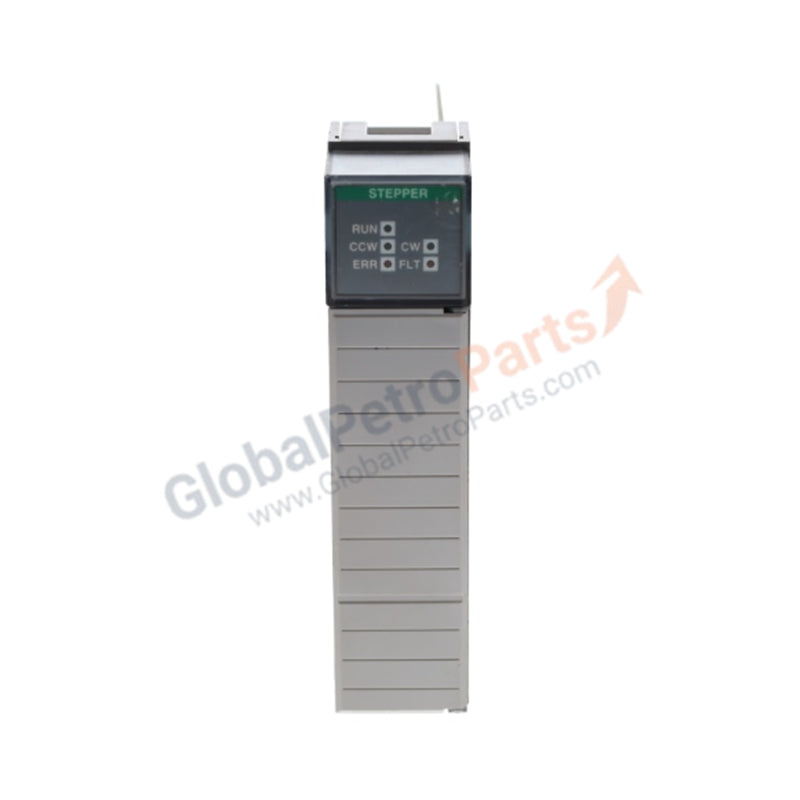

Allen Bradley 1746-HSTP1 SLC 500 Single-Axis Stepper Controller Module

Product Overview

The Allen Bradley 1746-HSTP1 functions as a dedicated single-axis stepper control interface for the SLC 500 PLC platform. This module generates high-speed pulse trains to command stepper motor drivers, enabling precise open-loop positioning within your automation system. We supply this module as 100% Brand New and original, providing a factory-fresh solution for high-speed motion tasks without upgrading your entire legacy control architecture.

Technical Specifications

The 1746-HSTP1 provides high-frequency pulse generation and rapid signal processing to ensure accurate motion profiles:

Engineering Advantages

• High-Resolution Motion: The 250 kHz output frequency supports micro-stepping drivers, allowing for extremely smooth motion and fine positioning increments. This high rate eliminates the "stepping" vibration often found in lower-frequency controllers.

• Precision Trapezoidal Profiling: The module automatically calculates trapezoidal velocity ramps. This hardware-level calculation removes the processing burden from the SLC 500 CPU, ensuring consistent acceleration and deceleration curves regardless of the PLC scan time.

• Noise-Immune Differential Inputs: The 1746-HSTP1 utilizes differential inputs to reject common-mode noise. This solves the persistent industrial problem of signal interference in environments with heavy motor cabling or adjacent high-voltage equipment.

• Rapid Logic Execution: With a step response of 2.5 milliseconds on output signals, the module reacts nearly instantaneously to command changes. This low latency improves throughput in high-speed packaging, labeling, and pick-and-place applications.

FAQs

Q: Which cables do I need to connect the 1746-HSTP1 to my stepper driver?

A: This module requires either the 1746-HT or 1746-HCA I/O connection interface. These specialized connectors ensure secure signal routing between the PLC rack and the external drive unit.

Q: Does the 1746-HSTP1 support closed-loop encoder feedback?

A: No. The 1746-HSTP1 operates as an open-loop stepper controller. It sends pulse and direction commands to a driver but does not process encoder signals directly for position correction.

Q: Can I install multiple 1746-HSTP1 modules in a single SLC 500 chassis?

A: Yes. You can place the module in any available I/O slot (except Slot 0). The only limitation is the power capacity of your SLC 500 power supply, as each module draws 200mA from the 5V backplane.

Q: How does the module handle acceleration changes?

A: The module updates its acceleration step rate every 4 milliseconds or less. This rapid refresh cycle ensures that the stepper motor follows the programmed velocity profile accurately, preventing stalls during high-speed transitions.
