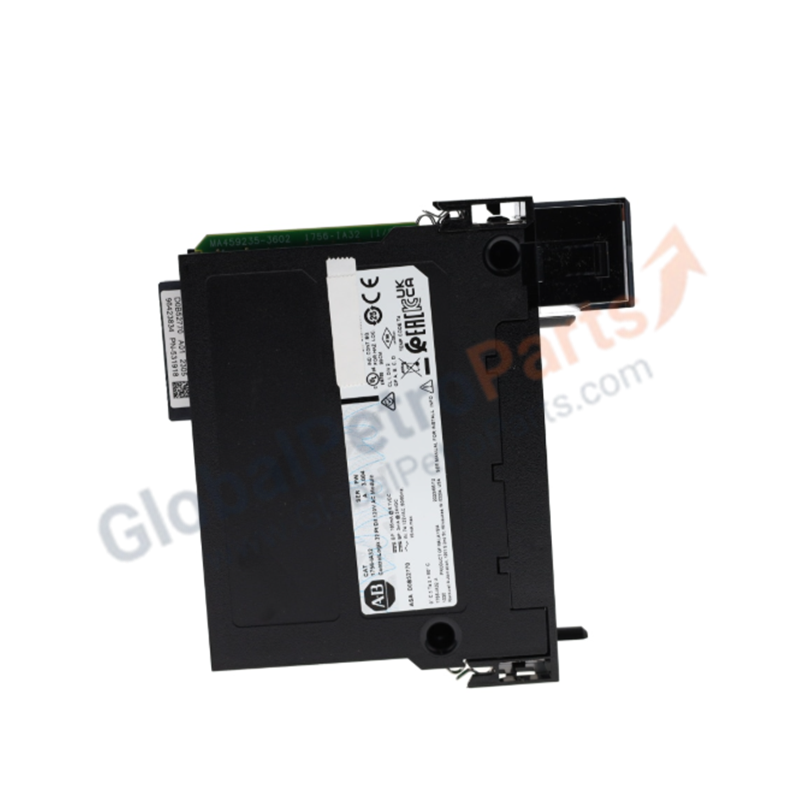

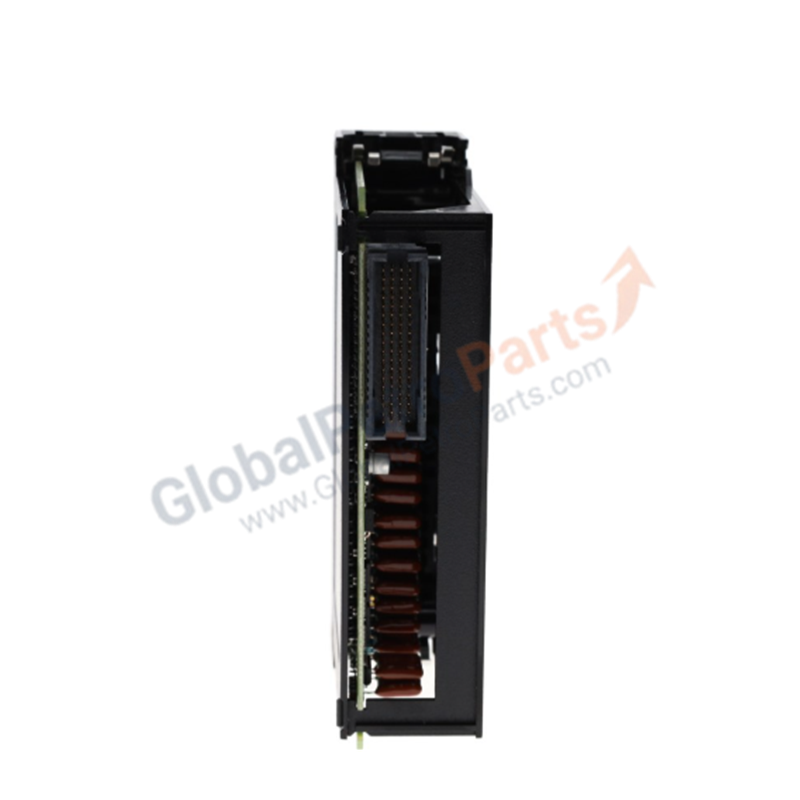

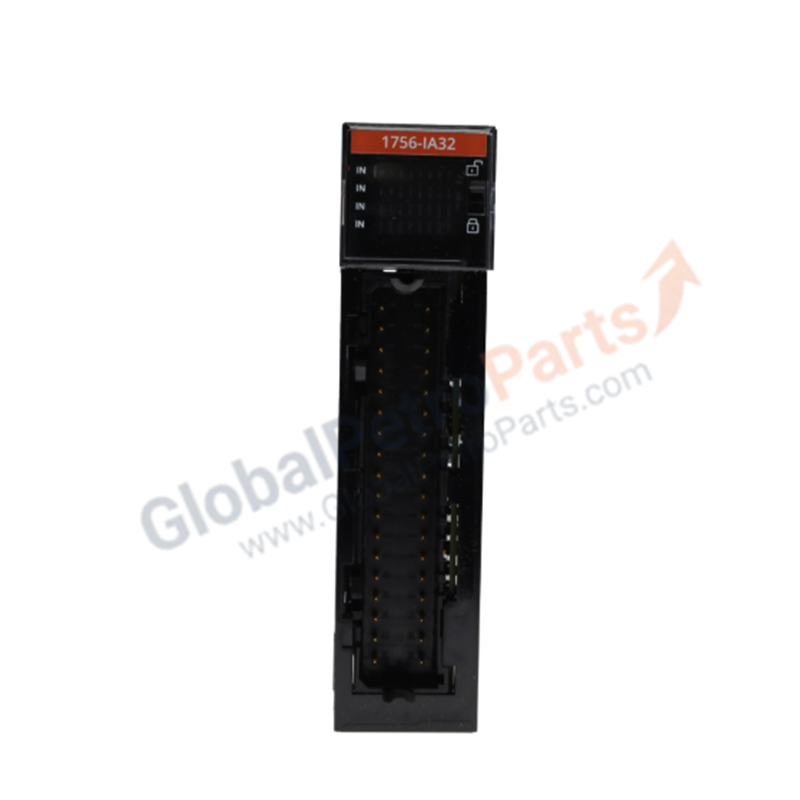

Allen Bradley 1756-IA32 ControlLogix 32-Point 120V AC Digital Input Module

Product Overview

The Allen Bradley 1756-IA32 functions as a high-density digital input interface for the ControlLogix platform. This module interfaces 32 individual 120V AC field-side signals directly to the controller backplane, converting high-voltage plant floor data into actionable logic states. We offer this unit as 100% Brand New and Factory Original, ensuring the highest level of system integrity for your mission-critical automation tasks.

Technical Specifications

Engineering Advantages

• Maximize Rack Utilization: The 32-point high-density design allows engineers to double the input capacity in a single slot compared to standard 16-point modules. This reduces the overall footprint of the ControlLogix chassis and lowers hardware costs per I/O point.

• Enhanced Signal Integrity: Integrated hardware filters mitigate the effects of contact bounce and electrical noise inherent in AC circuits. You can program additional digital filter times (9ms or 18ms) to tailor the response for specific switchgear or sensor types.

• Simplified Maintenance: Support for Removable Terminal Blocks (RTB) allows technicians to replace the module without disconnecting field wiring. This "hot-swappable" capability significantly reduces Mean Time to Repair (MTTR) during critical failures.

• Thermal Efficiency: Advanced internal circuitry manages a maximum power dissipation of only 6.1W at peak load. This efficient thermal profile prevents localized hotspots within the enclosure, even when installing multiple high-density cards side-by-side.

FAQs

• Which Removable Terminal Block (RTB) should I use with the 1756-IA32?

  This module requires a 36-pin RTB due to the high density of the wiring. You should use the 1756-TBCH (Cage Clamp) or 1756-TBSH (Spring Clamp) depending on your preference for wire termination. Note that RTBs are sold separately from the module.

• Does this module support "Change of State" (COS) detection?

  Yes. The 1756-IA32 supports Change of State (COS) and cyclic updates. This feature allows the module to notify the controller immediately when an input transitions, rather than waiting for the next RPI (Requested Packet Interval) scan, optimizing system response time.

• Can I mix different AC phases across the inputs of a single module?

  The 1756-IA32 groups inputs into specific circuits. Always consult the wiring diagram to ensure proper common-side isolation. Mixing different phases on the same common group can cause significant electrical damage and safety hazards.

• Is this unit compatible with older ControlLogix processors?

  This module works with all standard ControlLogix controllers. However, ensure your Studio 5000 or RSLogix 5000 software includes the correct AOP (Add-On Profile) to recognize the 32-point configuration.
