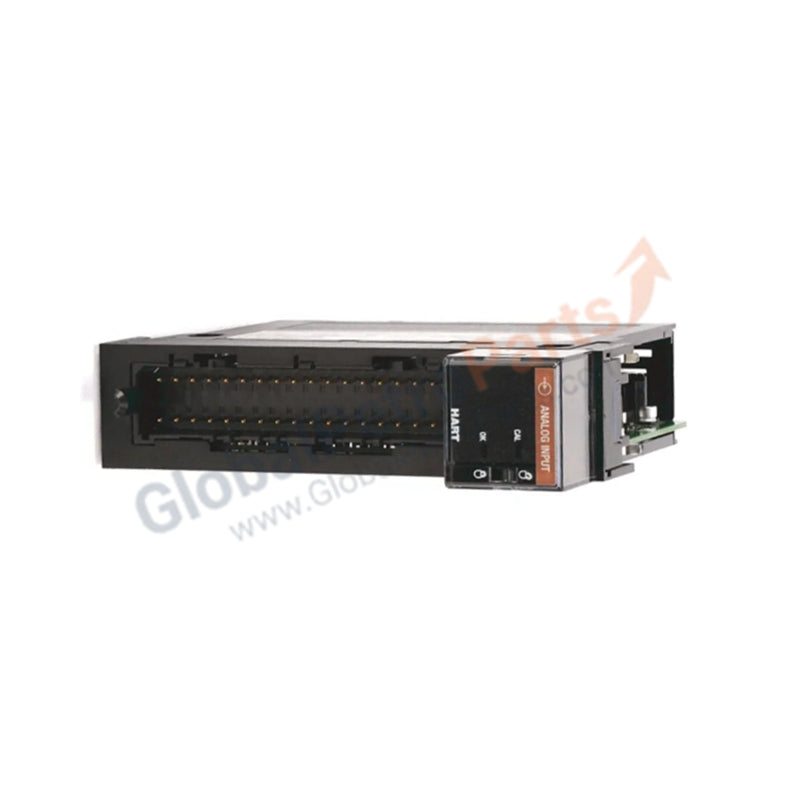

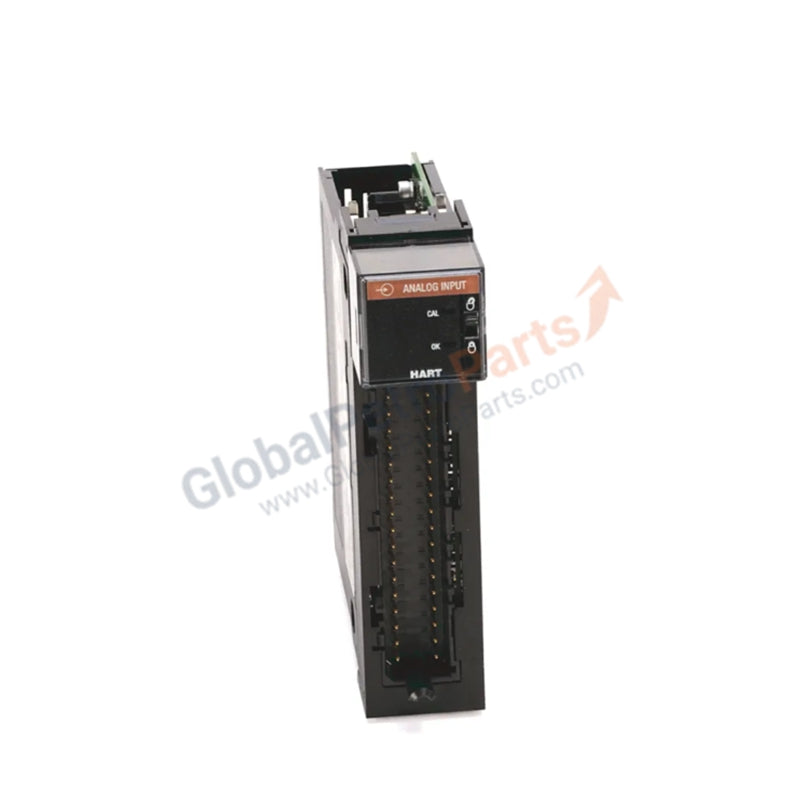

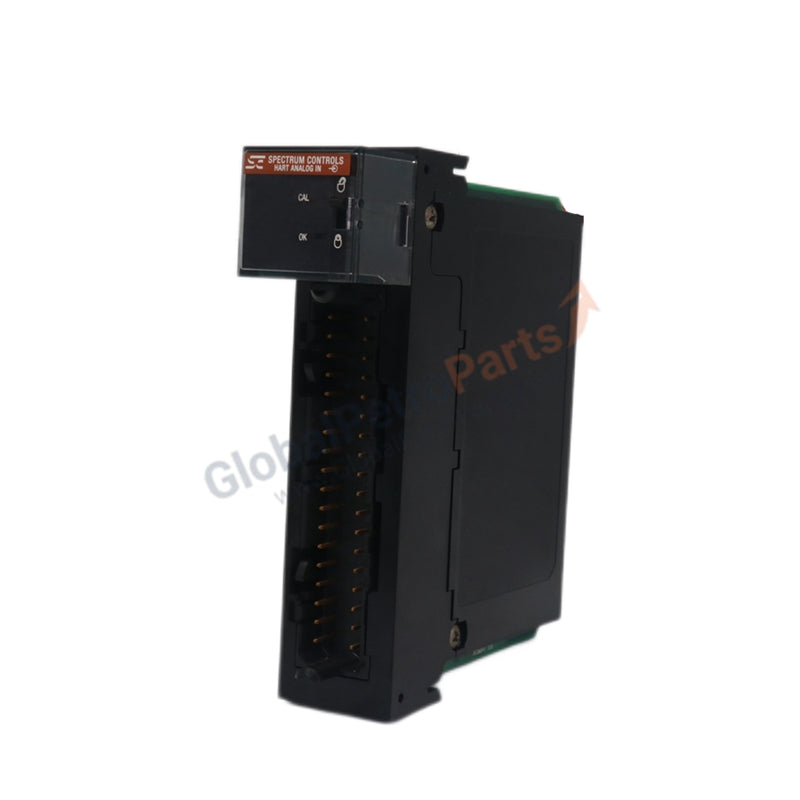

Allen-Bradley 1756-IF16H ControlLogix HART-Enabled Analog Input Module

Product Overview

The Allen-Bradley 1756-IF16H functions as a high-density, HART-enabled analog input interface for the ControlLogix platform. It bridges the gap between field instrumentation and the controller by supporting 16 differential channels, each equipped with its own dedicated HART modem. This architecture allows the module to capture high-resolution process variables (0-20mA or 4-20mA) while simultaneously performing advanced asset management through the HART protocol. We supply this module in 100% Brand New, original factory condition to ensure maximum lifecycle stability for your industrial control architecture.

Technical Specifications

Engineering Advantages

• Independent HART Connectivity: Unlike multiplexed solutions, the 1756-IF16H assigns a dedicated HART modem to every channel. This enables simultaneous communication with all 16 field devices, significantly reducing scan times and accelerating device configuration and diagnostics.

• Precision Signal Integrity: The module utilizes a successive approximation conversion method to deliver up to 21-bit resolution. This precision eliminates quantization errors in sensitive process loops, such as chemical dosing or custody transfer applications.

• Superior Common-Mode Rejection: The 16 differential inputs suppress electrical noise and ground loop interference common in large-scale plant environments. This ensures the controller receives accurate data even when field wiring traverses high-interference zones.

• Hot-Swap Capability: The module supports Removal and Insertion Under Power (RIUP). Engineers can replace or upgrade the hardware without shutting down the entire ControlLogix chassis, minimizing downtime during maintenance cycles.

• Dynamic Range Management: 8V DC overvoltage protection safeguards the internal circuitry against accidental wiring errors or field device surges, preventing cascading failures across the I/O backplane.

FAQs

• Does the 1756-IF16H support standard 4-20mA devices without HART?

  Yes. The module functions as a standard high-density analog input card for non-HART devices. You can enable or disable the HART features on a per-channel basis within the Studio 5000 environment.

• Which Removable Terminal Block (RTB) should I use for wiring?

  The module requires either the 1756-TBCH (36-pin cage clamp) or the 1756-TBS6H (36-pin spring clamp). Note that the RTB is not included with the module and must be ordered separately.

• How does the HART scan time affect performance?

  With all 16 channels HART-enabled, the estimated HART scan time remains approximately 1 second. However, the standard analog signal conversion remains independent and significantly faster (11–328 ms), ensuring your real-time control loops remain responsive.

• Is this unit a refurbished or surplus item?

  No. We guarantee that this 1756-IF16H is 100% Brand New and arrives in its original manufacturer packaging with an intact factory seal.
