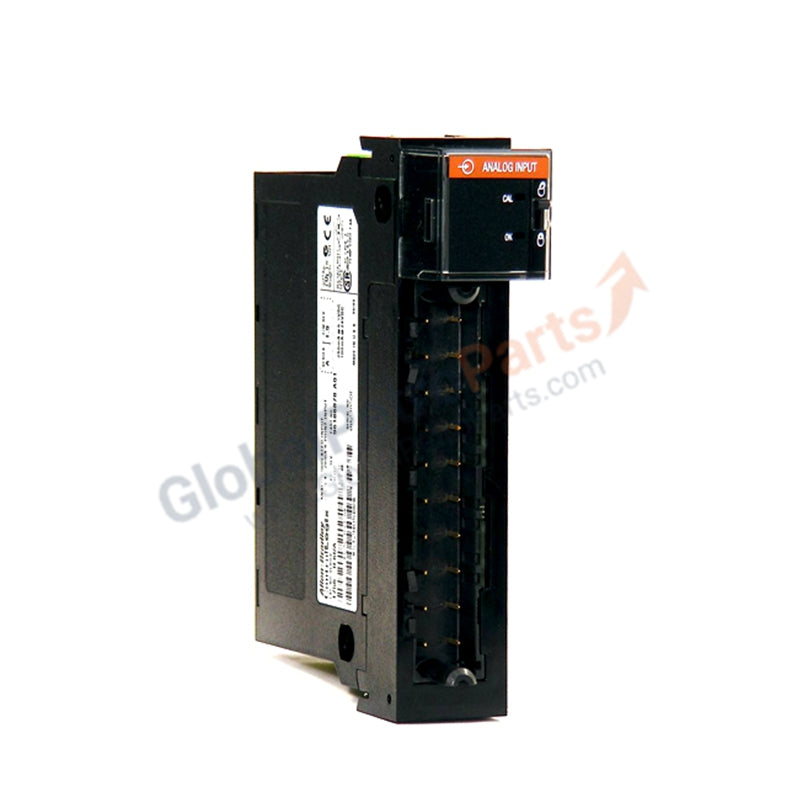

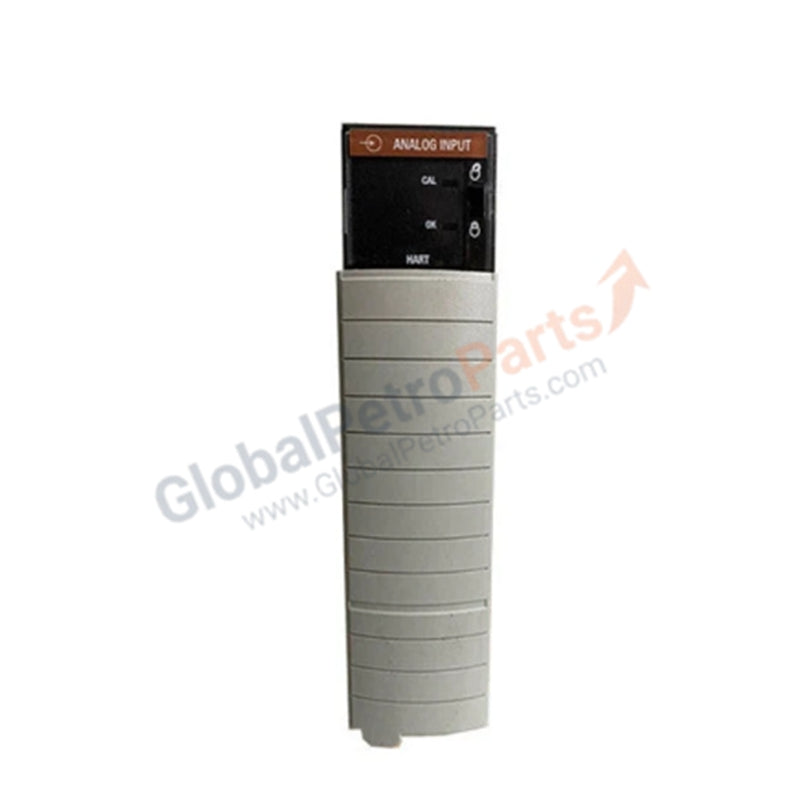

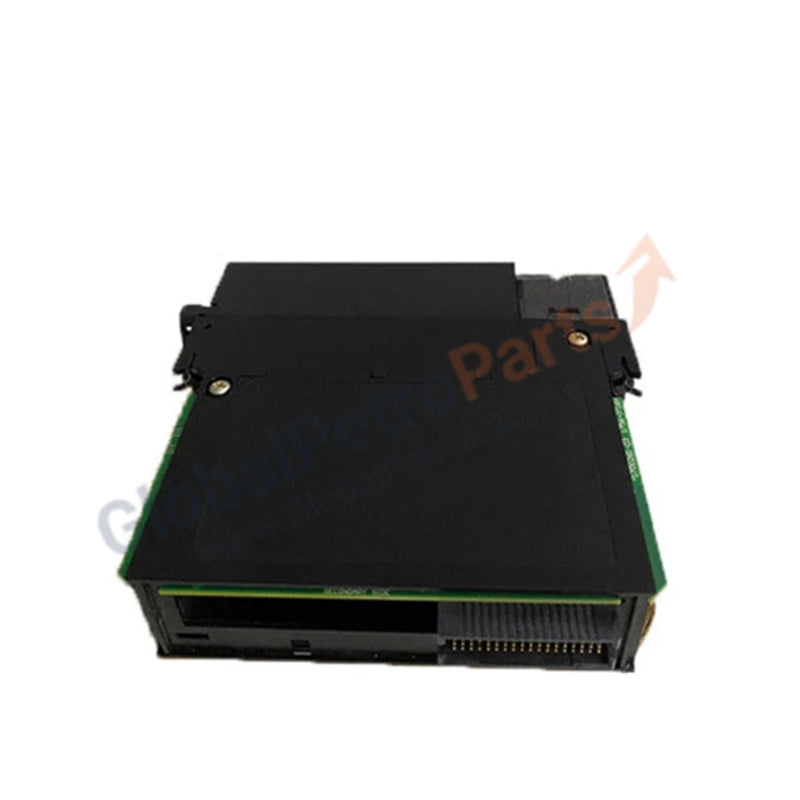

Allen Bradley 1756-IF8I ControlLogix 8-Channel Isolated Analog Input Module

Product Overview

The Allen Bradley 1756-IF8I functions as a high-performance, isolated analog input module for the ControlLogix platform. It provides eight individually isolated channels, allowing for simultaneous data acquisition from diverse field devices without ground loop interference. We supply this unit in 100% Brand New original packaging, ensuring peak precision for your mission-critical automation loops.

Technical Specifications

The module utilizes the Sigma-Delta conversion method to transform high-frequency low-resolution signals into high-resolution data for the controller.

Engineering Advantages

• Channel-to-Channel Isolation: The 1756-IF8I eliminates common-mode noise and prevents ground loops by isolating every channel. This architecture protects your ControlLogix backplane from field-side electrical surges.

• Hybrid Configuration: Engineers can configure any combination of voltage and current modes across the eight inputs. This flexibility allows one module to handle a mix of pressure transmitters, flow meters, and temperature sensors simultaneously.

• Enhanced Signal Integrity: The Sigma-Delta conversion method filters out high-frequency industrial noise, providing stable and accurate digital values even in electrically noisy environments near large motor drives.

• Sourcing Voltage Capability: With a sourcing voltage range of 20V to 36V DC, the module effectively powers two-wire transmitters directly, simplifying field wiring and reducing the need for external power supplies.

FAQs

• Does this module require a specific Removable Terminal Block (RTB)?

  Yes. You must use a compatible 36-pin RTB (such as the 1756-TBNH or 1756-TBSH) to connect field wiring. Ensure you seat the RTB firmly to maintain the module's open-style enclosure rating.

• Can I mix current and voltage inputs on the same module?

  Absolutely. The 1756-IF8I allows independent configuration for each channel. You can set Channel 0 for 4-20mA current while setting Channel 1 for a 0-10V signal without interference.

• How does the "Isolated" feature benefit my system compared to non-isolated modules?

  Standard modules share a common ground. If a fault occurs on one sensor, it can affect the entire module. The 1756-IF8I isolates each input, meaning a fault or ground loop on one field device remains contained and does not compromise the data integrity of the other seven channels.

• What is the status of this hardware?

  We guarantee this 1756-IF8I unit is 100% Brand New and original. It arrives in factory-sealed packaging with the latest hardware revision to ensure full compatibility with your existing ControlLogix chassis.
