Allen-Bradley 1756-L82ES ControlLogix 5580 GuardLogix Safety Controller

Product Overview

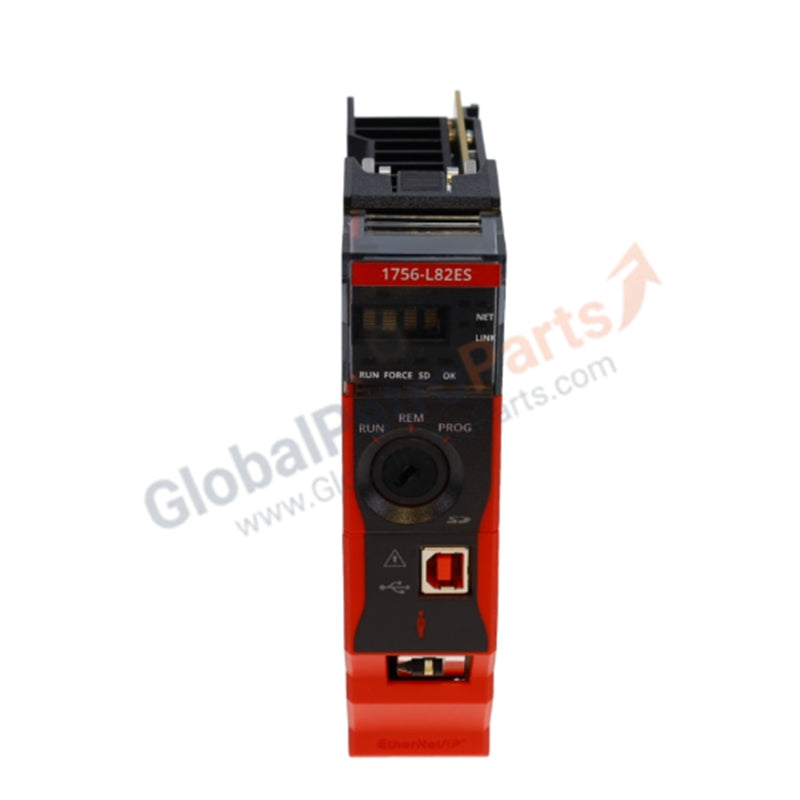

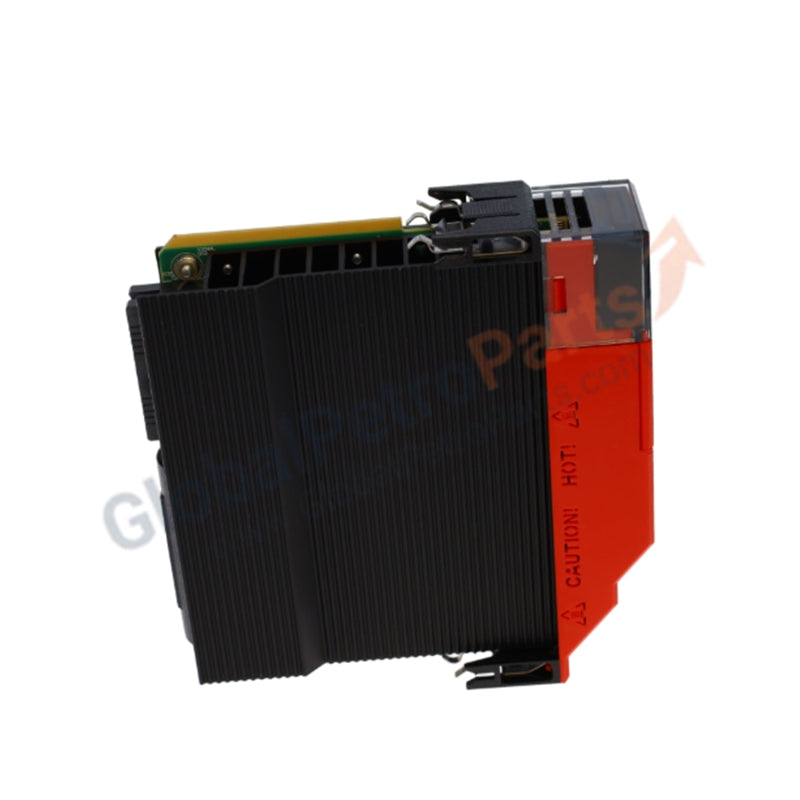

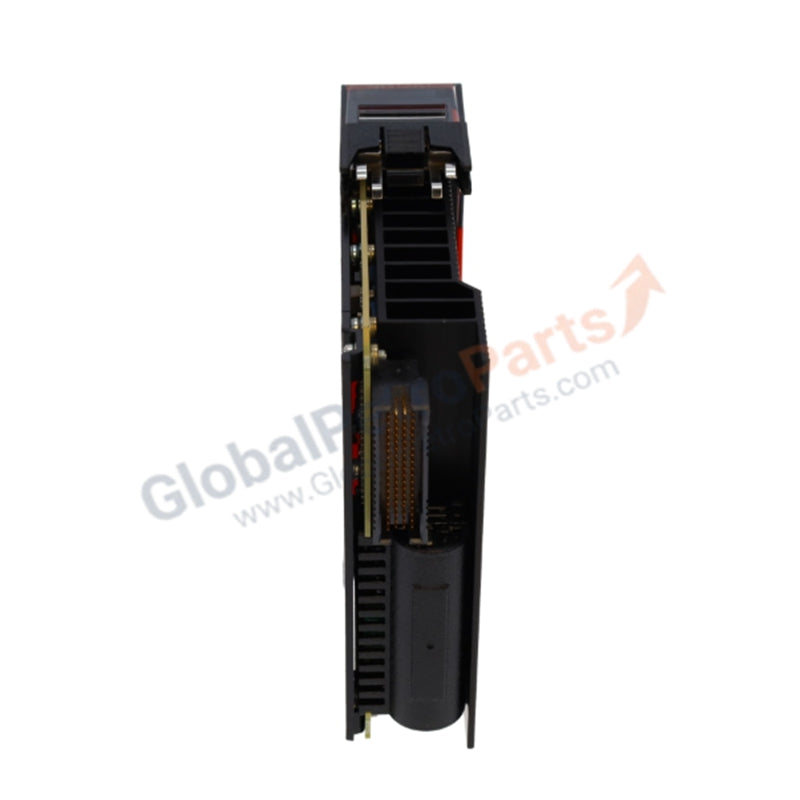

The Allen-Bradley 1756-L82ES functions as a high-performance GuardLogix 5580 safety controller designed for SIL3/PLe applications. This dual-purpose processor executes both standard and safety-related logic within a single chassis, eliminating the need for separate safety hardware. It provides significantly faster scan times and higher data throughput compared to previous generations, making it the primary choice for complex machine safety and coordinated motion control. We supply this unit as 100% Brand New and Original, ensuring your safety systems operate with uncompromised factory-certified firmware and hardware.

Technical Specifications

Engineering Advantages

• Unified Safety and Control Architecture: The 1756-L82ES hosts standard tasks and safety tasks on the same hardware. This reduces the physical footprint in the control cabinet and simplifies the programming environment by using a single software tag database.

• Gbps Communication Speed: The integrated 1-Gigabit Ethernet port manages high-speed data traffic across up to 175 nodes. This ensures the controller maintains low latency even when controlling high-axis-count motion systems and distributed safety I/O.

• Enhanced Memory Management: With 5MB of standard memory and a dedicated 2.5MB for safety, this controller handles large-scale code without performance degradation. The safety memory provides a restricted area for SIL3-certified code, preventing unauthorized changes to safety logic.

• Integrated Motion on EtherNet/IP: The processor supports CIP Safety and CIP Motion over the same cable. This allows engineers to implement "Safe Torque Off" and "Safe Limited Speed" functions directly through the network, slashing wiring complexity and labor costs.

FAQs

• Q: Does the 1756-L82ES require a separate safety partner module?

  A: No. Unlike older GuardLogix 5570 controllers that required a companion module, the 1756-L82ES uses a single-slot design. The internal multi-core architecture performs all safety self-check functions within the 1756-L82ES module itself.

• Q: Which software version supports this controller?

  A: You must use Studio 5000 Logix Designer. We recommend checking your specific firmware revision, but generally, GuardLogix 5580 controllers require version 31 or higher to access full safety and motion functionality.

• Q: Can I use the USB 2.0 port for permanent HMI communication?

  A: No. The USB 2.0 port serves specifically for local programming, firmware upgrades, and online editing. For permanent HMI or SCADA connections, use the integrated 1Gbps Ethernet port to ensure industrial-grade communication stability.

• Q: How does the alphanumeric display assist in troubleshooting?

  A: The 4-character display provides real-time fault codes and status updates. If the safety task trips, the display immediately scrolls the specific error code, allowing maintenance teams to identify the failure point without connecting a laptop.
