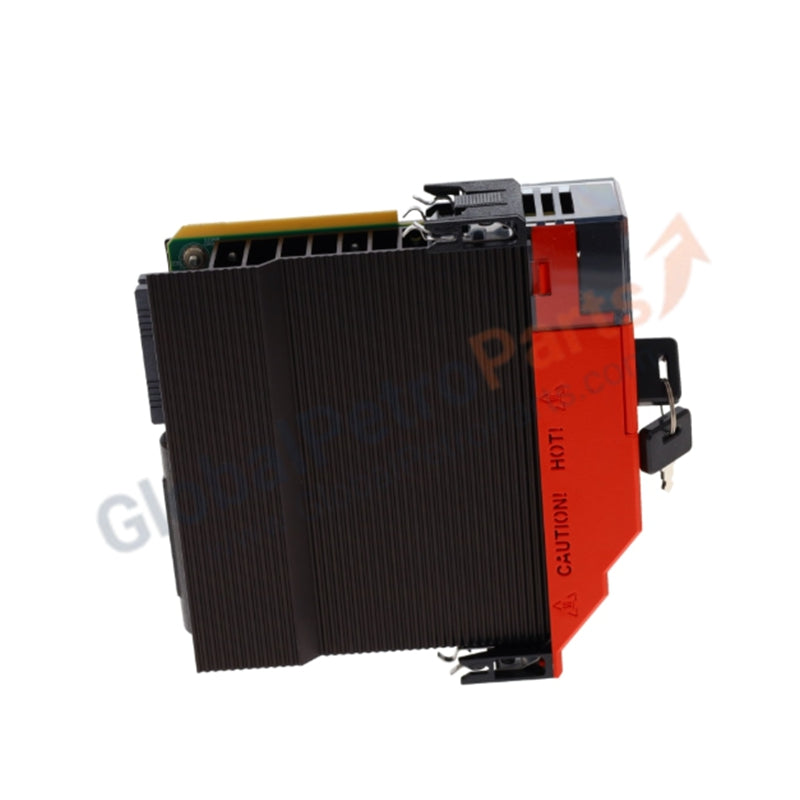

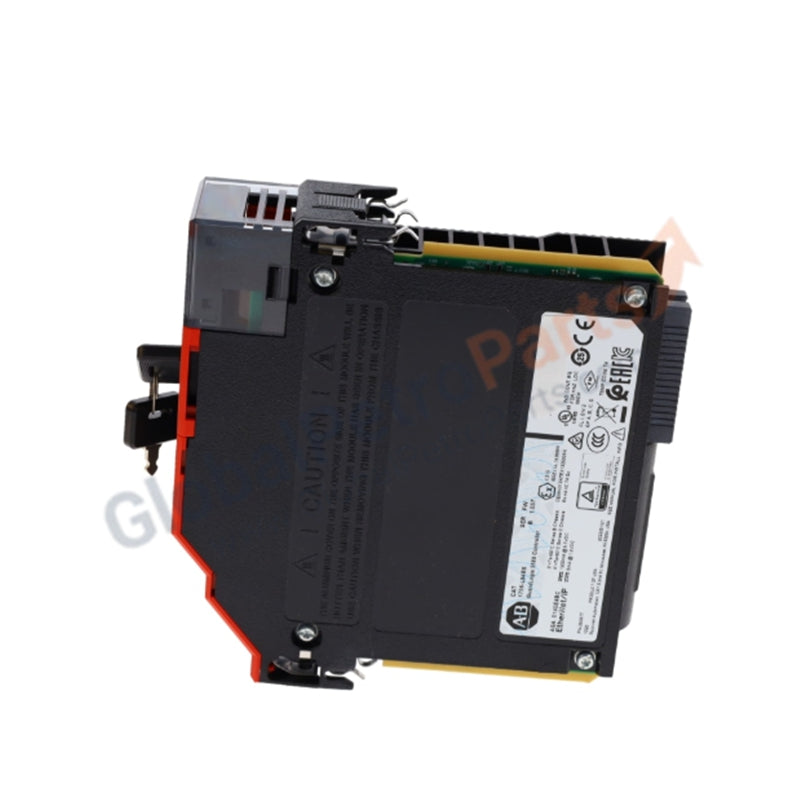

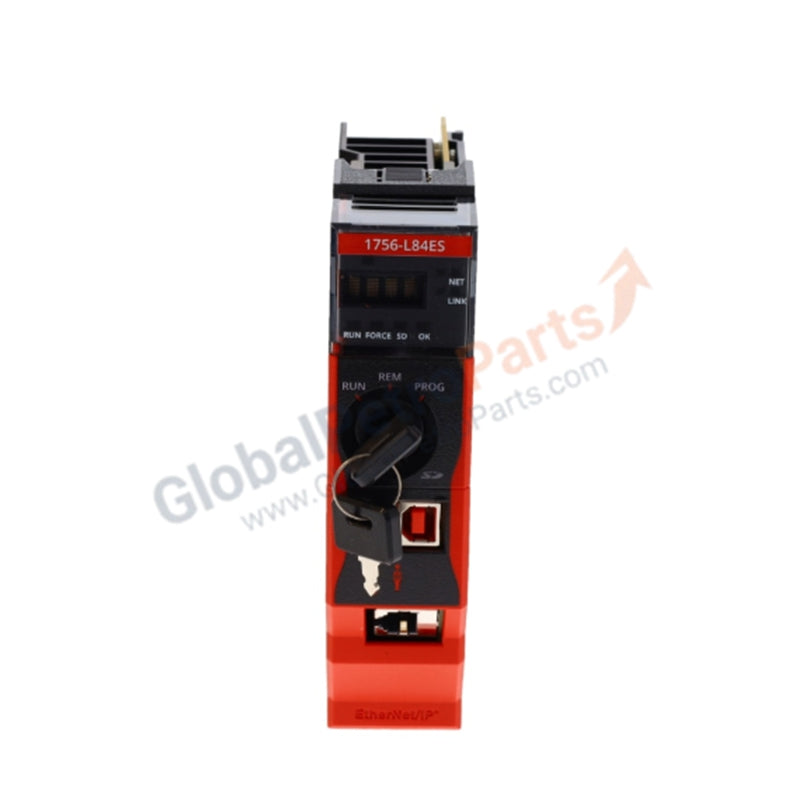

Allen Bradley 1756-L84ES ControlLogix GuardLogix 5580 Safety Controller

Product Overview

The Allen Bradley 1756-L84ES functions as a high-performance, flagship GuardLogix 5580 automation controller. This unit combines standard control and functional safety control within a single, unified ControlLogix chassis. It coordinates complex motion, high-speed discrete logic, and SIL 2/PLd or SIL 3/PLe safety algorithms across modern plant floors. This processor natively serves manufacturing lines, robotic cells, and automotive assembly plants requiring dense networking and high-capacity memory. We guarantee this unit arrives in 100% brand new, original factory-sealed packaging.

Technical Specifications

Engineering Advantages

• Massive Distributed Node Capacity: The integrated gigabit Ethernet port drives up to 250 EtherNet/IP nodes directly from the front of the processor. This embedded capability eliminates the need for separate network bridge modules, saving valuable chassis slot space and lowering hardware procurement costs.

• Dual-Zone Memory Isolation: The physical partition between the 20 MB standard memory and 6 MB safety memory protects critical safety routines. Standard logic adjustments or HMI communication spikes cannot overwrite or delay the dedicated 1-safety-task execution engine.

• Rapid Commissioning via High-Speed USB: The onboard 12 Mbps USB port allows engineering teams to perform direct firmware flashes, code downloads, and online diagnostics right at the machine enclosure without setting up complex IP routing or network permissions first.

• Scalable Safety Layering: The controller alone achieves SIL 2/PLd safety levels. To upgrade the machine safety architecture to SIL 3/PLe, engineers simply slide a 1756-L8SP safety partner module into the adjacent slot, bypassing the need to redesign the entire control panel layout.

FAQs

• Can this controller replace legacy GuardLogix 5570 processors like the 1756-L74S?

  Yes. The 1756-L84ES provides significantly faster execution speeds, an embedded Ethernet port, and increased memory. You can migrate your existing Studio 5000 projects by changing the controller type in the software properties.

• Does the 1756-L84ES support high-availability runtime controller redundancy?

  No. This specific safety model does not support controller redundancy configuration. If your process requires hot-backup redundancy, you must specify standard 5580 controllers with redundancy-compatible firmware.

• What is the installation rule for achieving SIL 3/PLe safety with this module?

  You must install a compatible safety partner module (1756-L8SP or the conformal-coated 1756-L8SPK) into the chassis slot immediately to the right of the 1756-L84ES controller.

• Does this unit contain a battery that requires field maintenance?

  No. The GuardLogix 5580 family utilizes an embedded energy storage module to write memory contents to non-volatile storage during power losses, removing the need for lithium battery maintenance and disposal programs.
