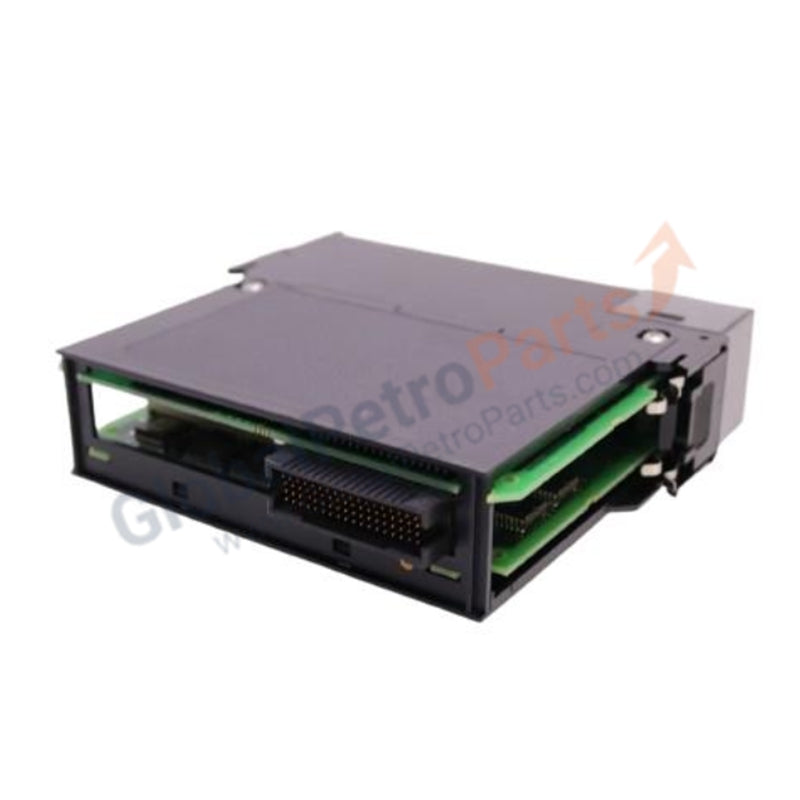

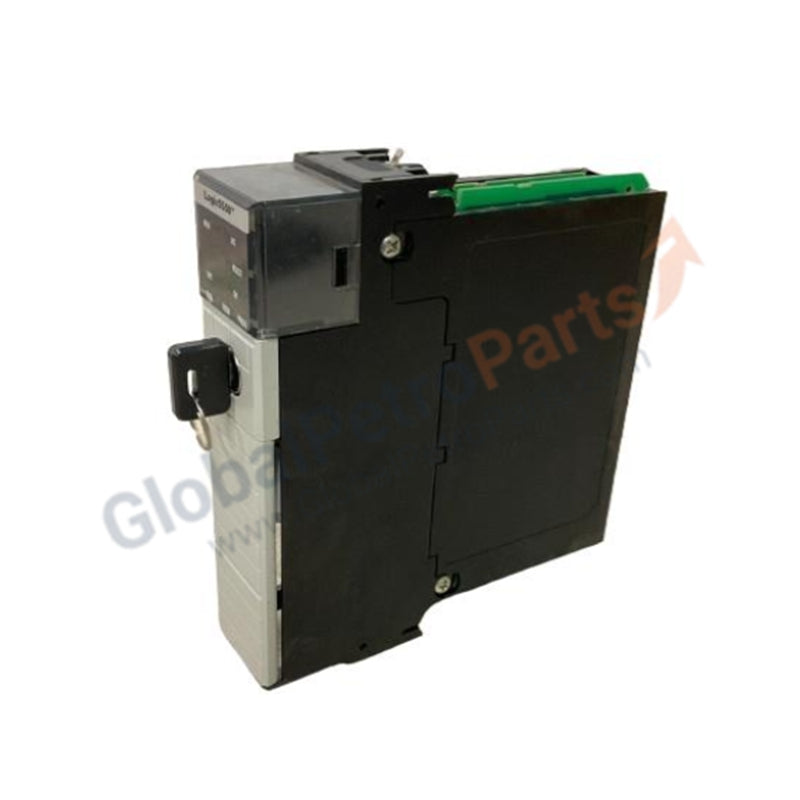

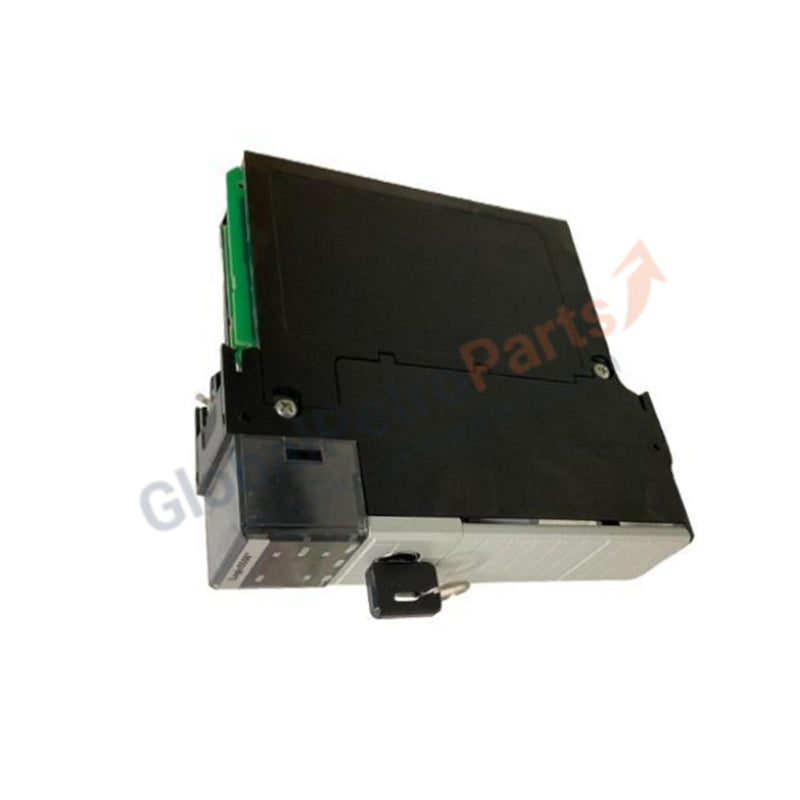

Allen-Bradley 1756-M2 Expansion Memory Module

The Allen-Bradley 1756-M2, also cataloged as the 1756-M2 Expansion Memory Module, operates as a dedicated hardware component for additional non-volatile data storage within ControlLogix PLC platforms. This module provides 1 MB of memory capacity to augment the primary processor memory, facilitating the execution of complex control logic and the storage of expanded tag databases.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 1756-M2 module integrates into the ControlLogix backplane to support consistent data accessibility during high-speed control cycles. While the module is primarily tasked with memory expansion, its interaction with the backplane bus communication velocity is critical for maintaining deterministic scan times. Users must ensure that firmware flash compatibility is aligned between the 1756-M2 and the host controller to prevent memory mapping conflicts or data synchronization latency during controller power-up sequences. Proper bus termination and module seating are required to prevent intermittent bus errors in high-density rack configurations.

Frequently Asked Questions

Q: Can the 1756-M2 be hot-swapped while the ControlLogix chassis is powered?

A: No. Memory modules must not be inserted or removed while the controller is energized. Inserting the module into an active backplane can cause electrical faults and potential corruption of the non-volatile memory structure.

Q: How is the memory capacity recognized by the controller?

A: The controller automatically detects the 1756-M2 upon power-up initialization. Ensure the controller firmware version supports the specific memory expansion capacity of the 1756-M2 to prevent system faults.

Field Installation Guidelines

• Physical Mounting: Insert the module into the ControlLogix chassis slot using the alignment guides. Ensure the locking latch is fully engaged to secure the module against the backplane connector.
• Environmental Control: Maintain the ambient operating temperature between 0 and 60 deg C. Provide adequate airflow within the cabinet to prevent thermal derating of the internal memory components.
• Humidity Management: The module is rated for 5 to 95 % relative humidity, non-condensing. In environments with high humidity, verify that the cabinet enclosure maintains the appropriate NEMA/IP rating to prevent moisture accumulation on the exposed PCB.
• Vibration Mitigation: Ensure the chassis is rigidly mounted to a vibration-dampened surface. While the module is rated for 2 G vibration, verify that cabinet-level components are secured to minimize resonant frequencies during operation.
