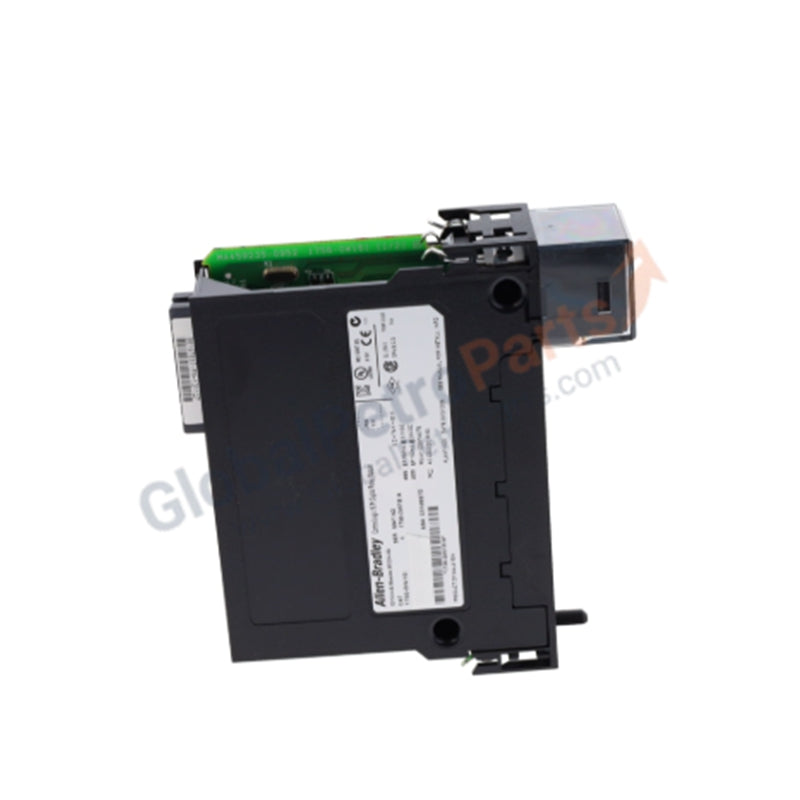

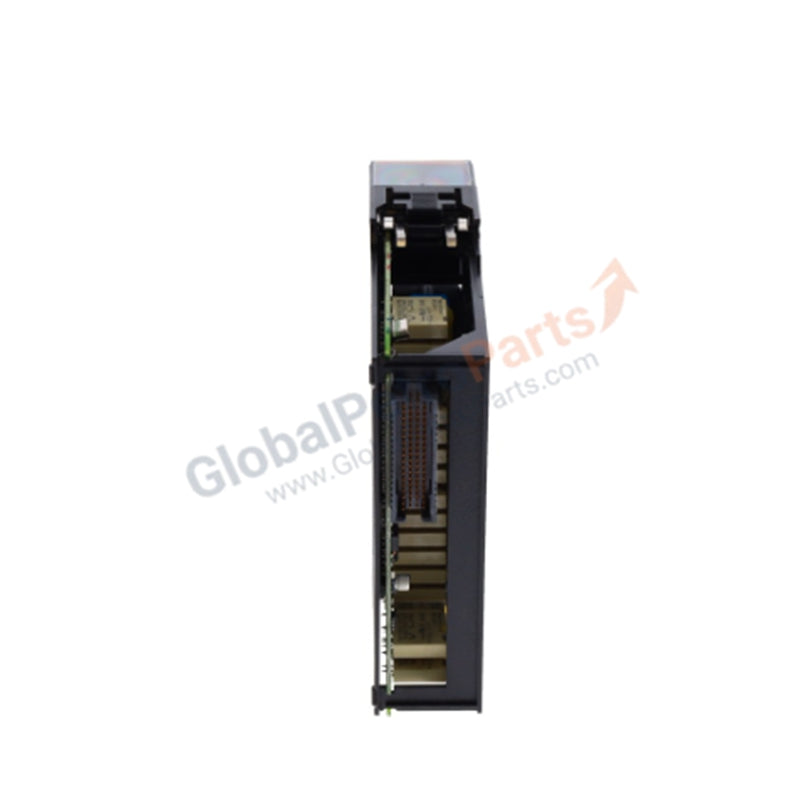

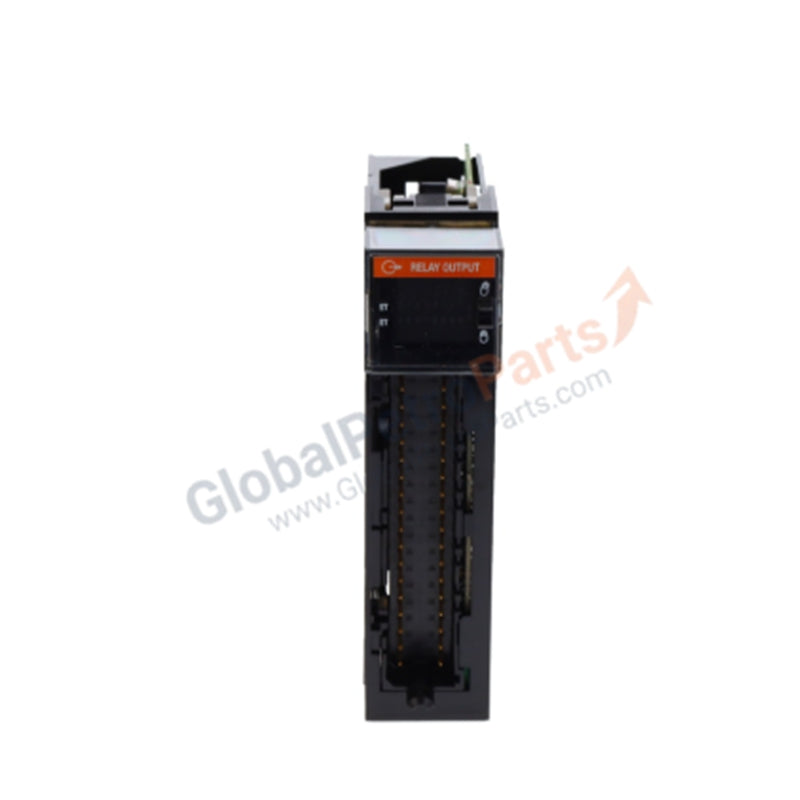

Allen Bradley 1756-OW16I | ControlLogix 16-Channel Isolated Digital Output Module

Product Description

The Allen Bradley 1756-OW16I is a ControlLogix discrete output module designed to provide sixteen individually isolated channels. Each channel uses normally open (N.O.) contacts, supporting both AC and DC voltage ranges for flexible application in industrial automation. With robust current ratings, low signal delay, and removable terminal block options, the module ensures reliable switching performance across diverse control environments.

Technical Specifications

• Manufacturer Allen Bradley

• Product Line ControlLogix 1756 Series

• Product Type Digital Output Module

• Part Number 1756-OW16I

• Weight 1.00 lbs (0.45 kg)

• Outputs 16 individually isolated channels

• Contact Form Normally Open (N.O.)

• Operating Voltage Range

• DC: 5–125 V

• AC: 10–240 V

• Output Current Ratings

• 1 A @ 5–30 V DC

• 0.5 A @ 48 V DC

• 0.22 A @ 125 V DC

• 1.5 A @ 120 V AC (50/60 Hz)

• 0.75 A @ 240 V AC (50/60 Hz)

• Signal Delay

• OFF to ON: ≤10 ms

• ON to OFF: ≤10 ms

• Backplane Current Load

• 150 mA @ 5.1 V DC

• 150 mA @ 24 V DC

• Power Dissipation 4.5 W @ 60 °C (140 °F)

• Thermal Dissipation 15.4 BTU/hr

• Isolation Voltage 50 V continuous

• Terminal Blocks Supported 1756-TBCH, 1756-TBS6H

• Enclosure Type Open-style

Application Scenarios

• Switching AC and DC loads in ControlLogix automation systems

• Machine-level control requiring isolated outputs for safety and reliability

• Distributed control systems with mixed voltage requirements

FAQ

Q: How many outputs does the 1756-OW16I provide?  A: Sixteen individually isolated channels.

Q: What is the maximum output delay time?  A: 10 milliseconds for both ON and OFF transitions.

Q: Which terminal blocks are compatible?  A: 1756-TBCH and 1756-TBS6H removable terminal blocks.

Comparable Models

• 1756-OW16I: 16-channel isolated output module (this model)

• 1756-OB32: 32-point DC output module

• 1756-OW8: 8-channel relay output module
