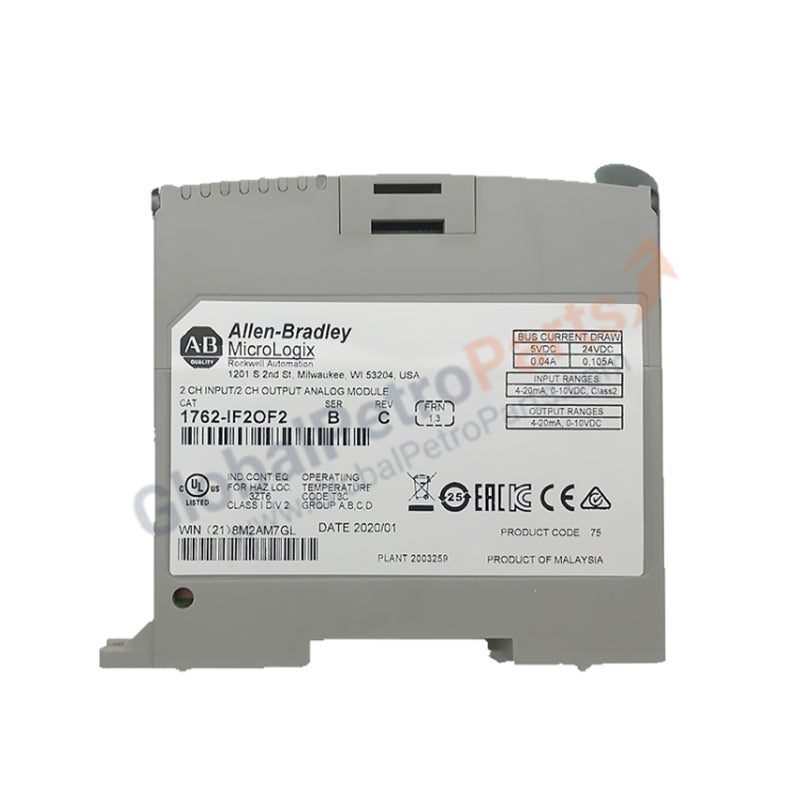

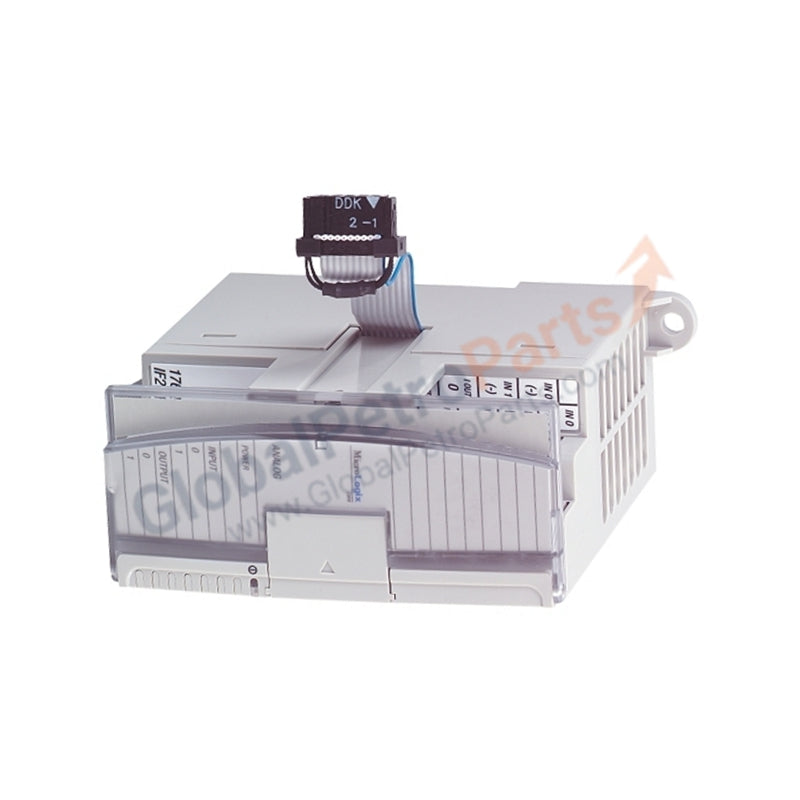

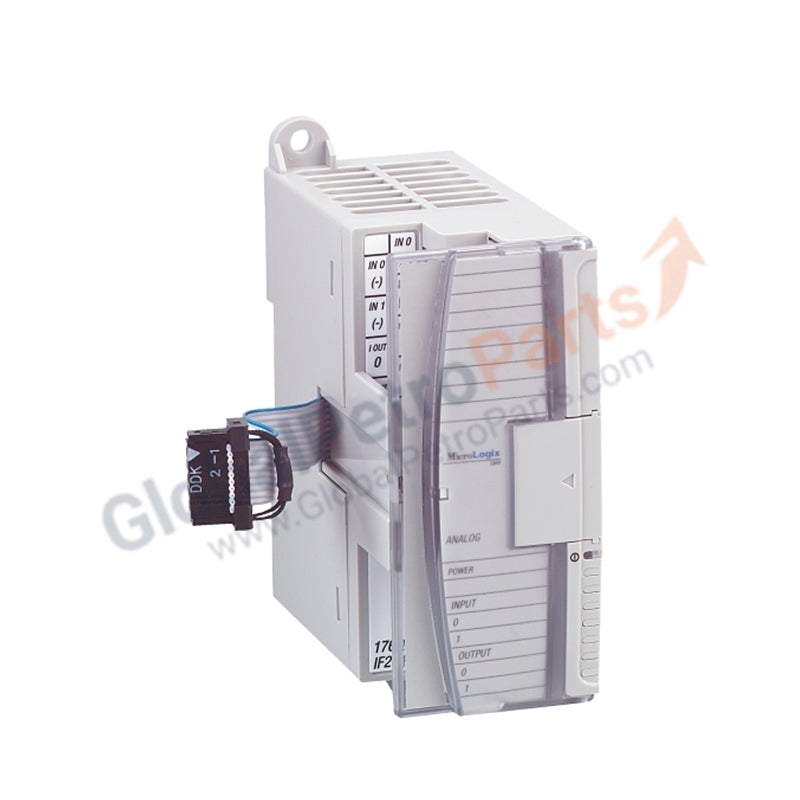

Allen-Bradley 1762-IF2OF2 MicroLogix 1200 4-Point Analog Combination Module

Product Description

The 1762-IF2OF2 module from Allen-Bradley is a compact analog input/output combination unit designed for the MicroLogix 1200 series. It provides two analog input channels and two analog output channels, supporting both voltage and current signals. With 12-bit resolution, integrated diagnostics, and flexible mounting options, this module is ideal for applications requiring precise analog measurement and control in industrial automation systems.

Technical Specifications

• Manufacturer: Allen-Bradley

• Part Number: 1762-IF2OF2

• Product Line: MicroLogix 1200

• Product Type: Analog Input/Output Module

• UPC: 612598207190

• Weight: 0.31 lbs (0.14 kg)

• Inputs: 2 analog voltage/current channels

• Outputs: 2 analog voltage/current channels

• Voltage Range: 0–10 V DC

• Current Range: 4–20 mA

• Converter Type (Input): Successive Approximation

• Converter Type (Output): Resistor String DAC

• Resolution: 12-bit

• Diagnostics: Over-range/under-range bit reporting, process alarms

• Operating Temperature: -20 to +55 °C (-4 to +131 °F)

• Storage Temperature: -40 to +85 °C (-40 to +185 °F)

• Mounting: DIN rail or panel mount

Key Features

• Dual Functionality: Combines input and output channels in one module

• High Accuracy: 12-bit resolution for precise measurement and control

• Integrated Diagnostics: Provides alarms for process monitoring and error detection

• Compact Design: Lightweight and easy to install in control panels

• Flexible Signal Support: Handles both voltage and current signals

Application Scenarios

• Process control systems requiring both analog input and output

• Manufacturing automation with MicroLogix controllers

• Energy monitoring and distribution systems

• Industrial environments needing compact analog I/O solutions

FAQ

Q: How many channels does the 1762-IF2OF2 provide?  A: It offers two analog input channels and two analog output channels.

Q: What signal ranges are supported?  A: Voltage signals from 0–10 V DC and current signals from 4–20 mA.

Q: What type of converter is used?  A: Successive Approximation for inputs and Resistor String DAC for outputs.

Comparison with Similar Models

• 1762-IF4: Four analog input channels only

• 1762-OF4: Four analog output channels only

• 1762-IF2OF2: Combination of 2 inputs and 2 outputs
