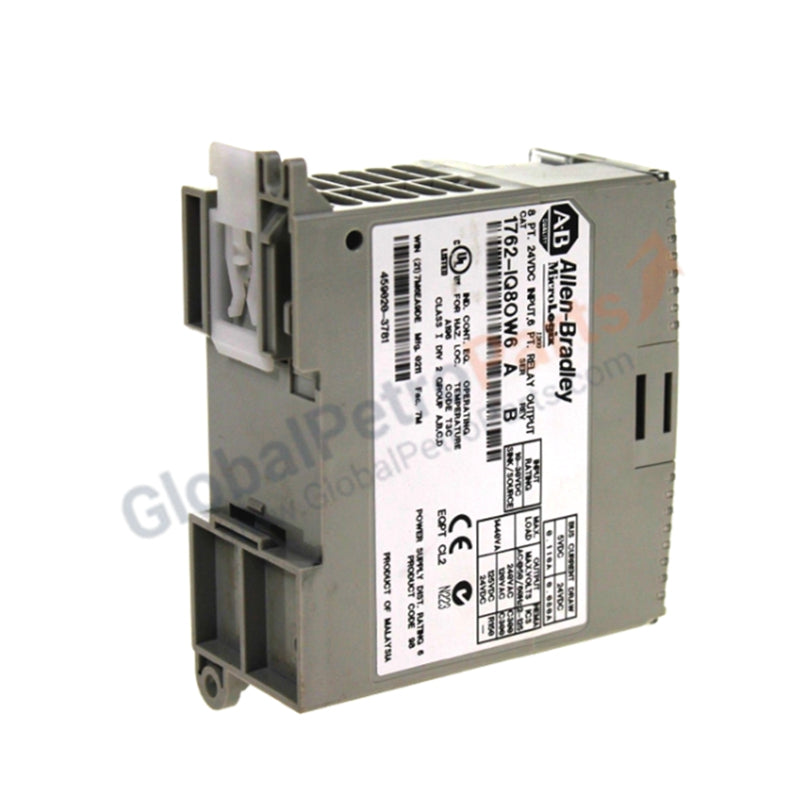

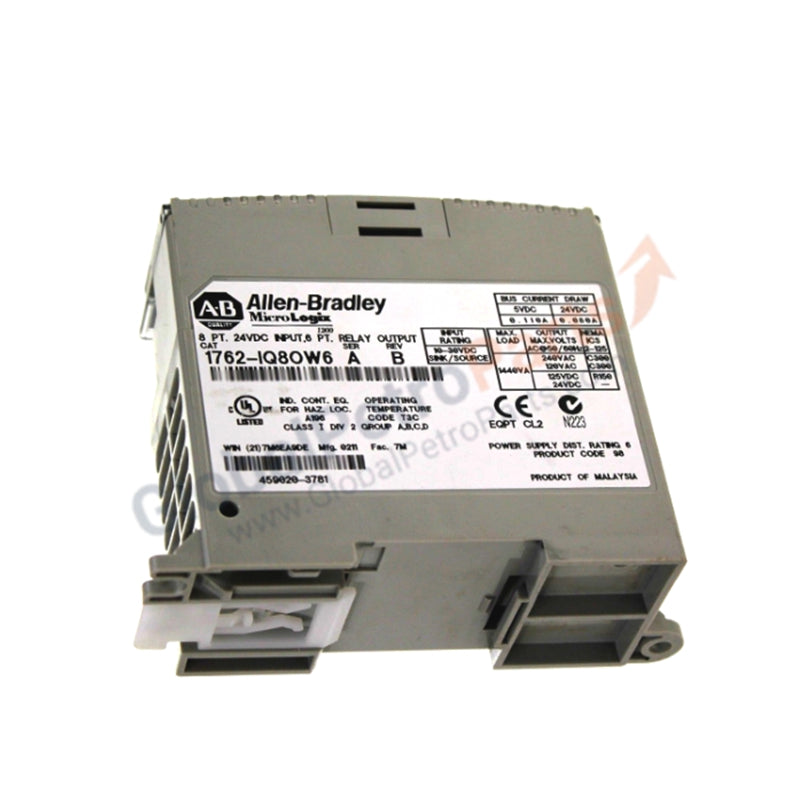

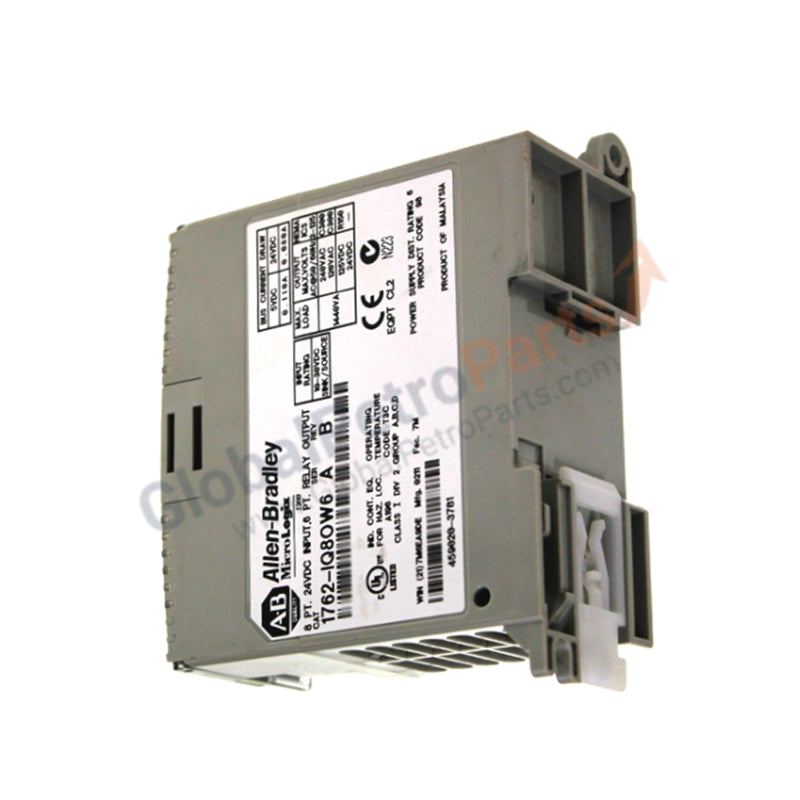

Allen-Bradley 1762-IQ8OW6 MicroLogix 8-Input / 6-Output Combination Module

Product Description

The Allen-Bradley 1762-IQ8OW6 is a combination I/O module from the MicroLogix 1200 series, designed to integrate both digital inputs and relay outputs in a single compact unit. With eight DC inputs and six relay outputs, this module provides flexible control capability while minimizing panel space. It supports a wide operating voltage range and is engineered for reliable switching in industrial automation environments.

Key Features

• Manufacturer: Rockwell Automation

• Brand: Allen-Bradley

• Model Number: 1762-IQ8OW6

• Series: MicroLogix 1200 (Bulletin 1762)

• Type: Combination I/O Module

• Inputs:

• 8 DC inputs (sink/source)

• Divided into 2 groups, 4 channels per group

• Nominal input voltage: 24 VDC

• Input voltage range: 10–30 VDC

• Outputs:

• 6 relay outputs, normally open (N.O.) contacts

• Operating voltage: 5–265 V AC, 5–125 V DC

• Contact ratings: 2.5 A @ 240/120 VAC, 1.0 A @ 125 VDC, 2.0 A @ 24 VDC

• Input Power: 24 VDC

• Mounting Style: DIN rail installation

• Weight: 0.44 lbs (≈ 0.20 kg)

Application Scenarios

• Compact Control Systems: Combines input and output functions in one module, reducing hardware requirements

• Industrial Automation: Suitable for mixed signal applications requiring both DC inputs and relay outputs

• Panel Space Optimization: Ideal for installations where space efficiency is critical

• Flexible Integration: Compatible with MicroLogix expansion I/O for scalable system design

FAQ

Q: How many inputs and outputs does the 1762-IQ8OW6 provide?  A: It offers 8 DC inputs and 6 relay outputs.

Q: What is the input voltage range?  A: The inputs operate between 10–30 VDC, with a nominal rating of 24 VDC.

Q: What is the maximum contact rating for outputs?  A: 2.5 A at 240/120 VAC, 1.0 A at 125 VDC, and 2.0 A at 24 VDC.

Q: How does it compare to the 1762-OB16 output module?  A: The 1762-IQ8OW6 combines inputs and relay outputs in one unit, while the 1762-OB16 provides only solid-state DC outputs, making it better suited for high-density digital output applications.
