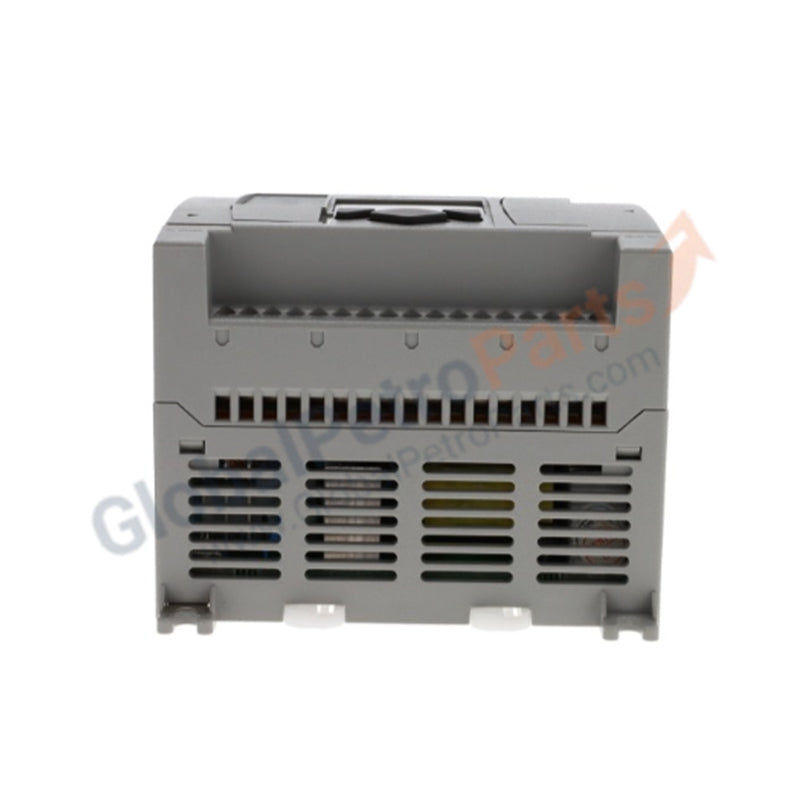

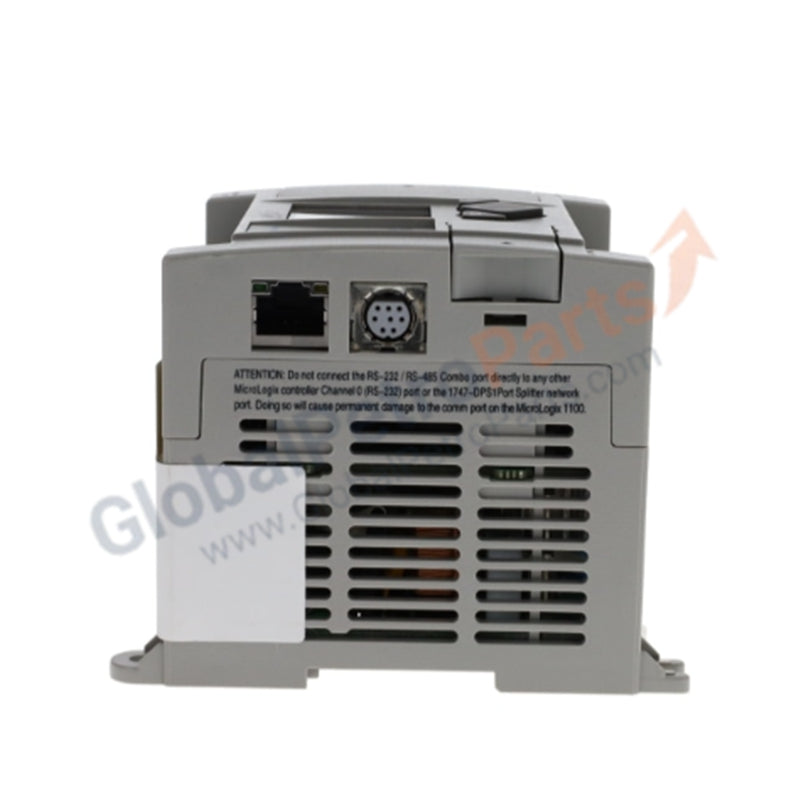

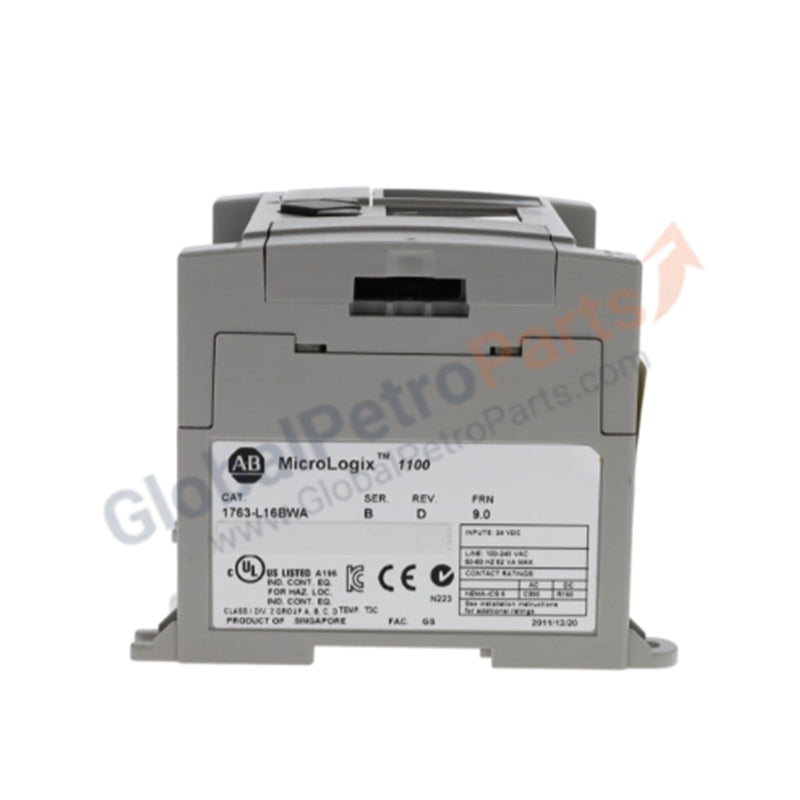

Allen-Bradley 1763-L16BWA MicroLogix PLC Controller, Panel/DIN Mount

Product Description

The Allen-Bradley 1763-L16BWA is a compact PLC controller from the MicroLogix family, designed for small to mid-sized automation systems. With integrated memory, multiple digital inputs, and flexible mounting options, it provides reliable control in distributed applications. Its dual mounting capability (DIN rail or panel mount) allows easy installation in diverse environments, while its lightweight design ensures efficient use of space.

Key Features

• Manufacturer: Rockwell Automation

• Brand: Allen-Bradley

• Model Number: 1763-L16BWA

• Type: PLC Logic Controller

• Memory Capacity: 8 KB (4 KB program, 4 KB data)

• Digital Inputs: 10 points

• Supply Voltage: 120/240 VAC

• Dimensions:

• Height: 90 mm (3.54 in.)

• Width: 110 mm (4.33 in.)

• Depth: 87 mm (3.42 in.)

• Mounting Options: DIN rail or panel mount

• Weight: 1.75 lbs (≈ 0.79 kg)

Application Scenarios

• Compact Control Systems: Ideal for small-scale automation requiring integrated PLC functionality

• Panel Installations: Flexible mounting options for space-constrained enclosures

• Process Control: Suitable for distributed applications in manufacturing and energy sectors

• Legacy Compatibility: Designed for MicroLogix series integration

FAQ

Q: What is the memory capacity of the 1763-L16BWA?  A: It provides 8 KB total (4 KB program, 4 KB data).

Q: How many digital inputs are supported?  A: The module supports 10 digital inputs.

Q: What mounting options are available?  A: It can be mounted on DIN rails or directly on panels.

Q: How does it compare to the 1763-L16AWA model?  A: The 1763-L16BWA operates on 120/240 VAC supply, while the 1763-L16AWA offers different input/output configurations tailored for specific applications.
