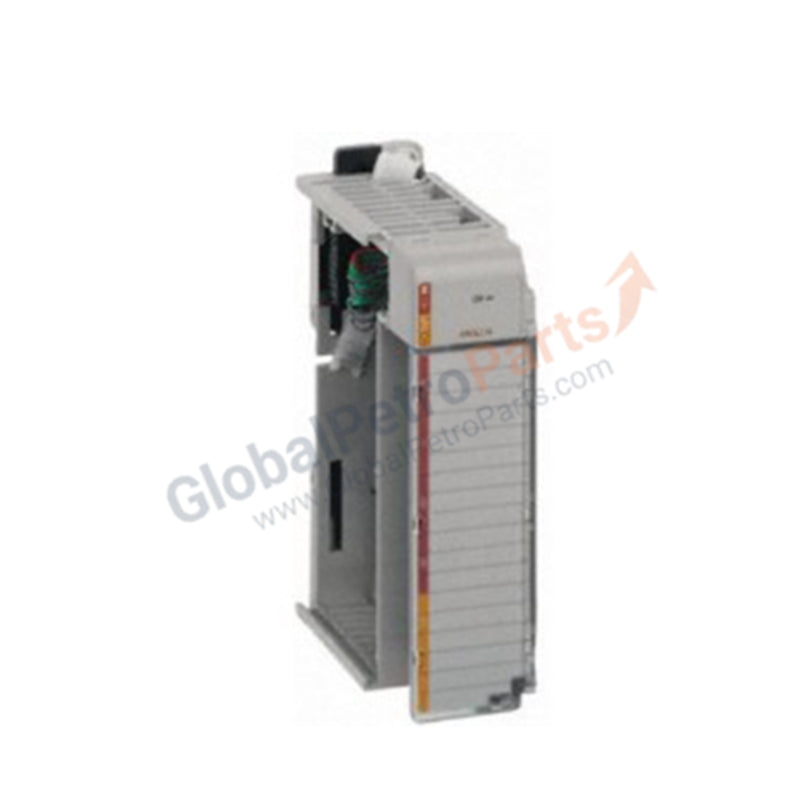

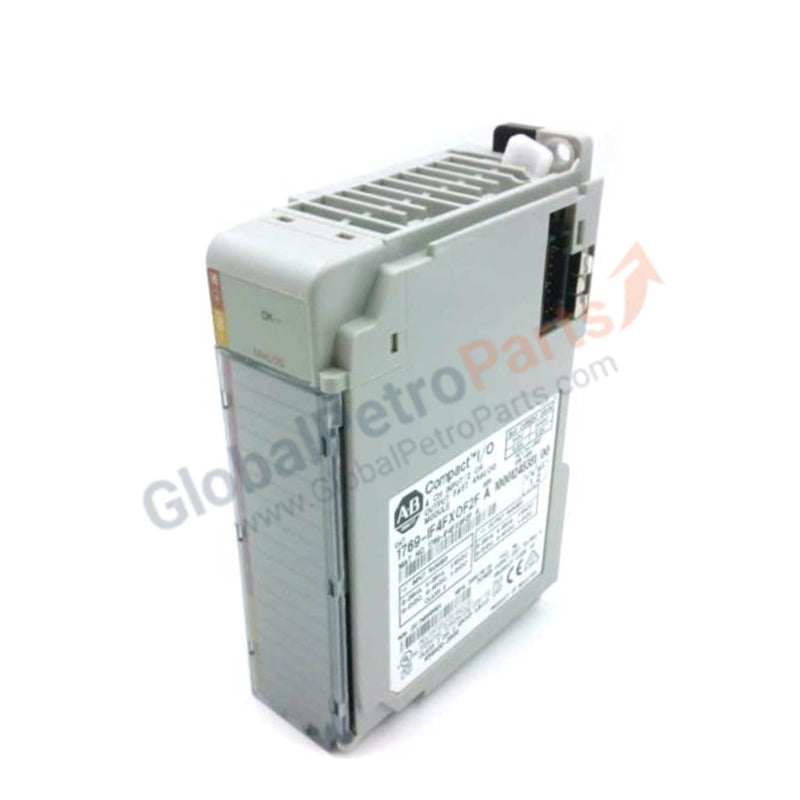

Allen-Bradley 1769-IF4FXOF2F CompactLogix High-Speed Combination Analog I/O Module

Product Overview

The 1769-IF4FXOF2F functions as a premier high-speed combination analog module within the Allen-Bradley Compact I/O family. It integrates four fast-response analog inputs and two fast-response analog outputs into a single-slot footprint. This module targets precision-critical applications requiring rapid signal conversion and minimal loop latency. We offer this unit as 100% Brand New, ensuring the highest level of factory-calibrated accuracy for your mission-critical control loops.

Technical Specifications

Engineering Advantages

• High-Speed Loop Performance: The "F" suffix denotes "Fast" performance. The module utilizes advanced Delta-Sigma converters to deliver rapid update rates, significantly reducing the phase shift in PID loops and improving response times for high-speed motion or pressure transients.

• Versatile Channel Configuration: Engineers configure each input channel independently for voltage or current. This flexibility allows the 1769-IF4FXOF2F to interface with a mix of sensors, such as 4-20mA pressure transmitters and ±10V position sensors, without requiring separate specialized modules.

• Enhanced Signal Integrity: Differential input capability provides superior common-mode noise rejection. This feature protects sensitive analog data from the electromagnetic interference (EMI) typically generated by nearby variable frequency drives (VFDs) and heavy switchgear.

• Efficient Rack Utilization: By combining 4 inputs and 2 outputs in a single slot, this module reduces the total physical width of the CompactLogix rack. This compact design solves the challenge of installing high-functionality control in shallow or space-constrained electrical enclosures.

FAQs

How does the 1769-IF4FXOF2F handle signal noise differently than standard modules?

The module utilizes a Delta-Sigma converter architecture which inherently provides superior digital filtering. For environments with high electrical noise, configuring the inputs as "Differential" instead of "Single-ended" further cancels out induced voltages on the signal leads.

What power supply considerations apply to this module?

The 1769-IF4FXOF2F draws a significant 1.4 Amps at 24V DC. You must verify that your 1769 power supply (e.g., 1769-PA2 or PB4) has sufficient capacity to handle this load, especially when using multiple high-speed analog modules in one bank.

Can I replace a standard 1769-IF4XOF2 with this fast version?

Yes, but you must update the I/O configuration in your Studio 5000 or RSLogix 5000 project. While the wiring footprint remains compatible, the controller must recognize the "Fast" identity and specific bit resolution of the 1769-IF4FXOF2F to process data correctly.

What is the significance of the Power Supply Distance Rating of 8?

This rating dictates that the 1769-IF4FXOF2F must stay within 8 slots of the system power supply. Placing the module further than 8 slots away risks voltage drops across the backplane, which can degrade the precision of the 14-bit analog conversions.
